Siemens SIPROTEC 5 Series User Manual

Surface-Mounted Devices with Detached On-Site Operation Panel
Description
i
i
NOTE
The basic device structure is described in chapter 2.1.1 Description .
The surface-mounting devices with detached on-site operation panel are a variant of the surface-mounting
devices with an integrated on-site operation panel. The essential difference is that you can fit the on-site oper-
ation panel separately from the device. The distance frames are not assembled in this device type.
Base Module
The distance between the installation location of the device and that of the on-site operation panel is limited
to not more than 5 m (196.85 in) by the length of the connecting cable. The on-site operation panel must be
grounded.
[le_device mounting base module, 1, --_--]

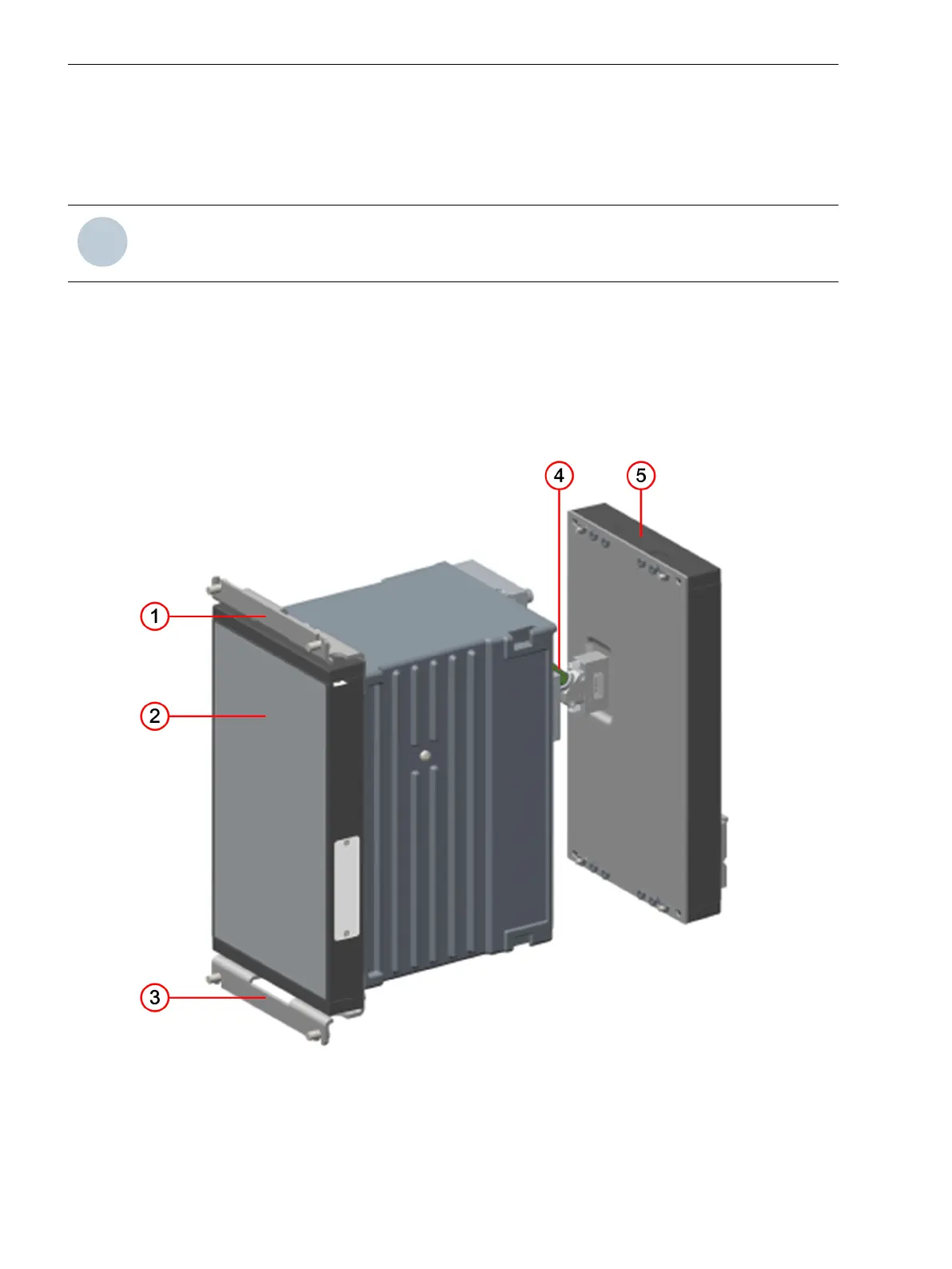

Figure 2-16
Device Structure of the Base Module
(1) Top fixing bracket
(2) Cover
(3) Bottom fixing bracket
2.3
2.3.1
Forms of Devices and On-Site Operation Panels
2.3 Surface-Mounted Devices with Detached On-Site Operation Panel
34 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
