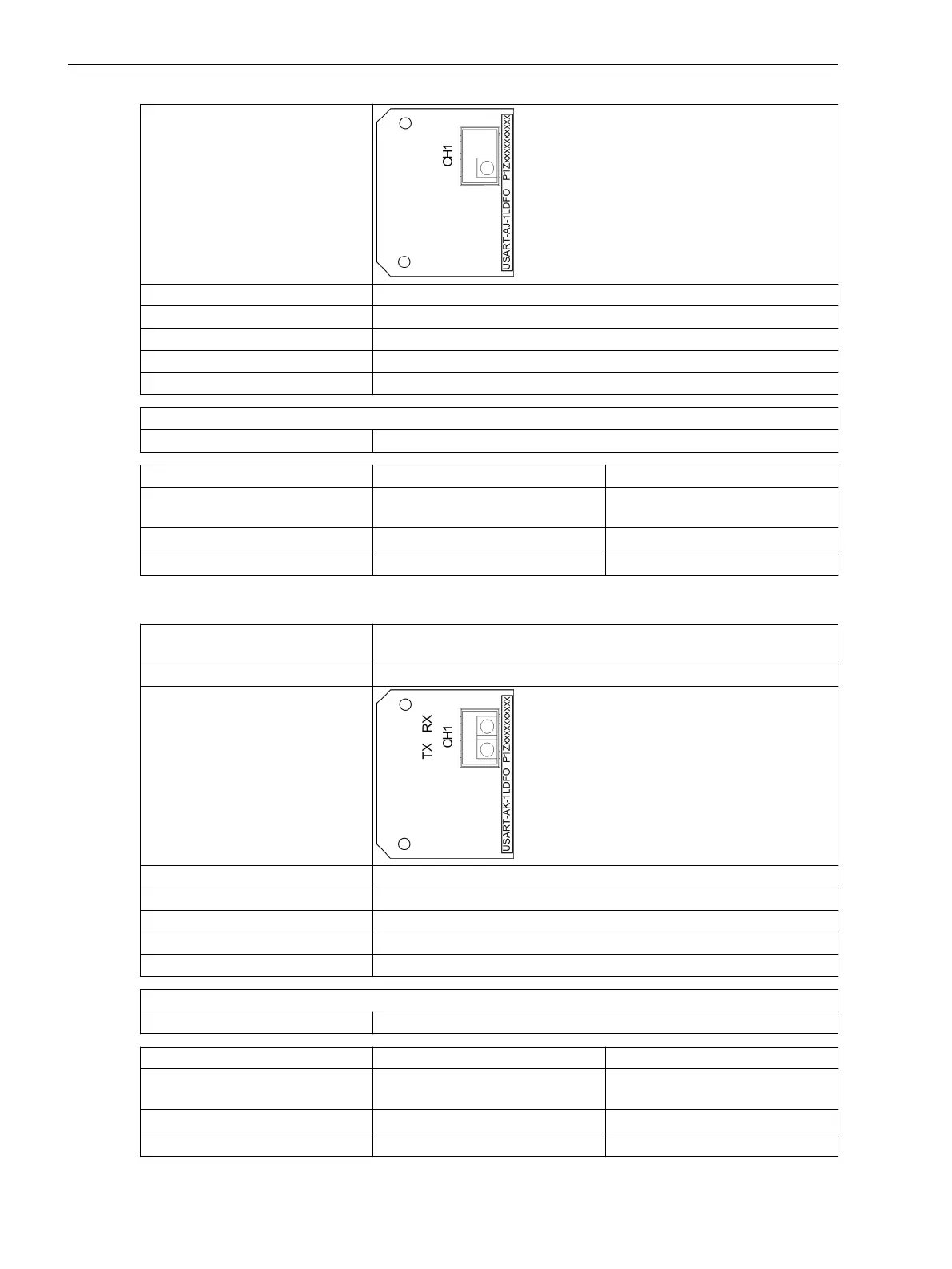

Siemens SIPROTEC 5 Series

Figure
Connector type 1 x LC Simplex
Wavelength λ = 1550 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. line length 40 km for singlemode optical fibers
Distance 40 km
Laser class 1 as per EN 60825-1/-2 With the use of 9 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in
singlemode optical fibers
-8.0 dBm
avg
-3.0 dBm
avg
Receiver sensitivity -33.0 dBm
avg
-38.0 dBm
avg
Optical budget 25.0 dB –
USART-AK-1LDFO
Description
Protection-interface module for synchronous operation with an optical
interface
Product code P1Zxxxxxxxxxx
Figure
Connector type 1 x duplex LC
Wavelength λ = 1550 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. line length 100 km for singlemode optical fibers
Distance 100 km
Laser class 1 as per EN 60825-1/-2 With the use of 9 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in the
singlemode optical fiber
-5.0 dBm
avg
-0.0 dBm
avg
Receiver sensitivity -34.0 dBm
avg
-34.05 dBm
avg
Optical budget 29.0 dB –
4.2.4.6
Plug-In Modules
4.2 Communication Modules
142 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
