Siemens SIPROTEC 5 Series

Terminals
Overview of Terminals
[dw_io111, 1, --_--]

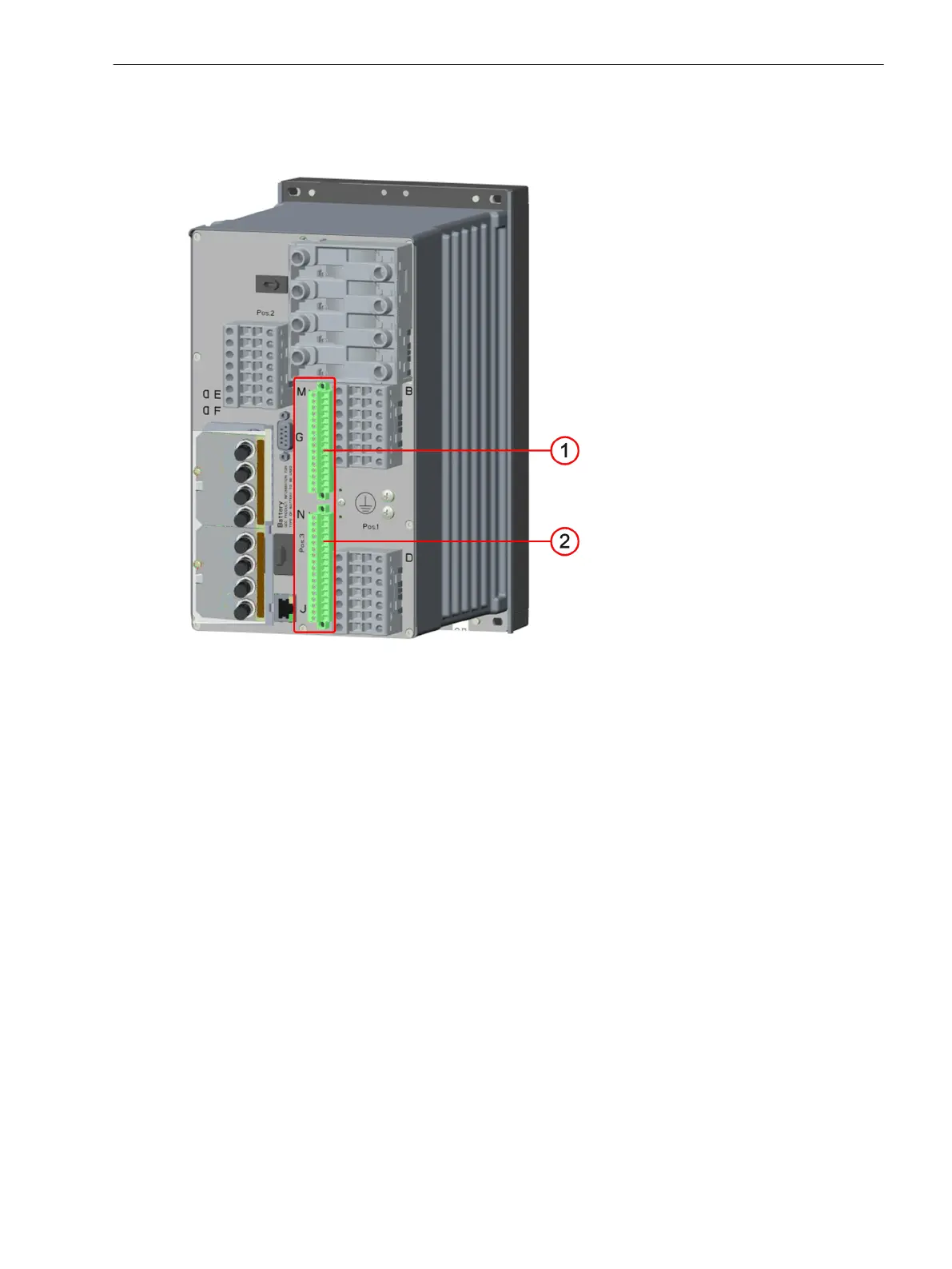

Figure 3-77
IO111 – Connections
(1) Terminal M
(2) Terminal N
3.4.6.2
Electronic Modules
3.4 Input and Output Modules of the Non-Modular Devices (7xx82)
SIPROTEC 5, Hardware Description, Manual 121
C53000-G5040-C002-C, Edition 10.2017
