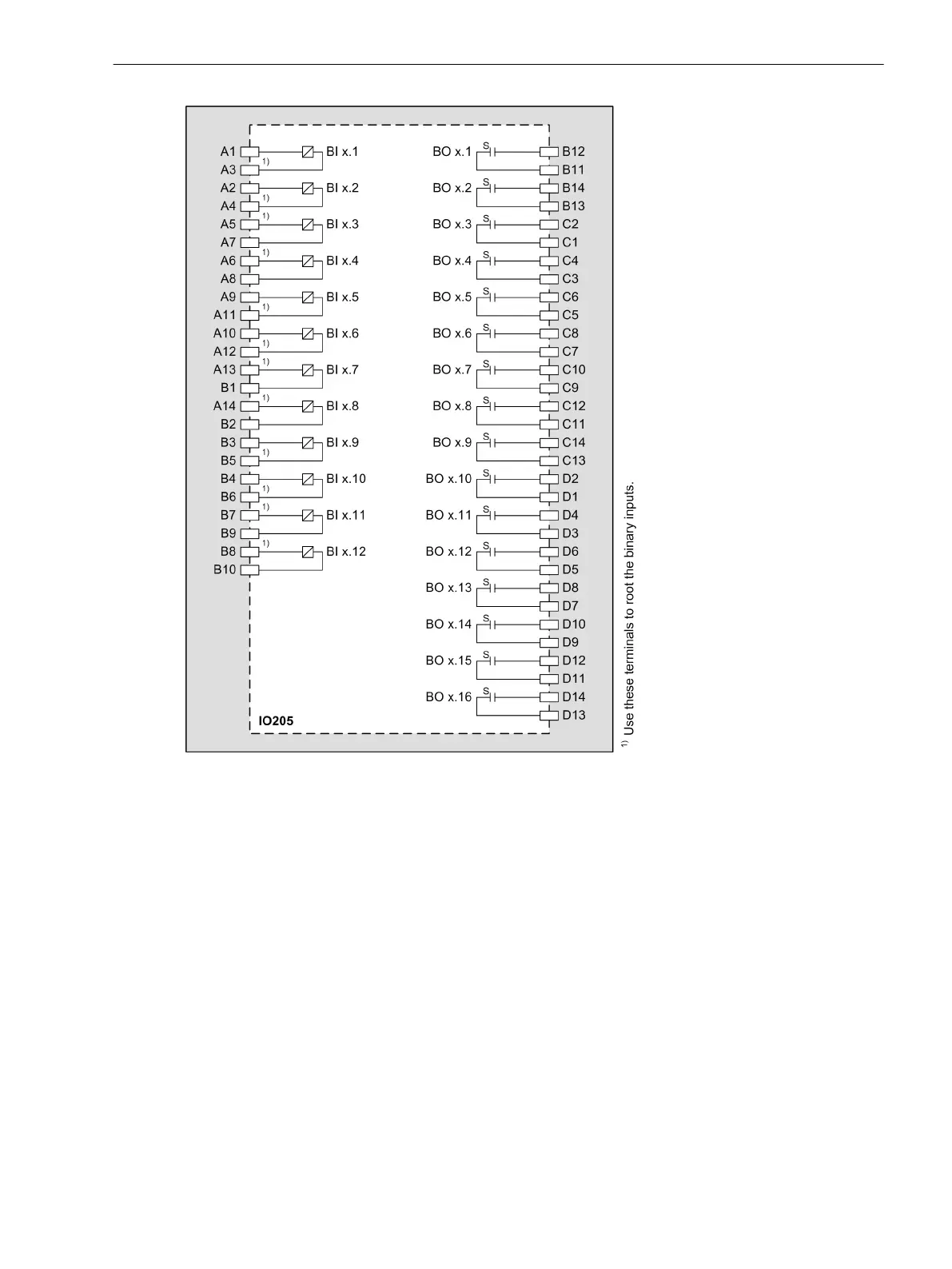

Figure 3-27
IO205 – Connection Diagram
Input and Output Module IO206
Description
The terminals for the following are located on the input and output module IO206:
•
6 binary inputs
•
7 binary outputs with 7 standard make contacts (type S)
The connections are distributed over two 14-pole voltage terminals.
