The preceding figure shows the cabling using the new RJ45 sockets in a simplified format. The serial RS485
bus can be extended by simply connecting Ethernet patch cables from device to device.
[dwserma2-030211-05.tif, 1, en_US]

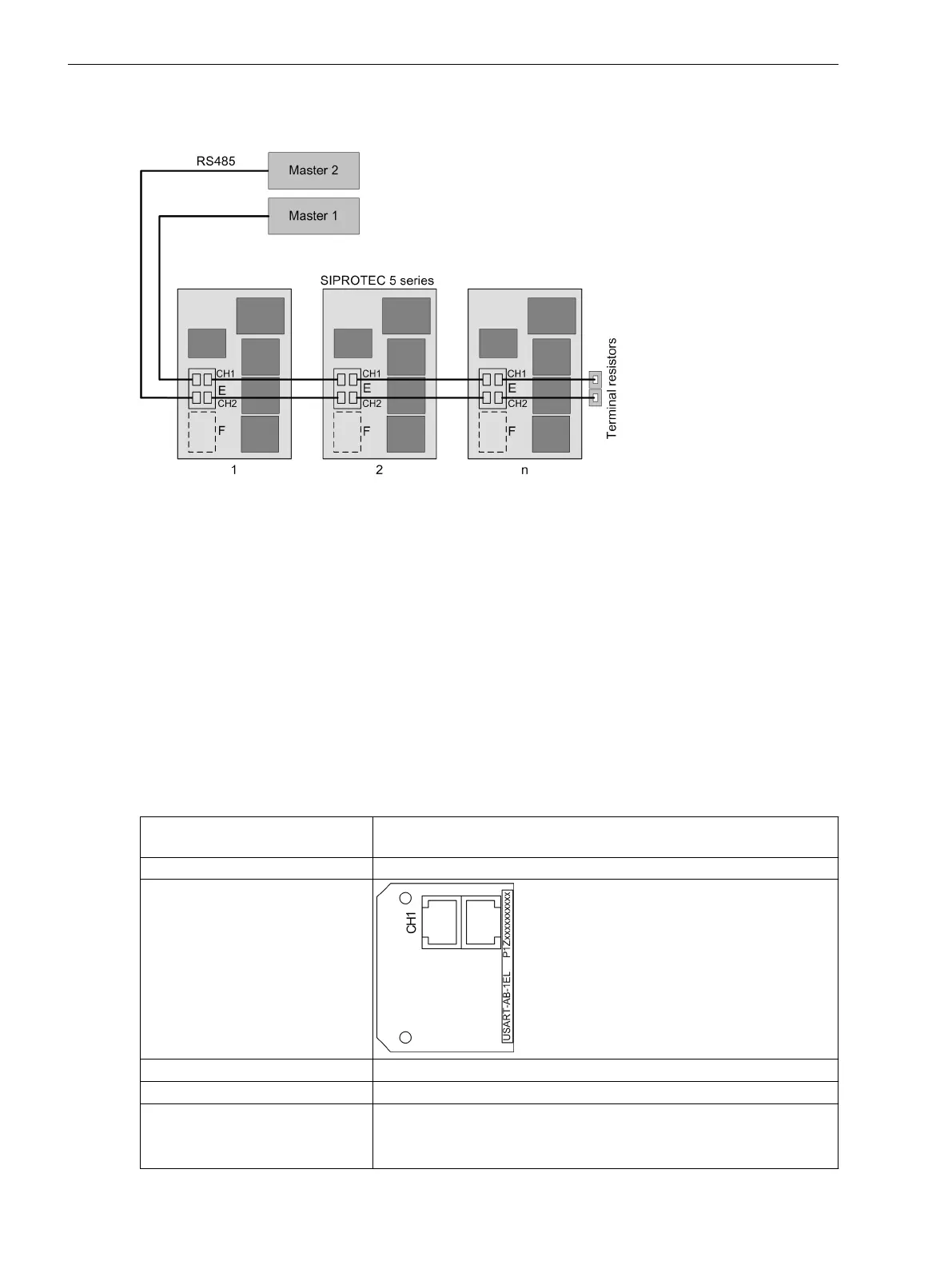

Figure 4-6 Redundant Communication with 2 Masters Using RS485 Bus (for Example, Redundant
IEC 60870-5-103 Protocol)
The preceding figure shows the use of both connections on one module for connecting the devices to 2 inde-
pendent masters following the same principle as with a single master.
Reorders
When reordering serial communication modules, specify the product code for the physical version of the
module. The order configurator (IPC configurator) shows you which applications are capable of running on the
module:
•
Serial
•
1-channel or 2-channel
•
Electrical or optical
USART-AB-1EL
Description
Serial asynchronous communication module with one electrical inter-
face
Product code P1Zxxxxxxxxxx
Figure
Connector type 2 x RJ45
Baud rate 1.2 kbits/s to 115.2 kbits/s
Protocol IEC 60870-5-103
DNP3
SUP serial
4.2.3.2
Plug-In Modules
4.2 Communication Modules
136 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
