Siemens SIPROTEC 5 Series

Arc Sensors for Module: ARC-CD-3FO
Point Sensor
Description
The point sensor detects arcs in the control cabinets of the air-insulated system part.
[dwsensap-210314-01, 2, en_US]

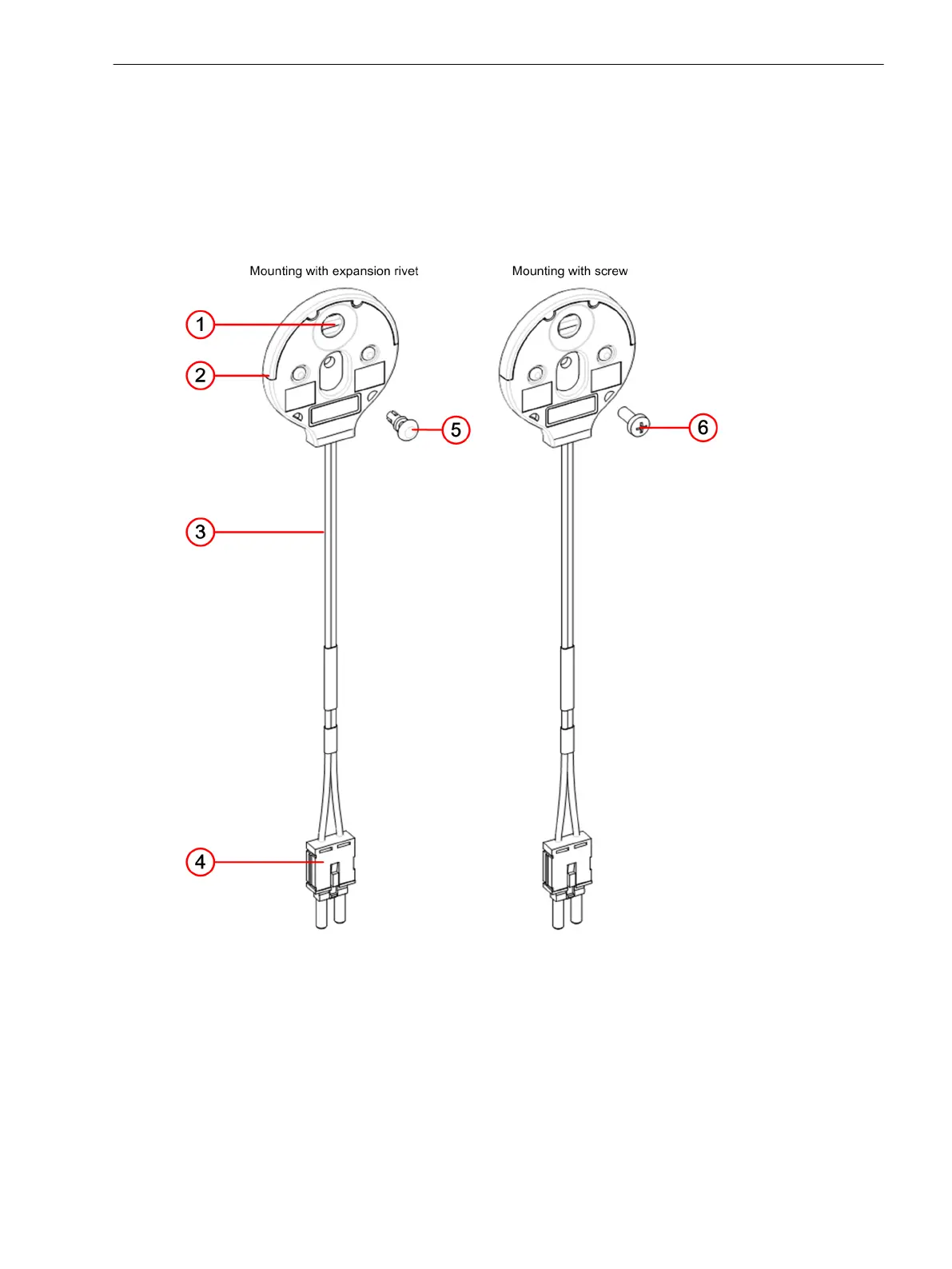

Figure 5-12
Point Sensor for the Arc-Protection Module: ARC-CD-3FO
(1) Optically active zone
(2) Sensor head
(3) Supply line
(4) Plug to the arc-protection module: ARC-CD-3FO
(5) Expansion rivet, 4x7
(6) Screw, M4
5.4
5.4.1
5.4.1.1
Working on the Device
5.4 Arc Sensors for Module: ARC-CD-3FO
SIPROTEC 5, Hardware Description, Manual 173
C53000-G5040-C002-C, Edition 10.2017
