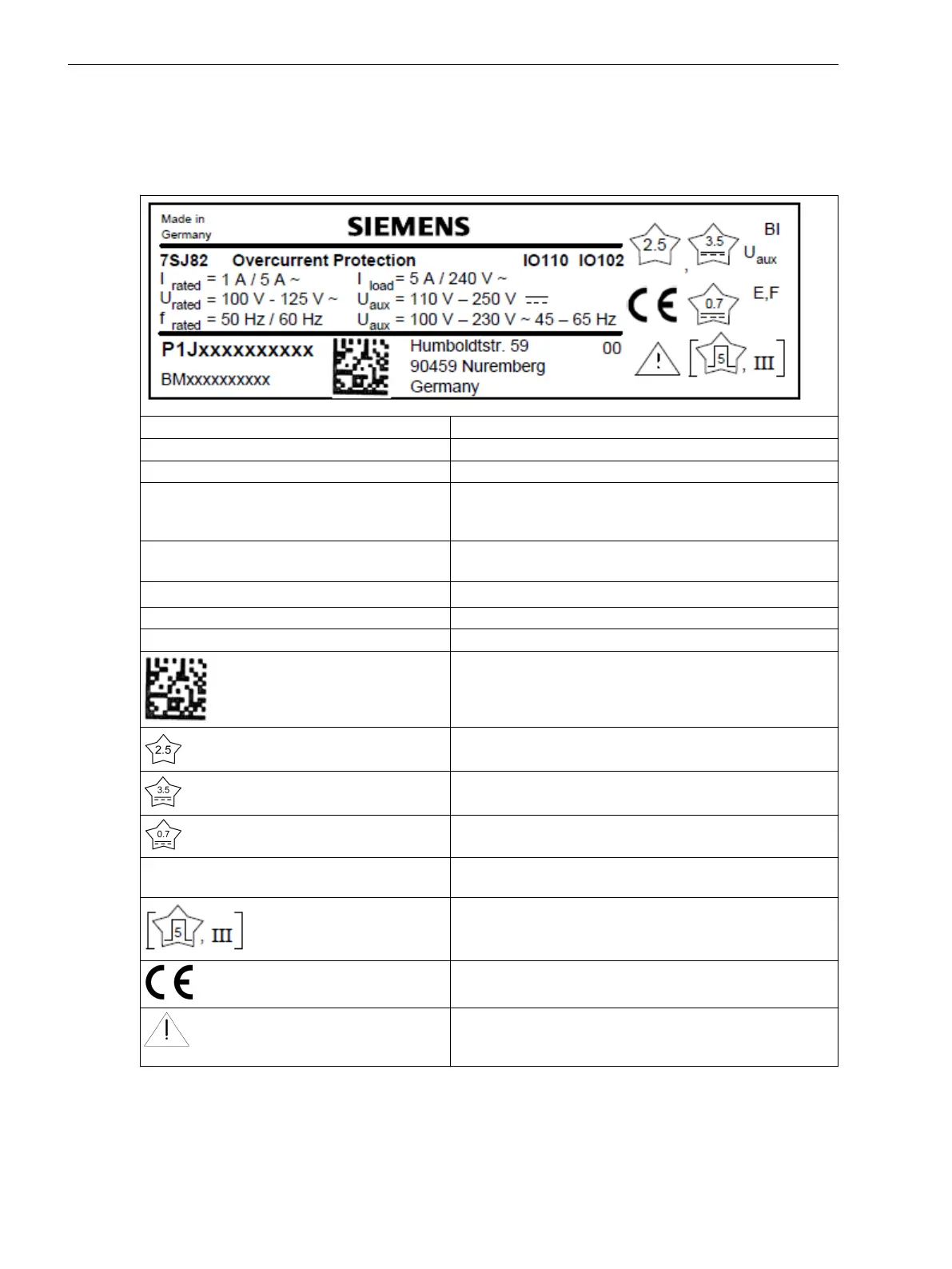

Name Plate of Non-Modular Devices (7xx82)
In the following table, the name plate of a non-modular device is explained as an example. The name plate is
located on the device.
7SJ82 Device type
Overcurrent Protection Product group
IO110 IO102 Designation of the I/O printed circuit board assemblies
I
rated,
U
rated
, f
rated
Rated values (which are specified when current and/or
voltage transformers are placed on the printed circuit board
assembly)
I
load
This value is specified when relays are placed on the printed
circuit board assembly.
V
aux
Values for the power supply
P1JXXXXXXXXXX Technical Numbering System (TNS), maximum 18 digits
BMXXXXXXXXXX Serial number
QR code
Insulation test of the voltage inputs, current inputs, and
binary outputs with AC 2.5 kV
Insulation test of the power supply (V
aux
) and binary inputs
(BI) with DC 3.5 kV
Insulation testing of all sealed-off interfaces with DC 700 V
E, F Designation of the ports into which the plug-in modules are
plugged.
5 kV impulse voltage test [type test] in compliance with
Class III
European CE marking
Pay attention to the overall documentation for the device
(Product information, Device manual, Hardware manual,
Operating manual, and Communication protocol manuals)
6.16
Technical Data
6.16 Name Plate of Non-Modular Devices (7xx82)
236 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
