(1) Device bus of the outermost right expansion module of the 1st device row
(2) Sealing plate
(3) Adaptor angle
(4) 2 fastening screws
[dw_schiene-020414-01, 1, --_--]

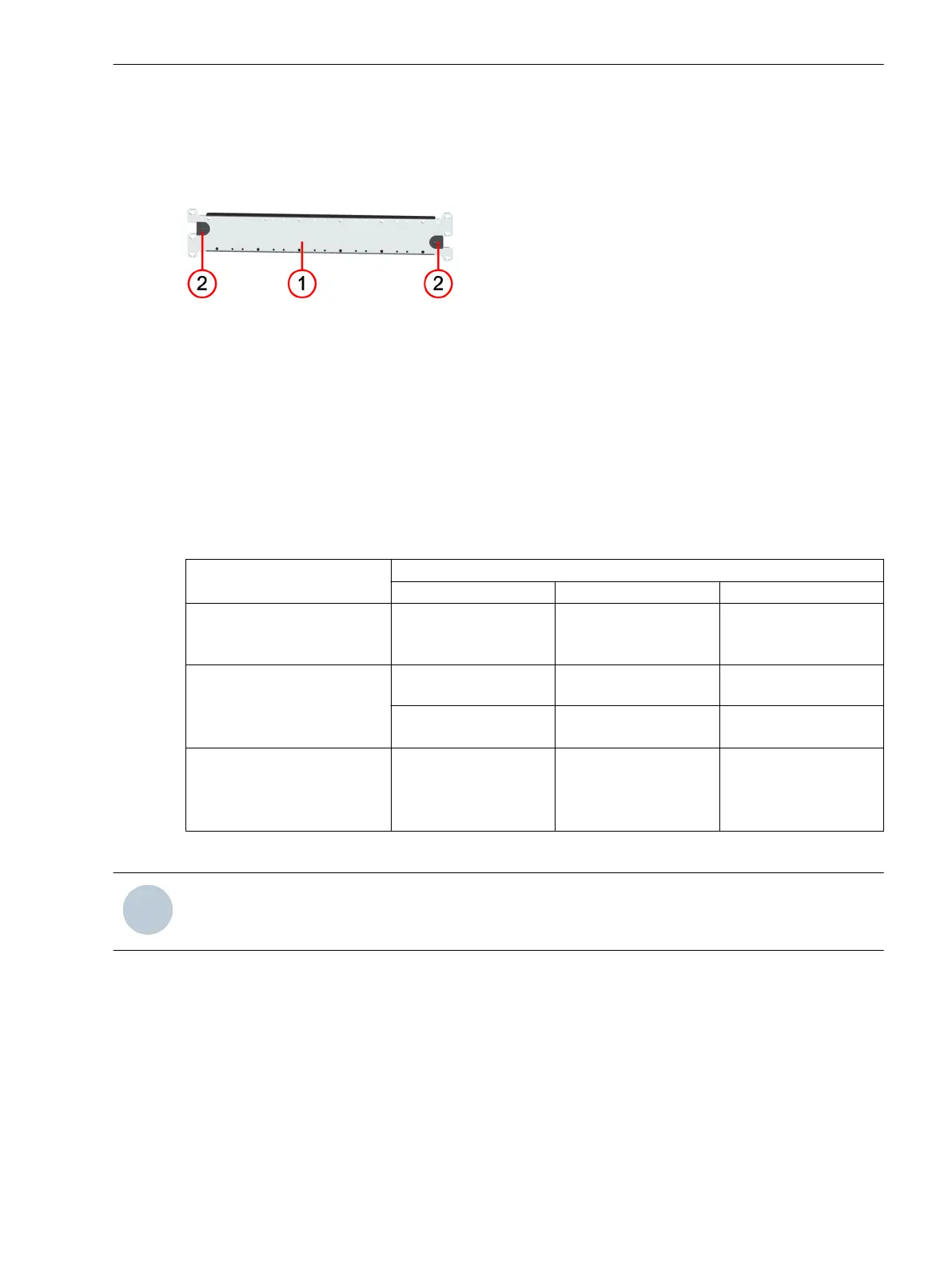

Figure 3-9 Angle Rail
(1) Angle rail
(2) 2 rubber seals
Plug-In Module Assembly with Integrated Power Supply CB202
Description
The plug-in module assembly CB202 is a module with an internal power supply. The CB202 module is used in
an expansion module. 3 plug-in module positions (M, N and P) are available for installation of plug-in
modules. The plug-in modules can be installed in the following arrangements:
Plug-In Module Position
M N P
Configured with
3 measuring-transducer
modules
Measuring-transducer
module
Measuring-transducer
module
Measuring-transducer
module
Configured with
2 measuring-transducer
modules and
1 communication module
Measuring-transducer
module
Measuring-transducer
module
Communication module
Measuring-transducer
module
Communication module Measuring-transducer
module
Configured with
1 measuring-transducer
module and
2 communication modules
Measuring-transducer
module
Communication module Communication module
Combinations that do not occupy all plug-in module positions are also possible.
i
i
NOTE
A communication module cannot be plugged into the plug-in module position M.
The CB202 module communicates with the base module using a communication connection. This communi-
cation connection is established with a special connecting cable. This connecting cable (CAT5 FTP patch cable)
is always included in the scope of delivery of the CB202 module and need not be ordered separately.
The following 2 variants are available for the rated voltage range:
•
DC 24 V to 48 V
•
DC 60 V to DC 250 V and AC 100 V to AC 230 V (50 Hz and 60 Hz)
The CB202 PCB assembly assembly can be used in the 1st and 2nd device rows.
3.1.4
3.1.4.1
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 51
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
