SDHC Memory Card
The SDHC memory card (Secure Digital High Capacity) is used to store records from the 7KE85 fault recorder.
[dw_SDHC, 1, --_--]

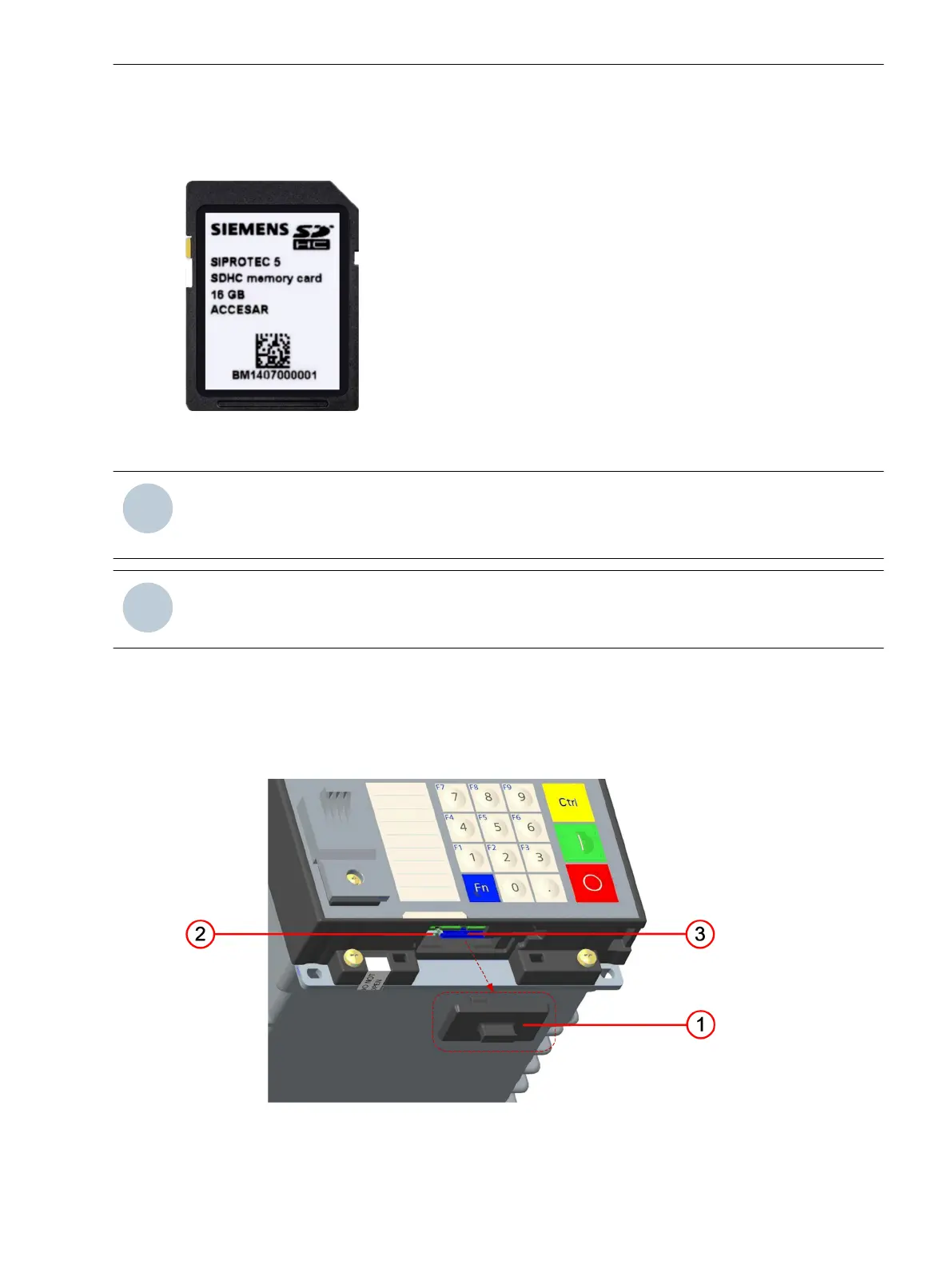

Figure 5-19 SDHC Memory Card
i
i
NOTE
Reading the data of the SDHC memory card with a PC is not intended.
Avoid too frequent insertion cycles!
i
i
NOTE
Use only the original SDHC memory card (ACCESAR) approved by Siemens for the 7KE85 fault recorder.
Replacing the SDHC Memory Card
²
De-energize the device.
²
Remove the sealing cap.
²
Unlock the card by pressing the turquoise eject lever.
[le_Remove_cap_and_SDHC, 1, --_--]
Figure 5-20 Removing the Sealing Cap and SDHC Memory Card
5.6
Working on the Device
5.6 SDHC Memory Card
SIPROTEC 5, Hardware Description, Manual 181
C53000-G5040-C002-C, Edition 10.2017
