Siemens SIPROTEC 5 Series User Manual

The attainable distance in multimode optical fibers is limited by 2 factors.
•
Bandwidth length product
Typical for 62.5 μm/125 μm optical fibers: 400 MHz x km to 800 MHz x km
Typical for 50 μm/125 μm optical fibers: 400 MHz x km to 1200 MHz x km
•
Fiber attenuation
The typical attenuation of a 62.5 μm/125 μm optical fiber is from 0.9 dB/km to 1 dB/km for light with the
wavelength λ = 1300 nm. 1.5 dB/km are added for splices, aging and as a reserve. An attenuation of
2.5 dB/km is used for calculation of the distance.

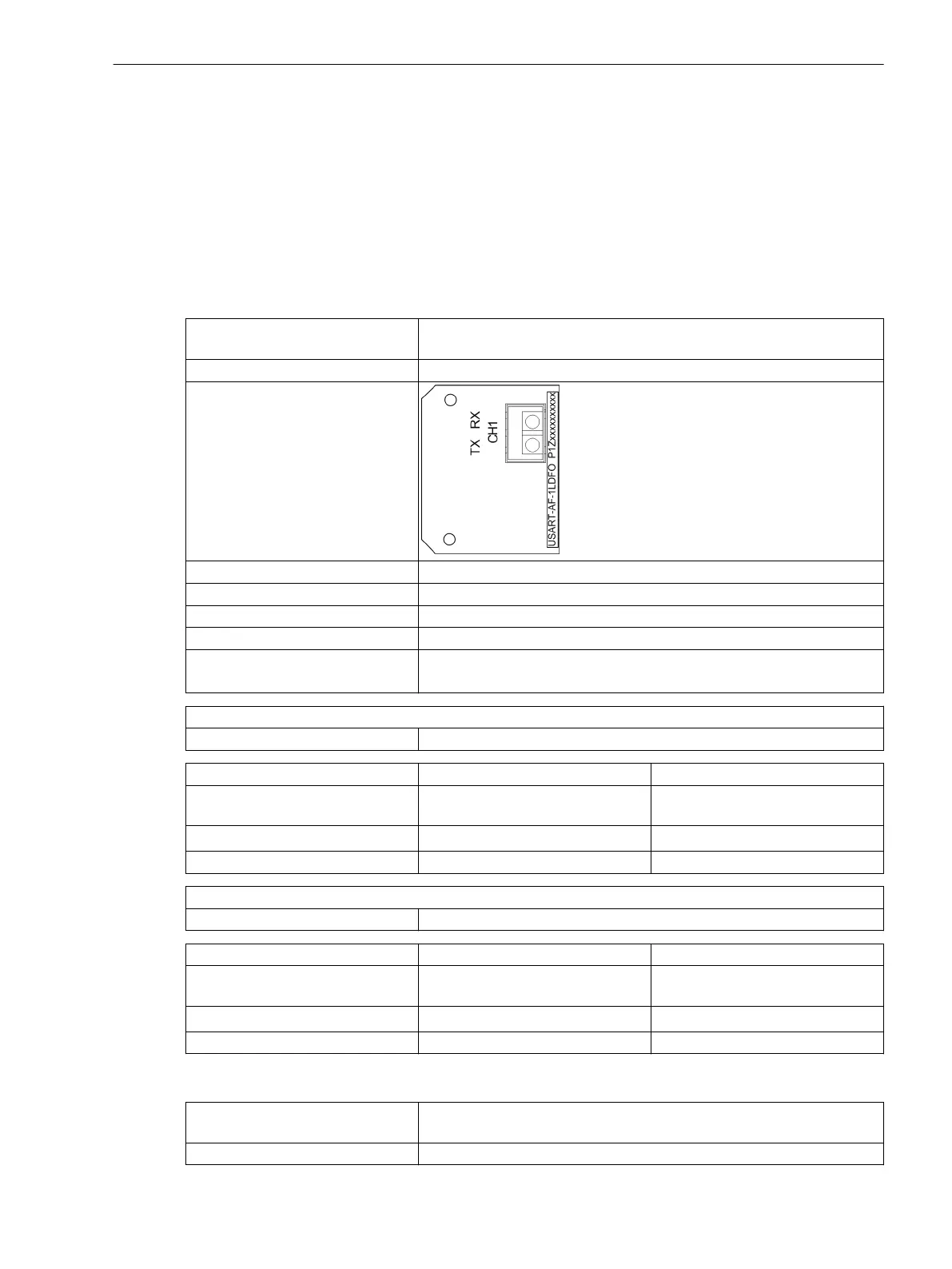

USART-AF-1LDFO
Description Protection-interface module for synchronous operation with an optical
interface
Product code P1Zxxxxxxxxxx
Figure
Connector type 1 x duplex LC
Wavelength λ = 1300 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. distance 25 km for singlemode optical fibers or
4 km with multimode optical fiber
Distance 4 km
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in
multimode optical fiber
-15.0 dBm
avg
-8.0 dBm
avg
Receiver sensitivity -28.0 dBm
avg
-31.0 dBm
avg
Optical budget 13.0 dB –
Distance 25 km
Laser class 1 as per EN 60825-1/-2 With the use of 9 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in
singlemode optical fiber
-15.0 dBm
avg
-8.0 dBm
avg
Receiver sensitivity -28.0 dBm
avg
-31.0 dBm
avg
Optical budget 13.0 dB –
USART-AG-1LDFO
Description
Protection-interface module for synchronous operation with an optical
interface
Product code P1Zxxxxxxxxxx
4.2.4.2
4.2.4.3
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 139
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
