Siemens SIPROTEC 5 Series User Manual

i
i
NOTE
If you use the module USART-AG-1LDFO for distances under 25 km, connect 2 attenuators
7XV5107-0AA00. To continue using the Duplex LC plugs, attach both attenuators at one end of the remote
connection (see Figure 4-7).

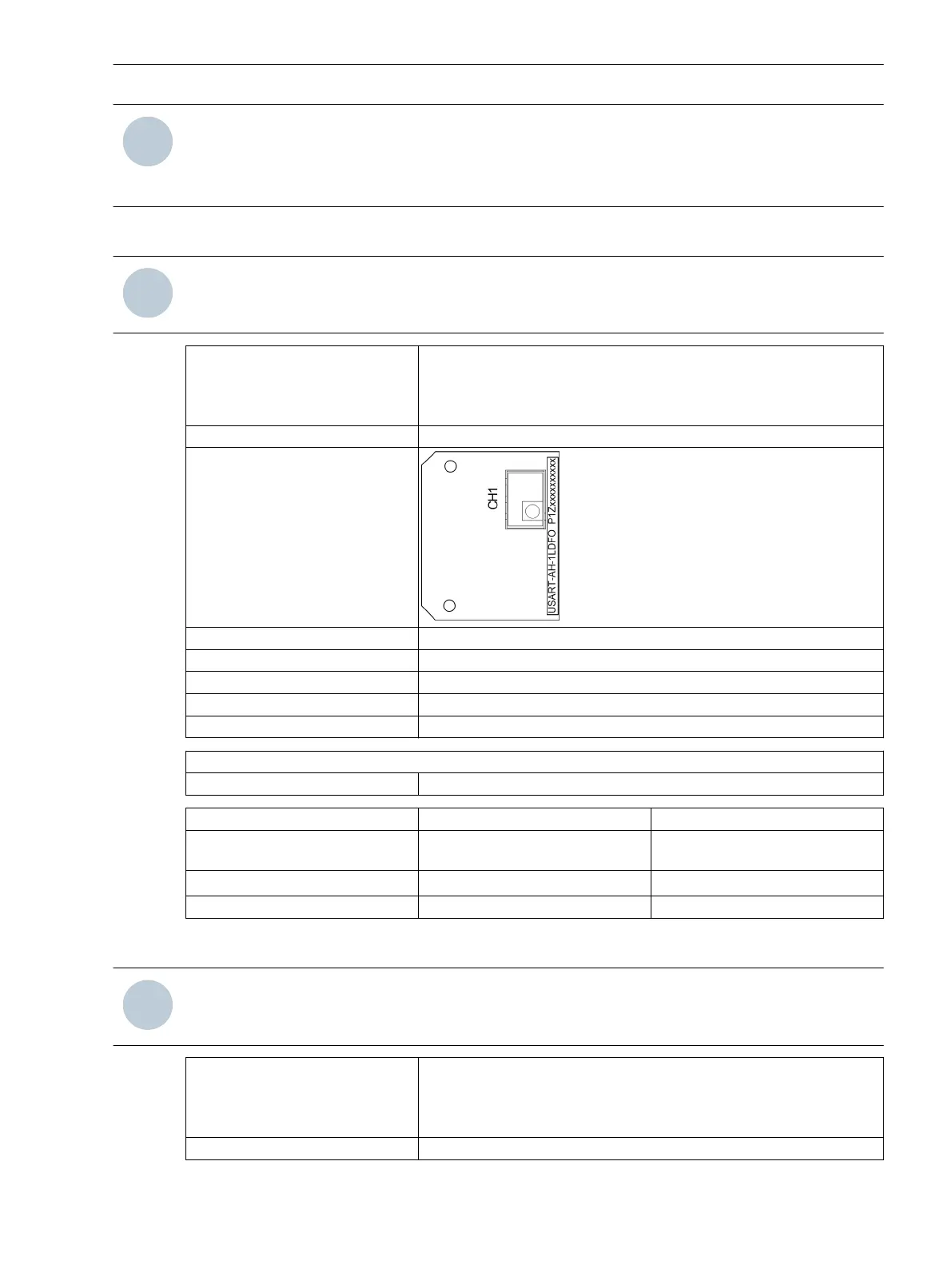

USART-AH-1LDFO
i
i
NOTE
Use the protection-interface module USART-AH-1LDFO paired with USART-AJ-1LDFO only.
Description Protection-interface module for synchronous operation with an optical
interface
In particular, a bidirectional data exchange through a single optical fiber
is possible with the USART-AJ-1LDFO module.
Product code P1Zxxxxxxxxxx
Figure
Connector type 1 x LC Simplex
Wavelength λ = 1300 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. line length 40 km for singlemode optical fibers
Distance 40 km
Laser class 1 as per EN 60825-1/-2 With the use of 9 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in the
singlemode optical fiber
-8.0 dBm
avg
-3.0 dBm
avg
Receiver sensitivity -33.0 dBm
avg
-38.0 dBm
avg
Optical budget 25.0 dB –
USART-AJ-1LDFO
i
i
NOTE
Use the protection-interface module USART-AJ-1LDFO paired with USART-AH-1LDFO only.
Description Protection-interface module for synchronous operation with 1 optical
interface
In particular, a bidirectional data exchange through a single optical fiber
is possible with the USART-AH-1LDFO module.
Product code P1Zxxxxxxxxxx
4.2.4.4
4.2.4.5
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 141
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
