Input Module IO230
Description
The terminals for the following are located on the IO230 module:
•
48 binary inputs
The connections are distributed over six 10-pole connection terminals.
NOTE
Note that the IO230 input module has group switching for switching thresholds. The thresholds of the
binary inputs can be switched only in groups of 4. 4th group x1 to x4 and 4th group x7 to x10 (x = A, C, D,
E, G, H).
Terminals
Overview of Terminals
[dwio230x-030713-01.tif, 2, --_--]
Figure 3-52

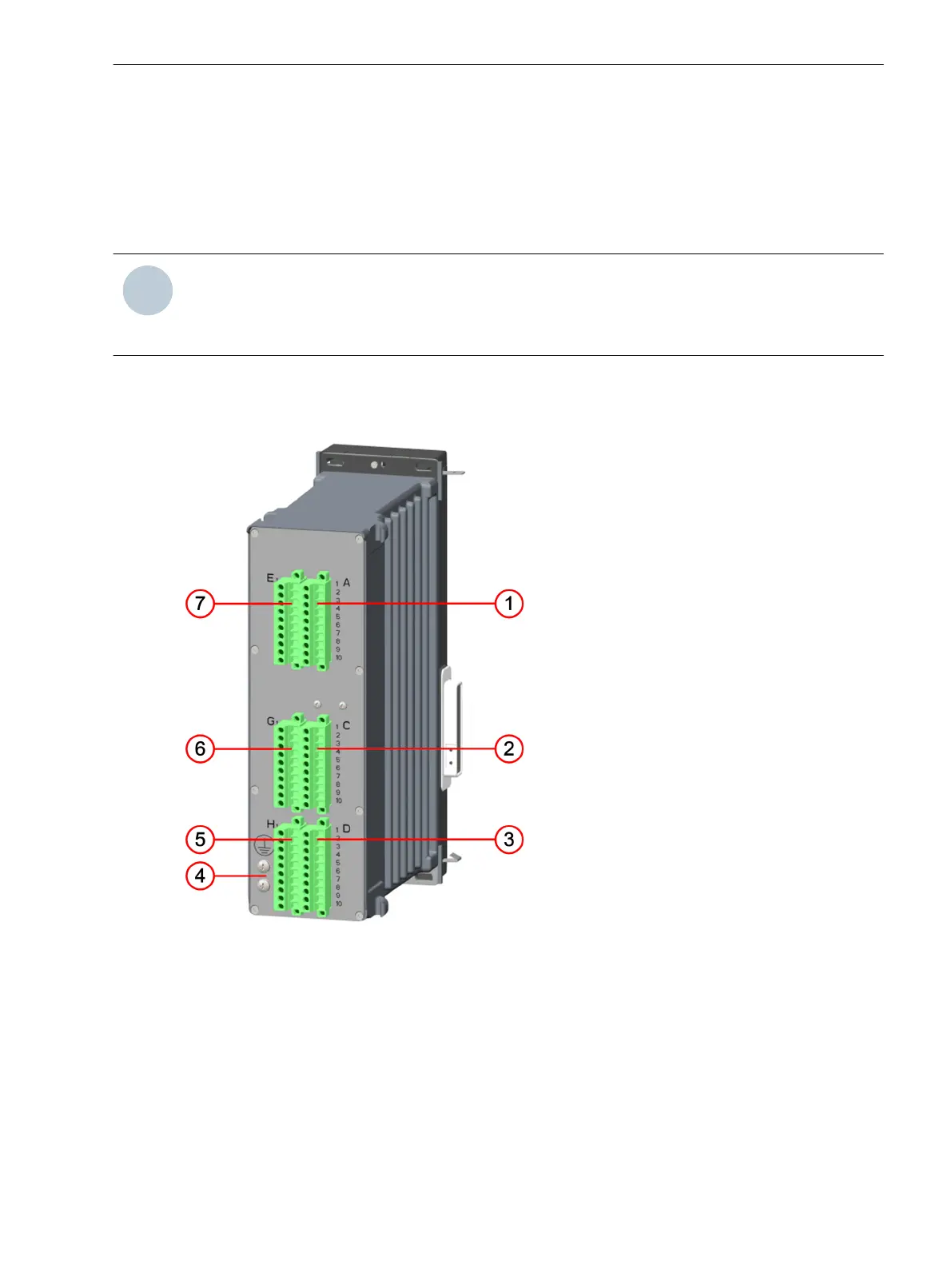

IO230 – Terminals
(1) Terminal xA
(2) Terminal xC
(3) Terminal xD
(4) Protective grounding terminal
(5) Terminal xH
(6) Terminal xG
(7) Terminal xE
3.2.16
3.2.16.1
3.2.16.2
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 93
C53000-G5040-C002-C, Edition 10.2017
