Siemens SIPROTEC 5 Series User Manual

Communication Modules
Overview
SIPROTEC devices can be ordered with factory-installed communication modules. The communication modules
can also be installed and replaced in the SIPROTEC devices afterwards. You do not have to open the device for
this.
i
i
NOTE
The communication modules available for reordering are not preconfigured. Use DIGSI 5 to carry out the
functional adjustment to the required protocol application.
The communication modules can be installed in the base module or the 1/3 module and in the expansion
module with the plug-in module assembly CB202. A maximum of 2 communication modules each can be
installed. You can use only one CB202 in the device.
The plug-in module assembly CB202 is a PCB assembly with an integrated power supply.
The plug-in module assembly CB202 communicates with the base module via a special connecting cable. This
connecting cable (CAT 5 FTP patch cable) is always included in the scope of delivery of the CB202 assembly or
the devices containing the CB202 assembly and need not be ordered separately.
Ensure that you route the communication lines separately from network circuits.
[dwcm201p-030211-01.tif, 2, --_--]

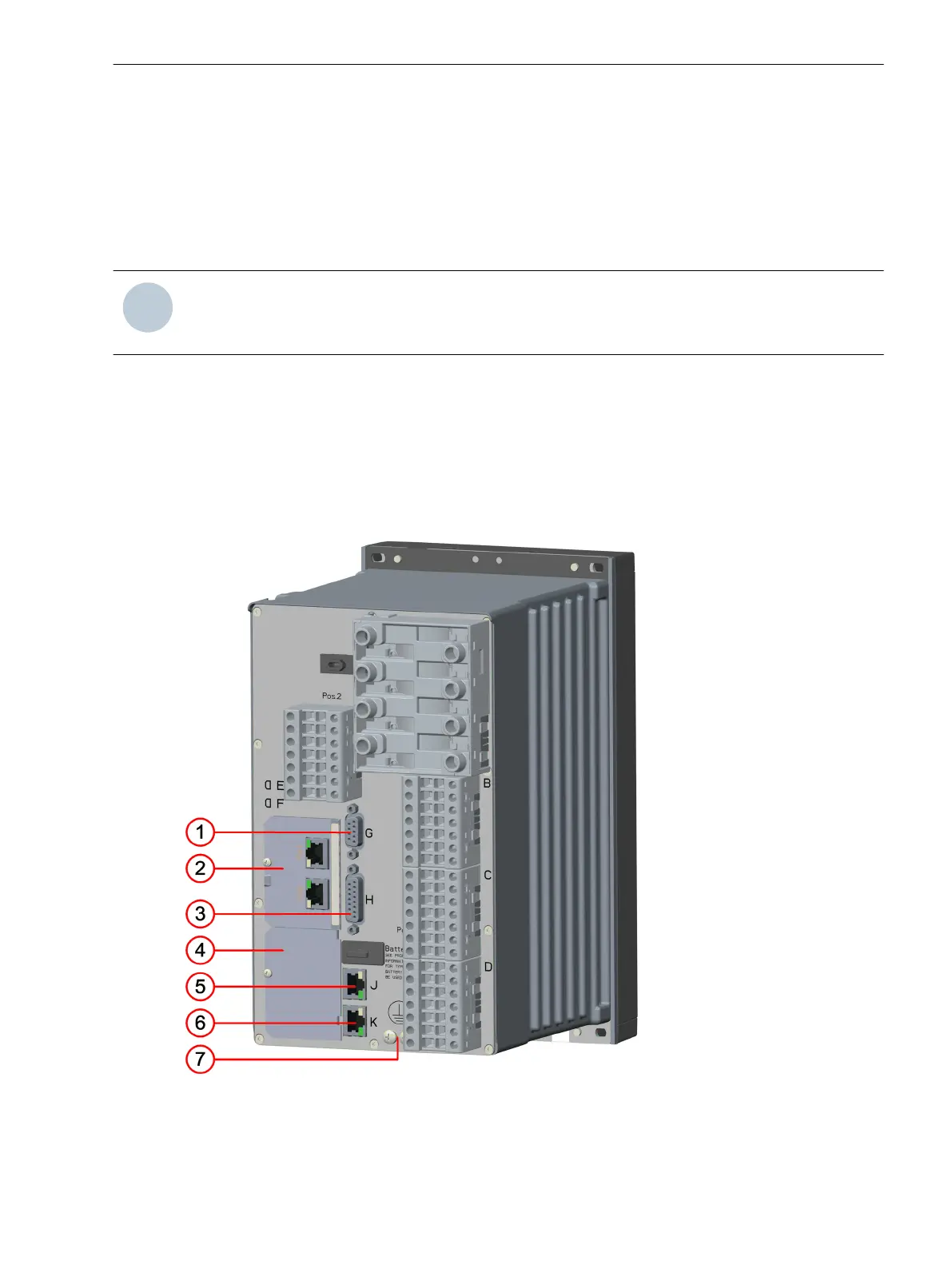

Figure 4-1
Plug-In Module Positions and Communication Terminals in the Base Module, with Modular
Devices
4.2
4.2.1
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 129
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
