(1) Time synchronization G
(2) Plug-in module position E
(3) Detached on-site operation panel H
(4) Plug-in module position F
(5) Integrated Ethernet interface J
(6) Connection to the expansion module with CB202 module
(7) Protective grounding terminal
[dwlmnppo-030211-01.tif, 2, --_--]

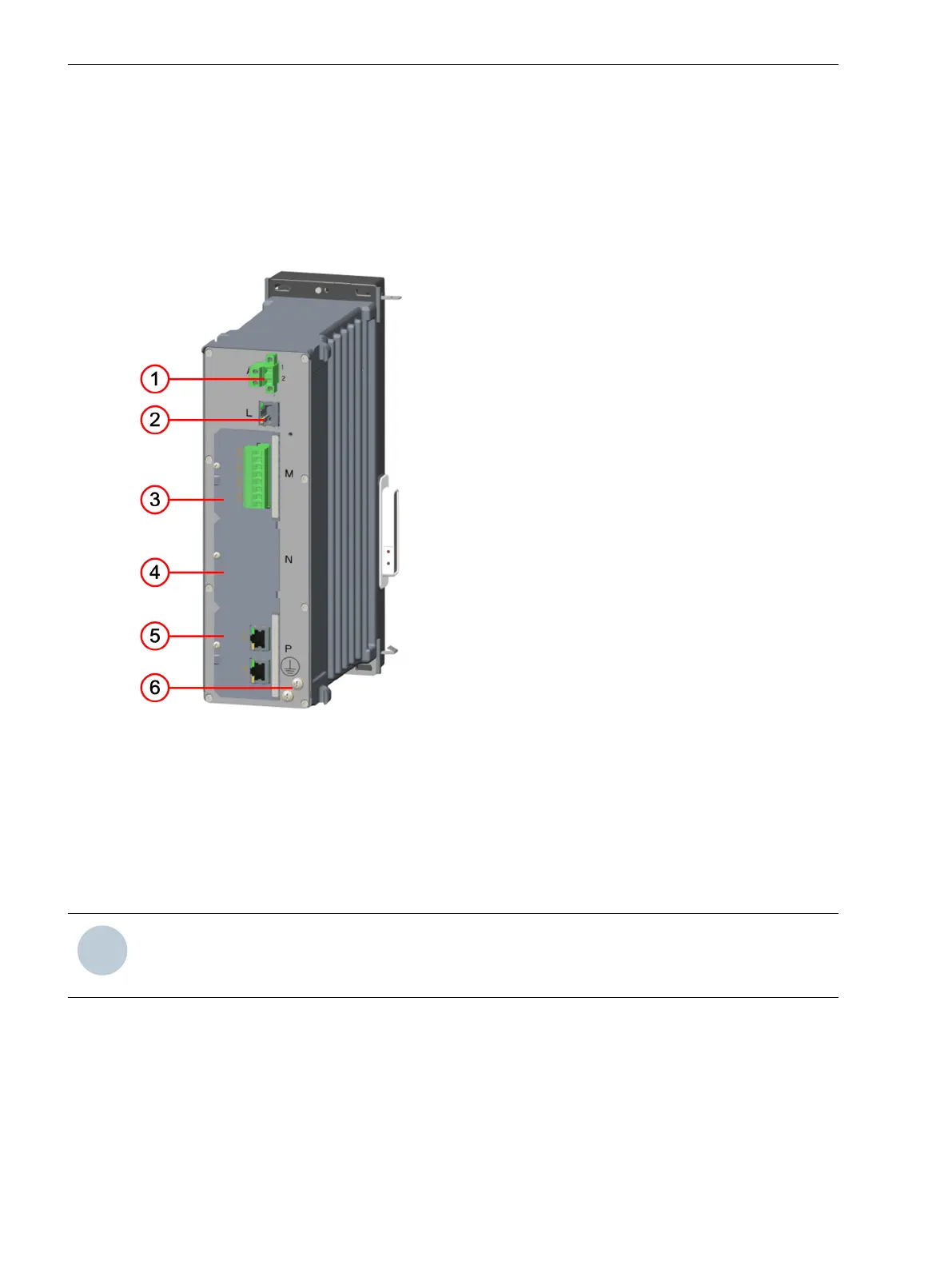

Figure 4-2
Plug-In Module Positions and Communication Terminals in the Expansion Module with CB202
(1) 2-pole terminal to connect power supply
(2) COM link L (connection to interface K of the base unit)
(3) Plug-in module position M
(4) Plug-in module position N
(5) Plug-in module position P
(6) Protective grounding terminal
i
i
NOTE
You cannot insert any communication module at plug-in module position M. The plug-in module posi-
tion M is intended for a measuring-transducer module only.
