Terminals
Overview of Terminals

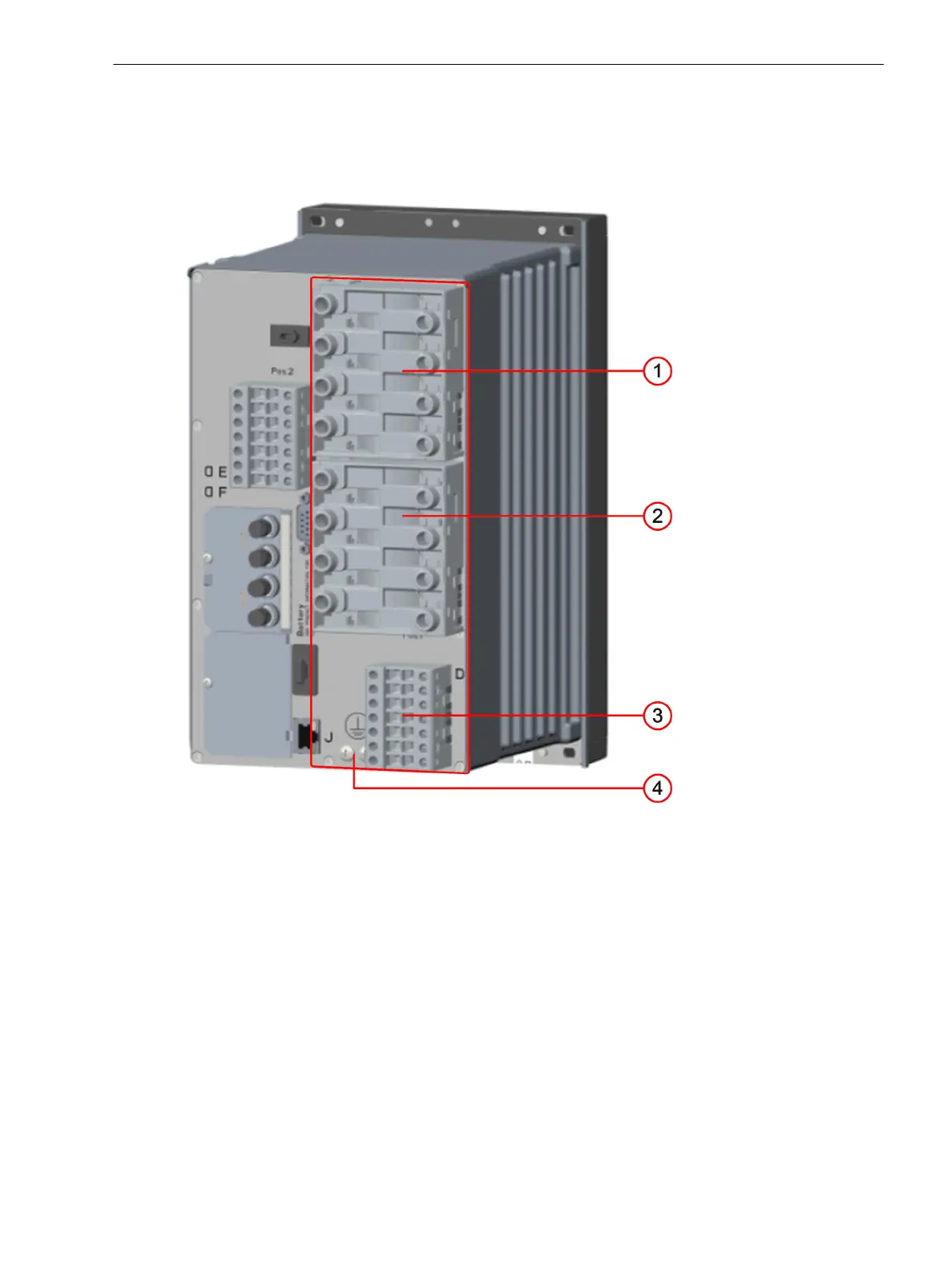

The terminals assigned to the module are identified by the frame in the figure.
[le_io103, 1, --_--]
Figure 3-71
IO103 – Terminals
(1) Current terminal A
(2) Current terminal B
(3) Voltage terminal D
(4) Protective grounding terminal
3.4.4.2
Electronic Modules
3.4 Input and Output Modules of the Non-Modular Devices (7xx82)
SIPROTEC 5, Hardware Description, Manual 115
C53000-G5040-C002-C, Edition 10.2017
