Terminal and Connection Diagram
[cdio103x-131113-01, 3, en_US]

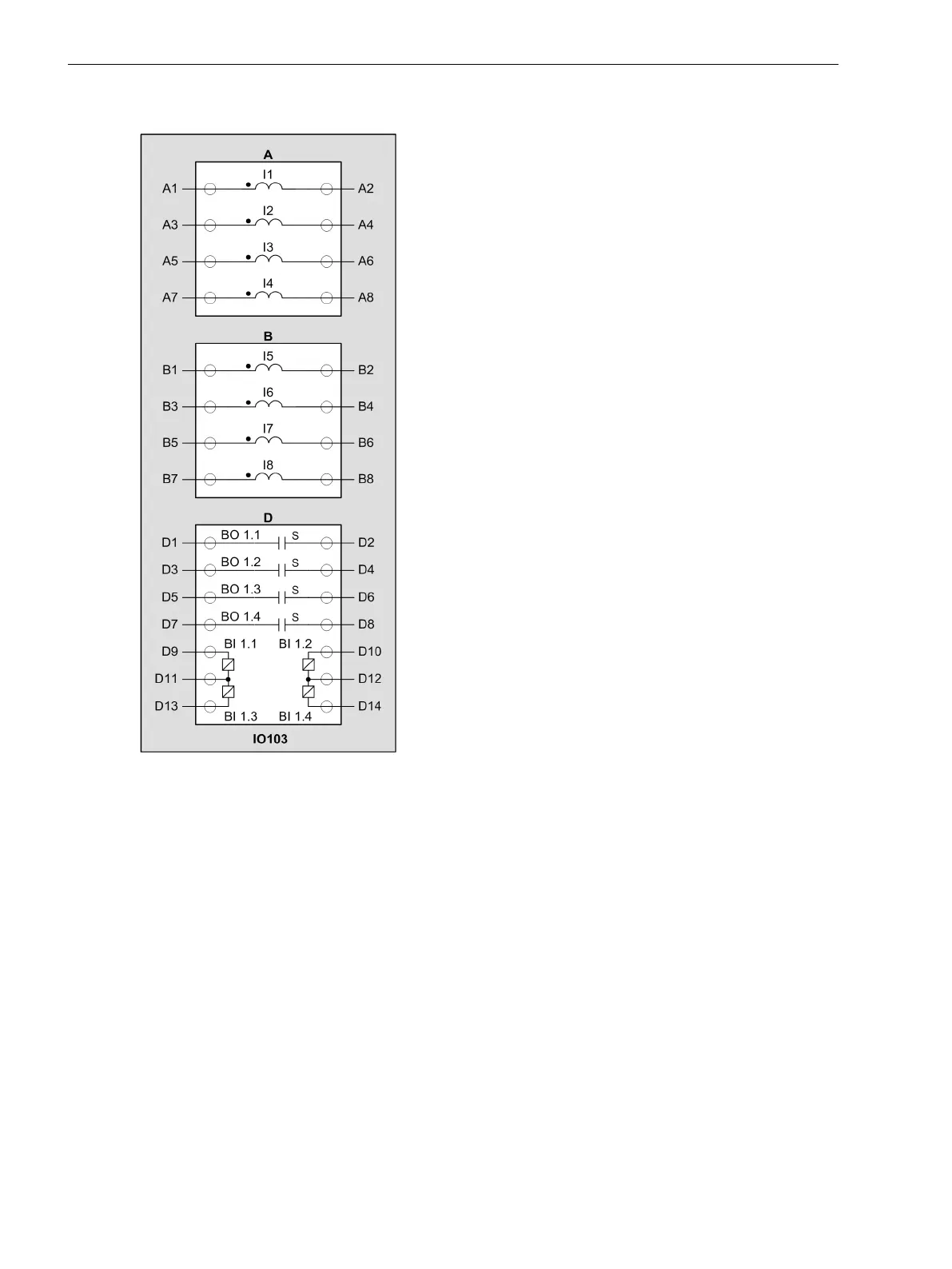

Figure 3-72
IO103 – Terminal Diagram
Electronic Modules
3.4 Input and Output Modules of the Non-Modular Devices (7xx82)
116 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
