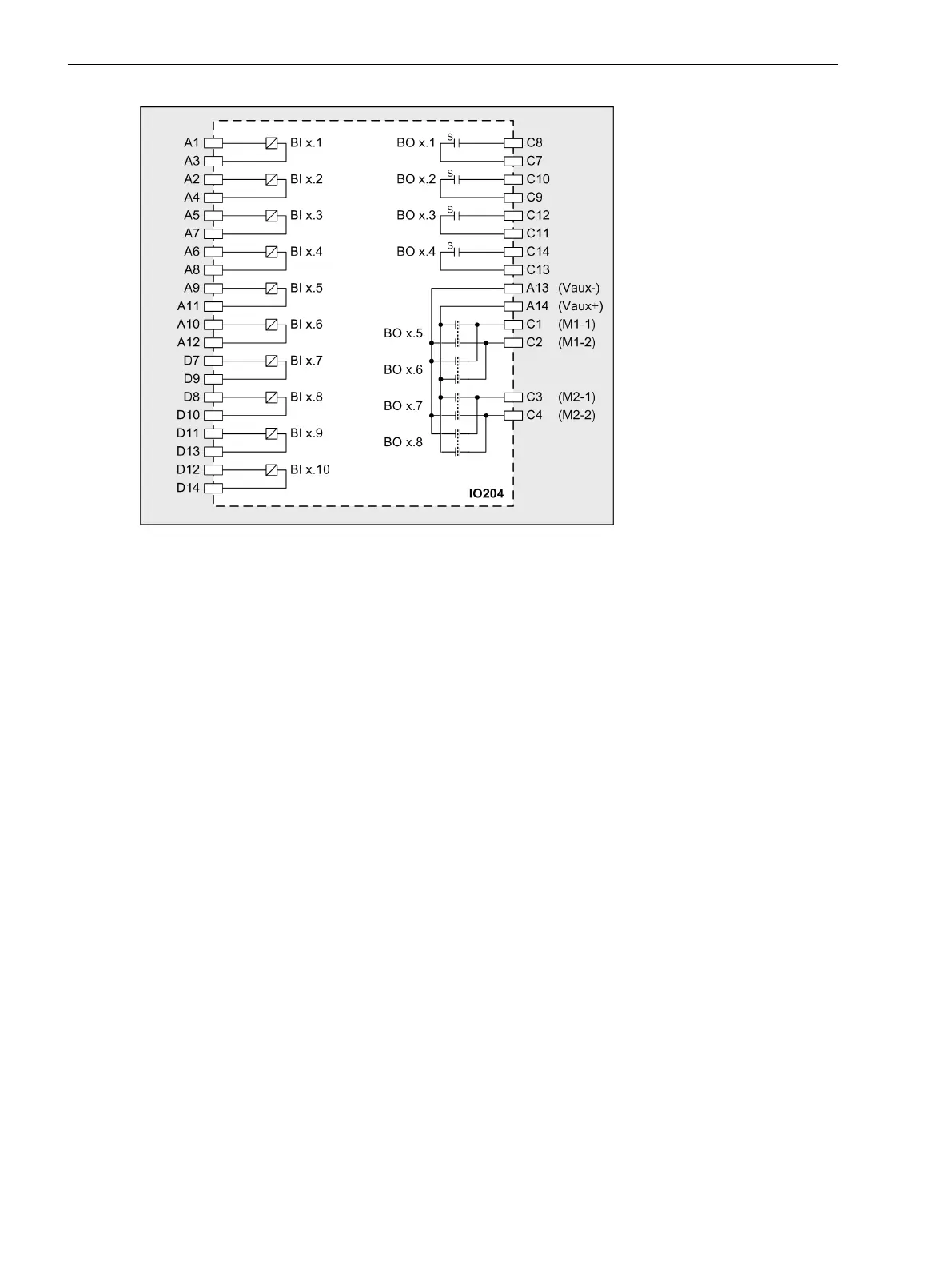

Figure 3-24
IO204 – Connection Diagram
Input and Output Module IO205
Description
The terminals for the following are located on the input and output module IO205:
•
12 binary inputs
•
16 binary outputs with 16 standard make contacts (type S)
The connections are distributed over four 14-pole voltage terminals.
3.2.6
3.2.6.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
66 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
