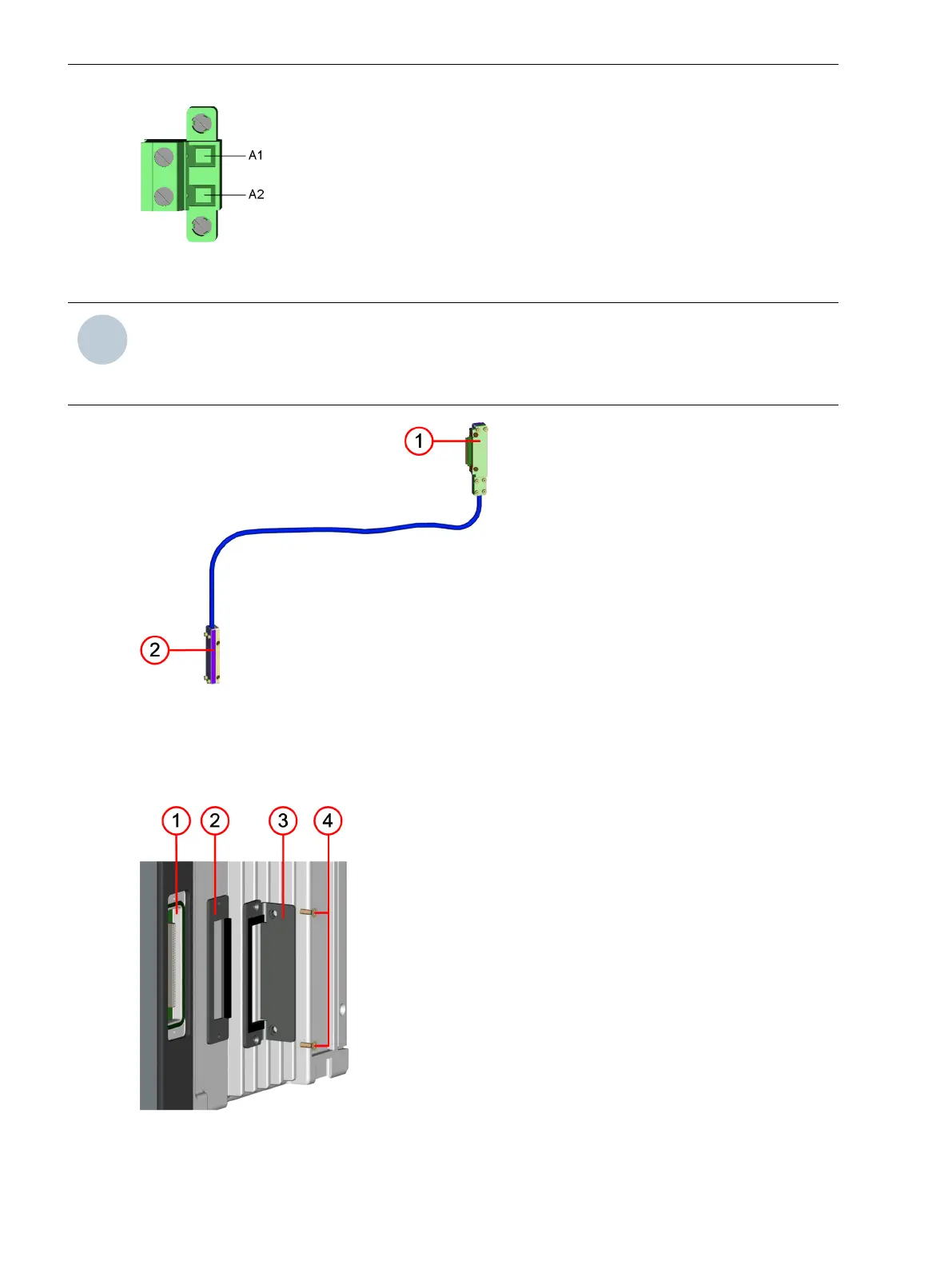

Figure 3-6 Connection of External Power Supply
i
i
NOTE
When expanding a device with the 2nd device row, you must install the connecting cable for the 2nd
device row together with the associated angle rail. All required components are included with a power-
supply module PS203.
[dw_kabel1-020414-01, 1, --_--]
Figure 3-7 Connecting Cable for the Connection of a 2nd Device Row
(1) Handle mold for the connection to the 1st device row
(2) Handle mold for the connection to the 2nd device row
[dw_winkel-020414-01, 1, --_--]
Figure 3-8 Sealing Plate and Adaptor Bracket for the Expansion Module of the 1st Device Row
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
50 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
