[dw_example_temp_sensor_2phase, 1, en_US]

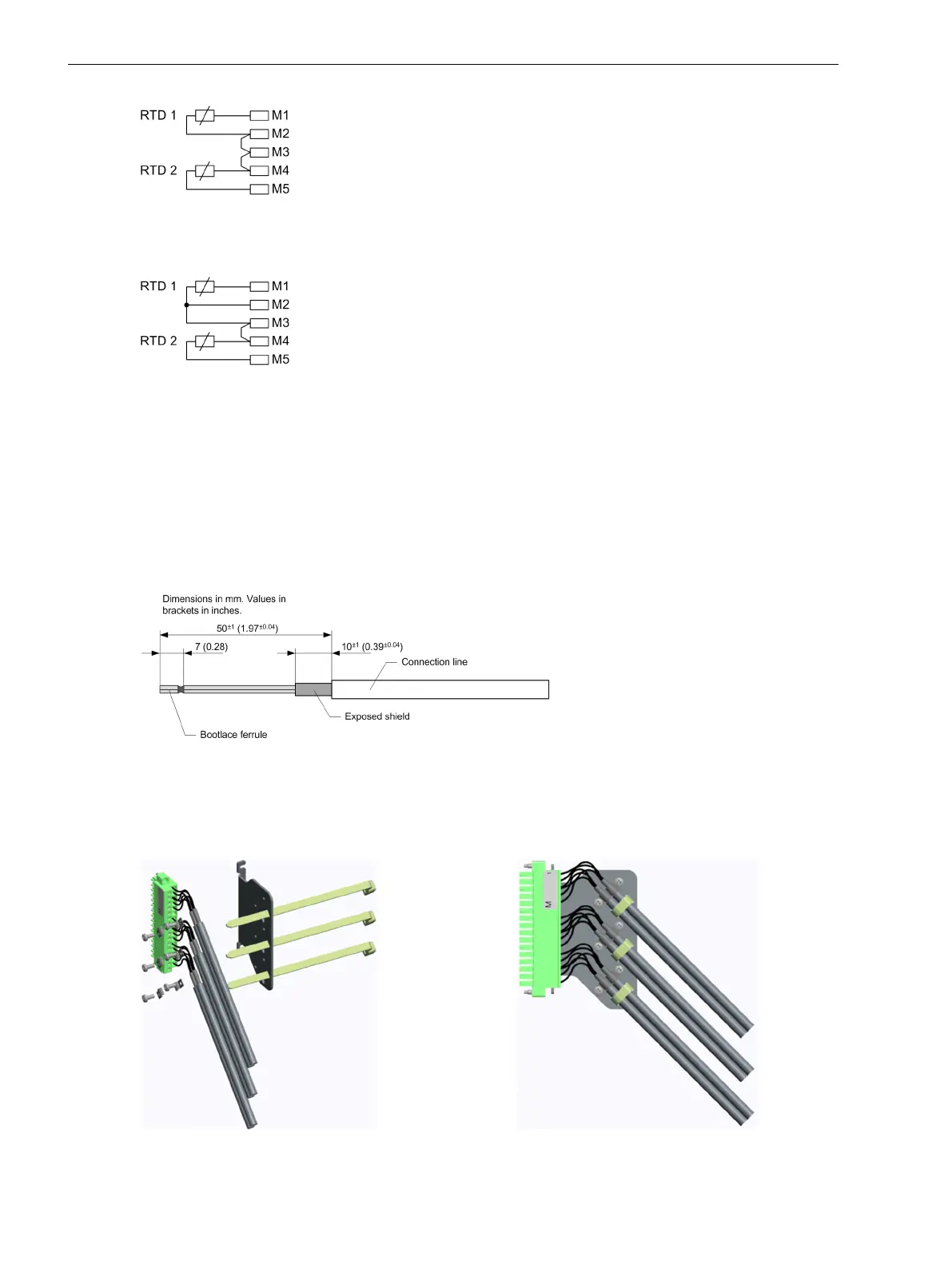

Figure 3-81 Example: Connecting Temperature Sensors RTD 1 (2-Line Terminal) and RTD 2 (2-Line
Terminal) to Terminals M1 to M5
[dw_temperature_sensor, 1, en_US]
Figure 3-82 Example: Connecting Temperature Sensors RTD 1 (3-Line Terminal) and RTD 2 (2-Line
Terminal) to Terminals M1 to M5
Connecting the Lines
When connecting the lines, please proceed as follows:
²
Use shielded lines with shielding braid (3-core AWG 24).
²
Prepare the cable as shown in the following figure.
The dimensions in the drawing are specified to allow insertion of the plug with the shielding plate
screwed on.
[dw_shielded_line, 1, en_US]
Figure 3-83 Preparing the Cable
²
Connect the lines with bootlace ferrules.
²
Use the included clamps and cable ties to provide contact for the shield and strain relief for the cable.
[sc_ shielding_plate _mounting-cutout, 1, --_--]
Figure 3-84 Using Clips and Cable Ties
Electronic Modules
3.4 Input and Output Modules of the Non-Modular Devices (7xx82)
124 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
