Siemens SIPROTEC 5 Series User Manual

[dwringka-030211-01.tif, 1, en_US]

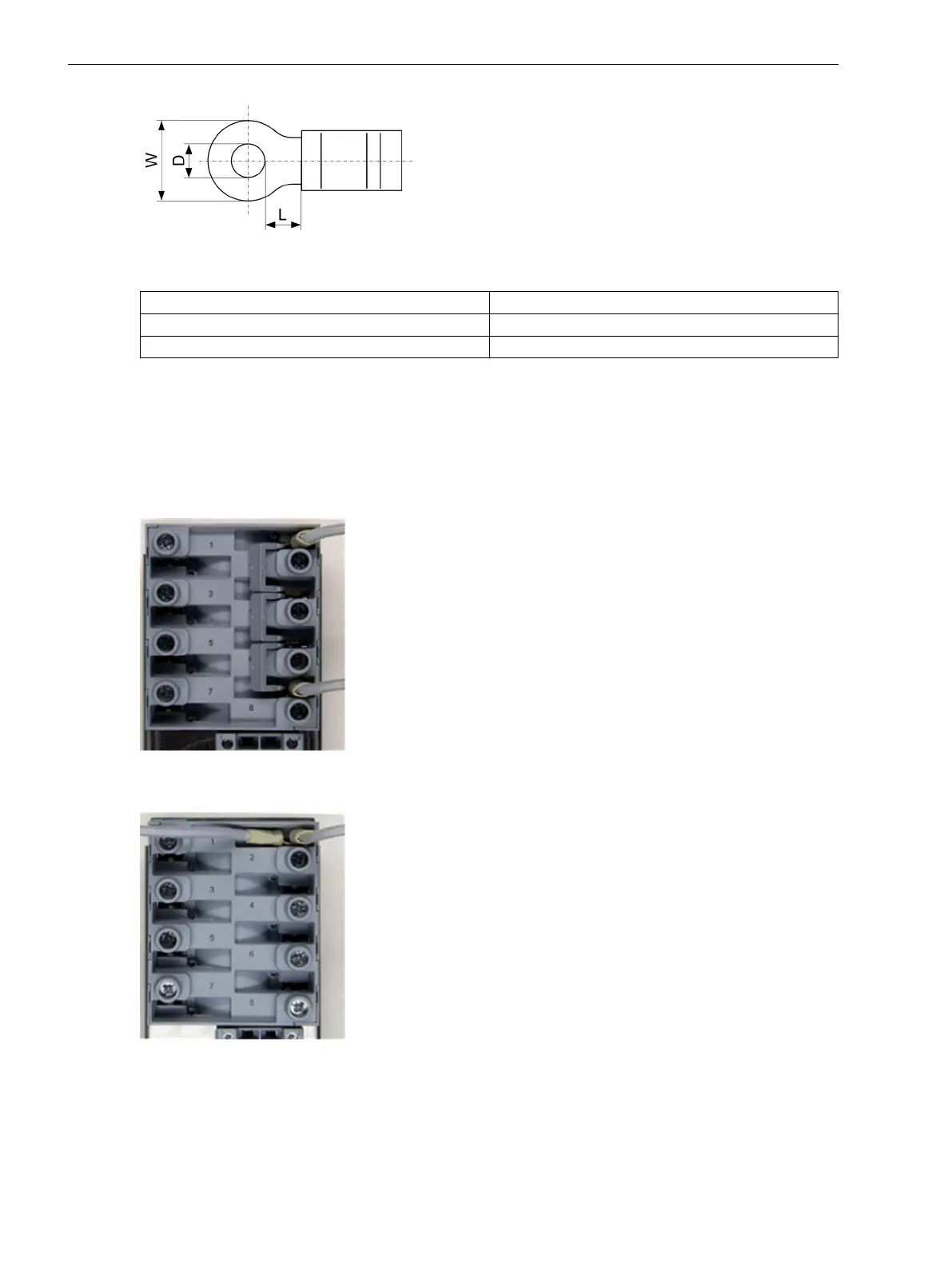

Figure 5-27 Ring-Type Lug
D (for bolt) 5.0 mm (0.2 in)
W 9.5 mm (0.37 in)
L 7.1 mm to 7.7 mm (0.28 in to 0.3 in)
In order to maintain the insulation route, you must use insulated cable lugs or you must insulate the crimping
zone (for example, by using heat-shrink tube insulation)
Siemens recommends ring-type lugs of the PIDG series made by Tyco Electronics.
Use copper conductors only, at least certified for a temperature of +105 °C. Use prepared solid conductors
intended for single or multi-wiring connection, maximum 2 wires per pole, and for usage of ferrules, crimped-
on pressure wire connectors (ring-type and pin-type).
2 terminal lugs can be installed for each connection.
[dwklest1-030211-01.tif, 1, --_--]
Figure 5-28 Example of a Current Terminal with Connection of Cross Connectors and Single Cables
[dwklest2-030211-01.tif, 1, --_--]
Figure 5-29 Example of a Current Terminal with Connection of 2 Single Cables
You can connect solid conductors as well as stranded-wire conductors with ring-type lug or bootlace ferrule.
For each connection, you can install up to 2 single cables of the same type and the same cross-section.
Working on the Device
5.7 Installing Current and Voltage Terminals
186 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
