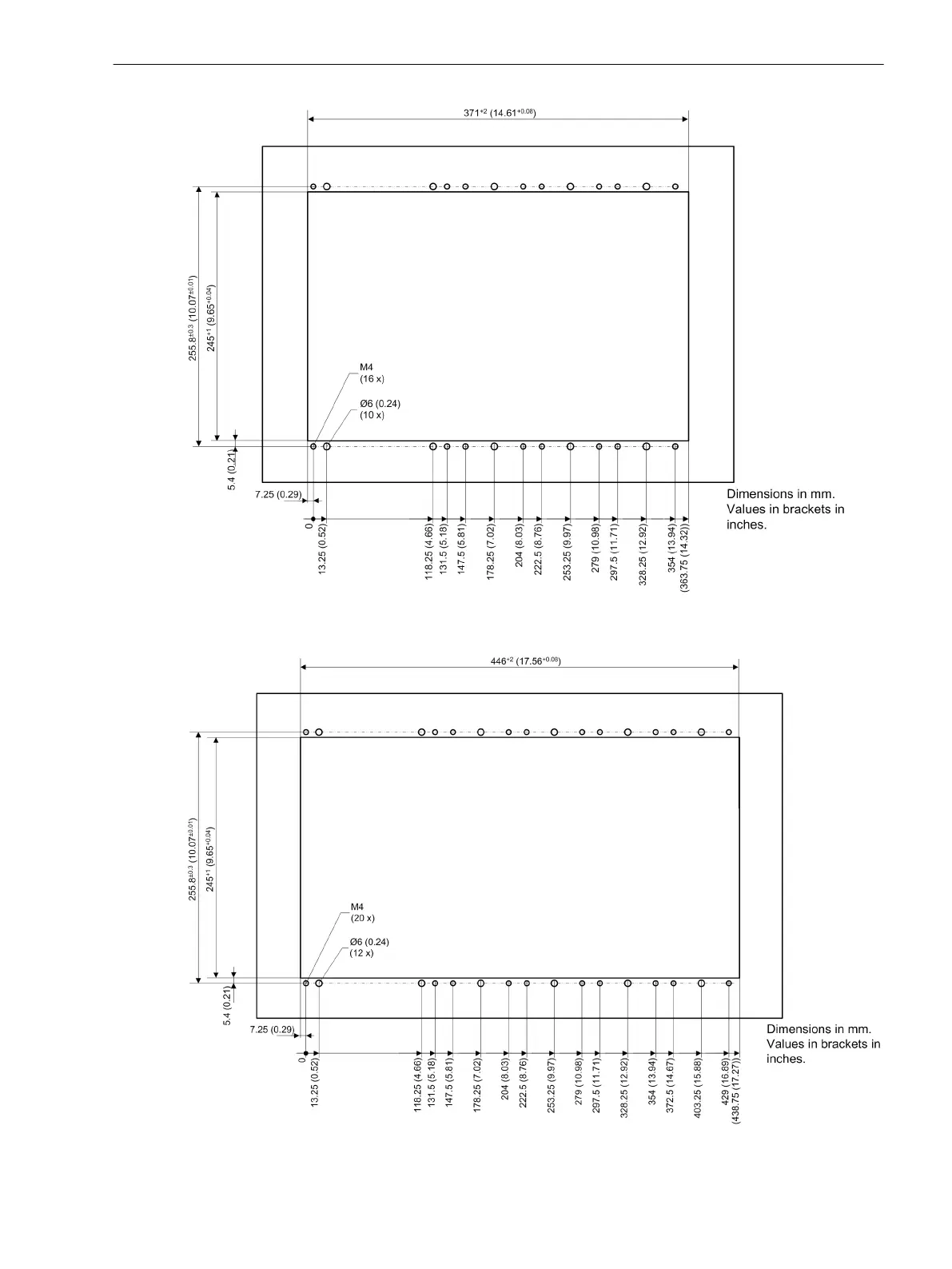

Figure 6-4
Cut-Out Widths and Drilling Pattern – 5/6 Device, 1st Device Row
[dw_z1_1-1, 2, en_US]
Figure 6-5
Cut-Out Widths and Drilling Pattern – 1/1 Device, 1st Device Row
Technical Data
6.14 Assembly Dimensions
