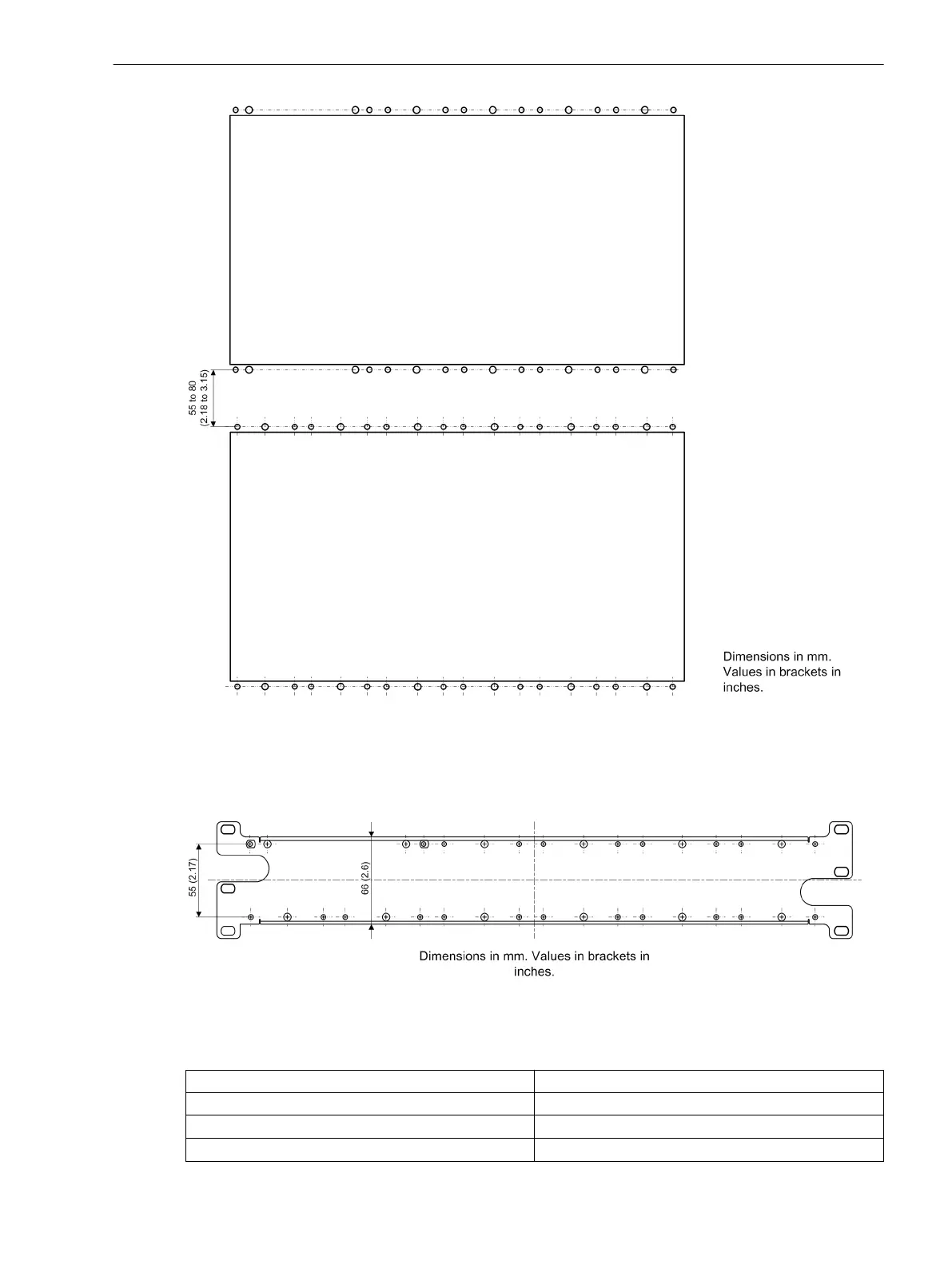

Figure 6-11
Drilling Pattern – 1/1 Devices, 1st and 2nd Device Row
Siemens recommends a drilling space of at least 55 mm (2.17 in) between the 1st and 2nd device row. Due to
the connecting-cable length, the maximum space may be approx. 80 mm (3.15 in). The length of the cable is
890 mm (35.04 in) from the center of the plug to the center of the plug.
[dw_angle rail, 1, en_US]
Figure 6-12 Angle Rail for Connection of the 1st and 2nd Device Row
Table 6-6 Cut-Out Widths
Width of the Assembly Opening in mm (in Inches)
1/3 device (base module)
146
+2
mm (5.75
+0.08
)
1/2 device (base module with one expansion module)
221
+2
mm (8.7
+0.08
)
2/3 device (base module with 2 expansion modules)
296
+2
mm (11.65
+0.08
)
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 221
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
