Surface-Mounted Devices with Integrated On-Site Operation Panel (Modular Device)
[dwosopin-070211-01.tif, 2, en_US]

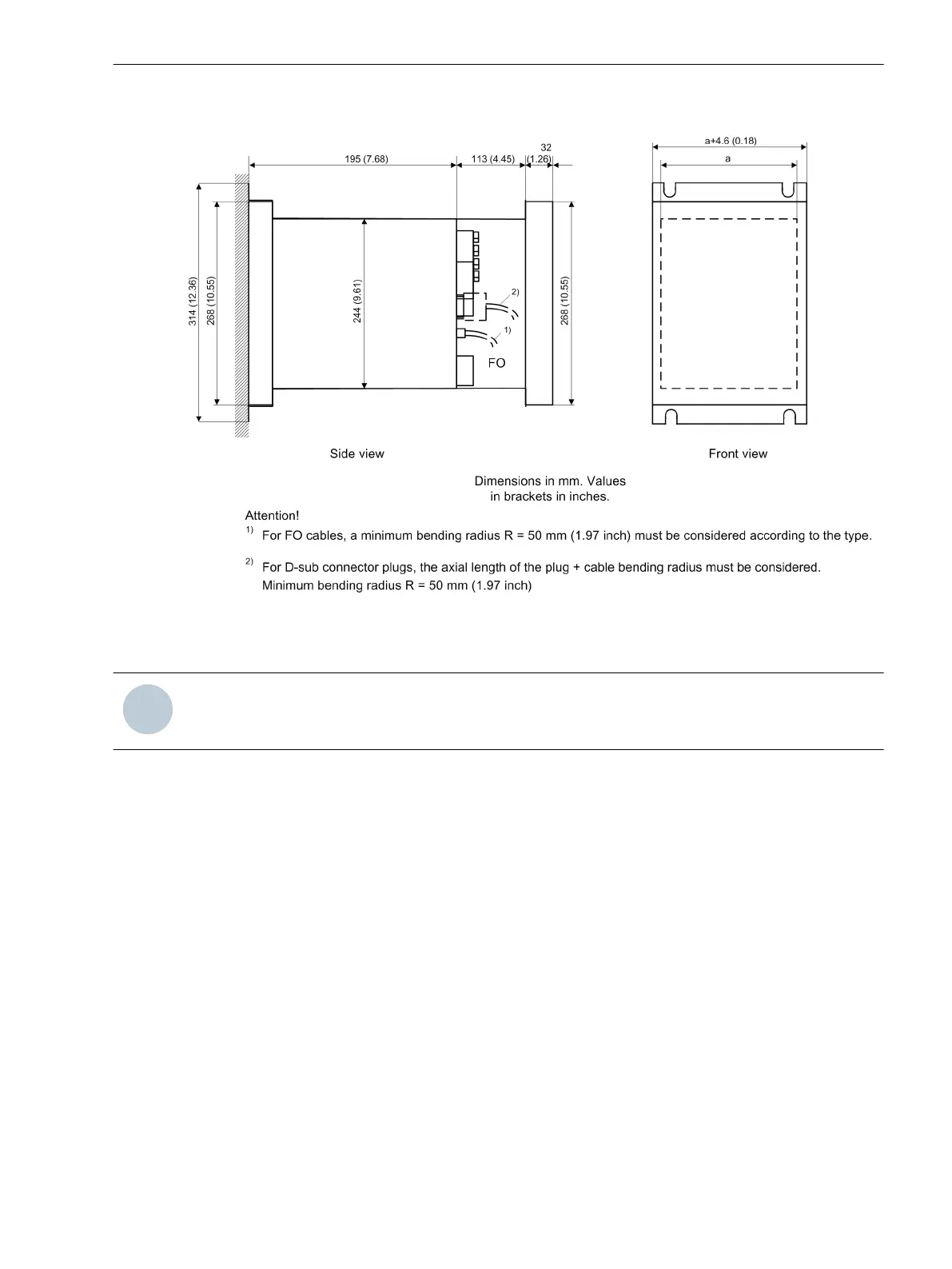

Figure 6-14
1/3-Surface-Mounted Device with Integrated On-Site Operation Panel, Dimensions from the
Side and Front Views
NOTE
For surface-mounted devices, make sure that the drillings fit for a screw of the size M6.
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 223
C53000-G5040-C002-C, Edition 10.2017
