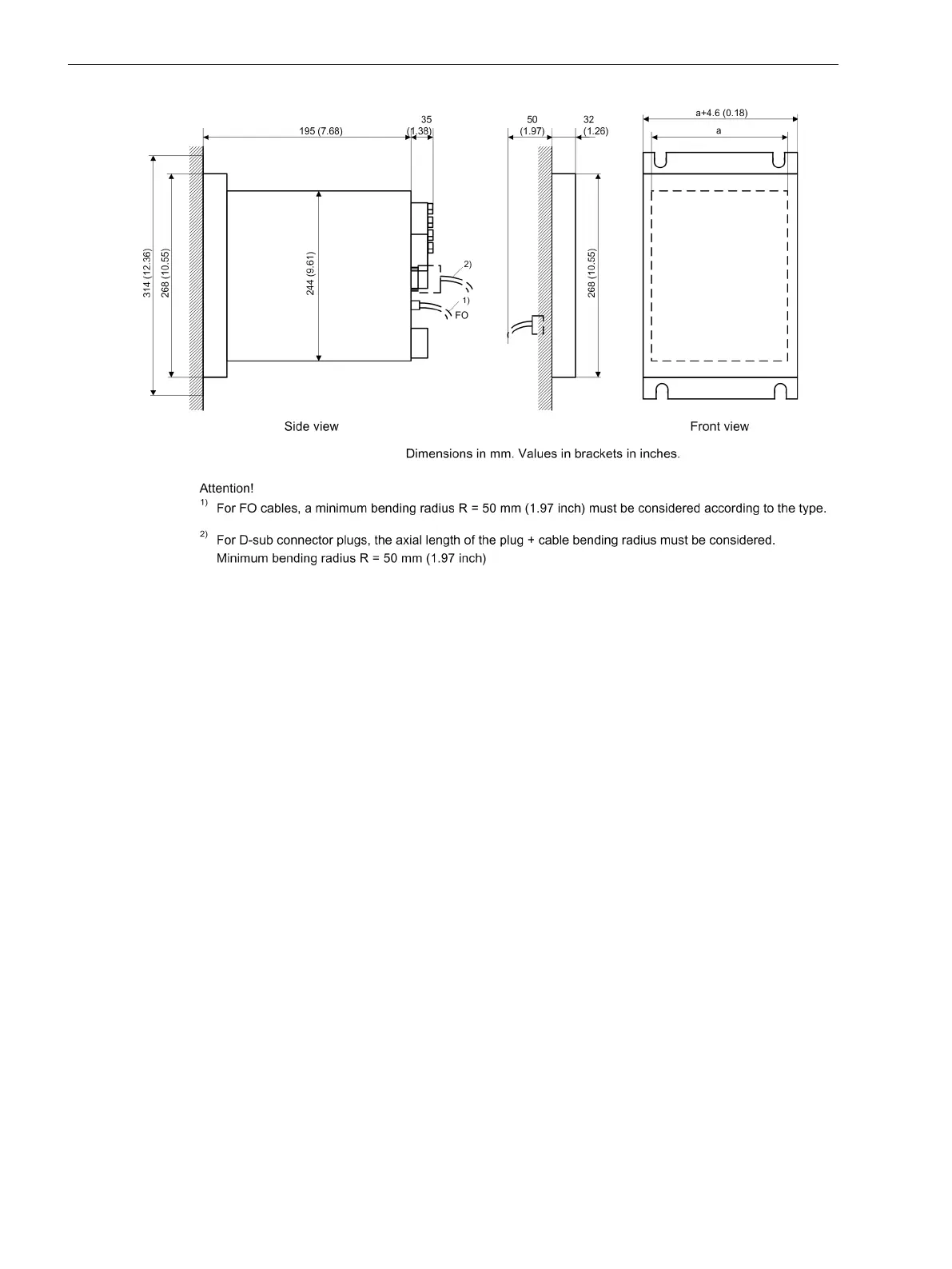

Figure 6-32
Surface-Mounted Device with Detached On-Site Operation Panel, Dimensions in the Side and
Front Views
Refer to Table 6-7. for the variable dimension a.
The drilling patterns correspond to the figures Figure 6-15 to Figure 6-24.
The cable length for the detached operation panel is up to 5 m (196.85 in).
Technical Data
6.14 Assembly Dimensions
234 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
