NOTE
x corresponds to the slot in the 19-inch rack.
Terminal and Connection Diagram
For the binary inputs and outputs, the x corresponds to the slot in the 19-inch rack.
[cdio201x-290812-01.tif, 1, en_US]
Figure 3-14

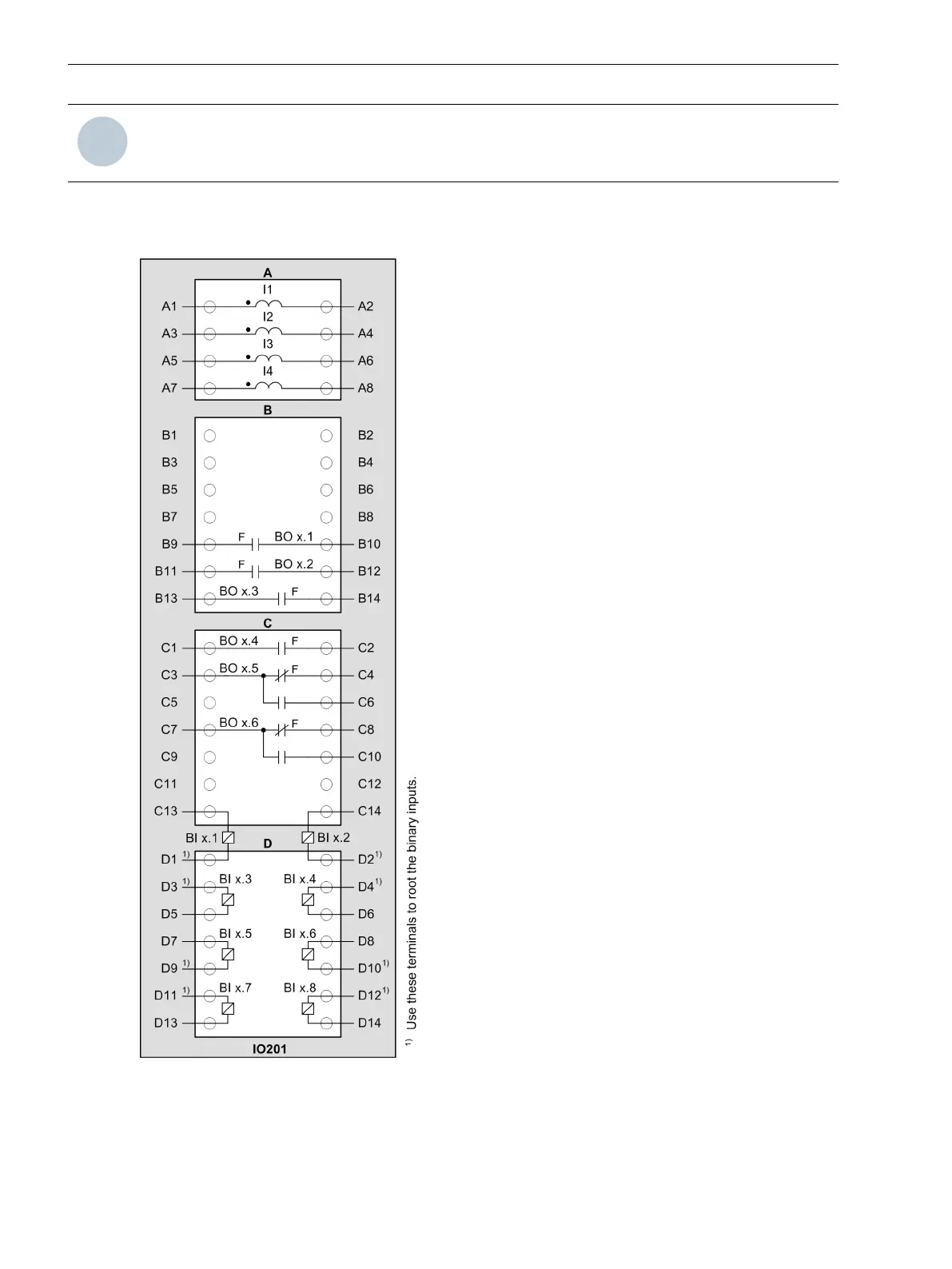

IO201 – Terminal Diagram
