Terminal and Connection Diagram
NOTE
The polarities of the voltages at the binary inputs must not be reversed!
[cd_io231x, 2, en_US]

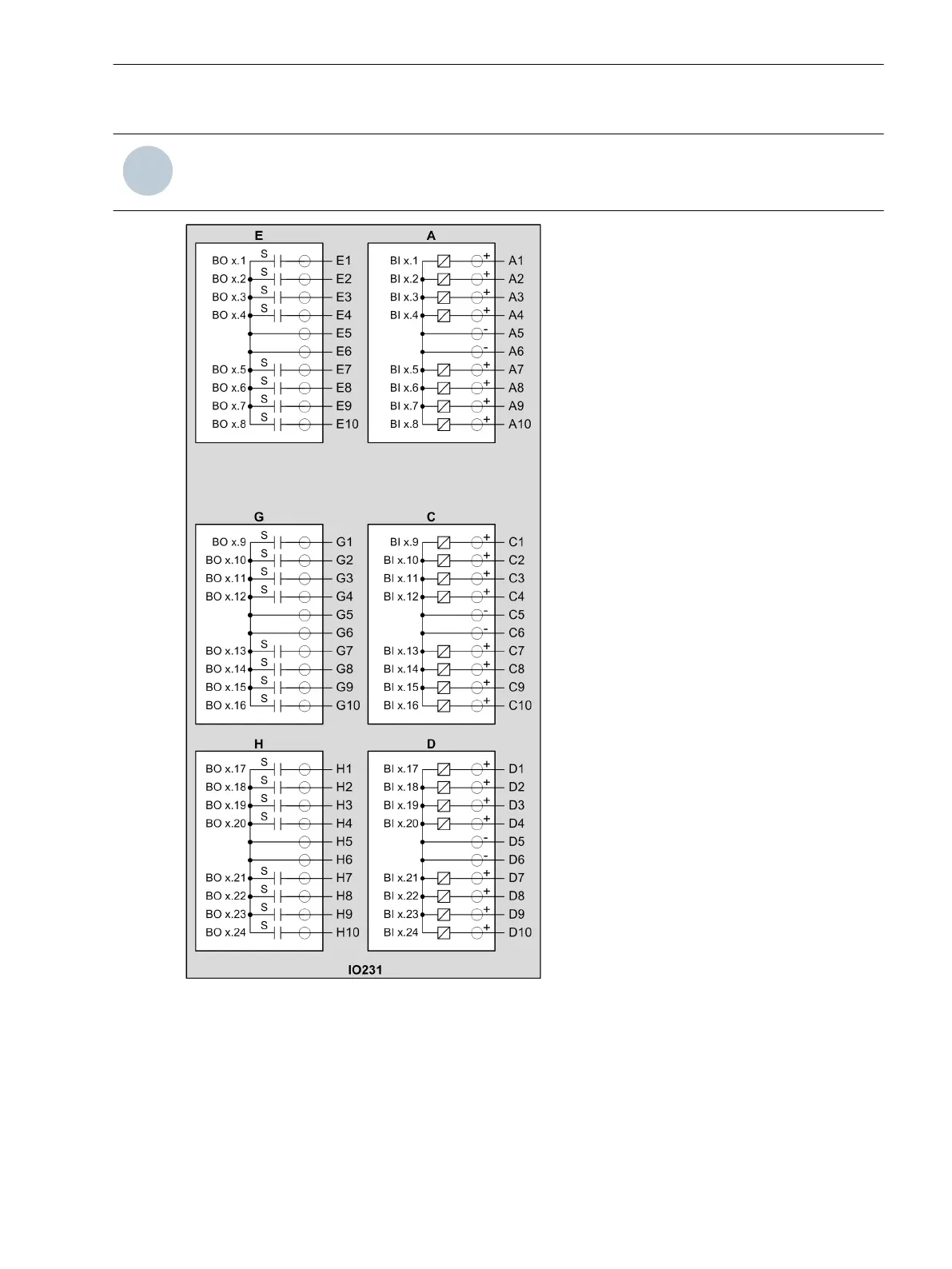

Figure 3-56
IO231 – Terminal Diagram
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 97
C53000-G5040-C002-C, Edition 10.2017
