2.11 Automatic Reclosure Function 79 (Optional)

SIPROTEC, 7SD80, Manual

E50417-G1140-C474-A1, Release date 09.2011

147

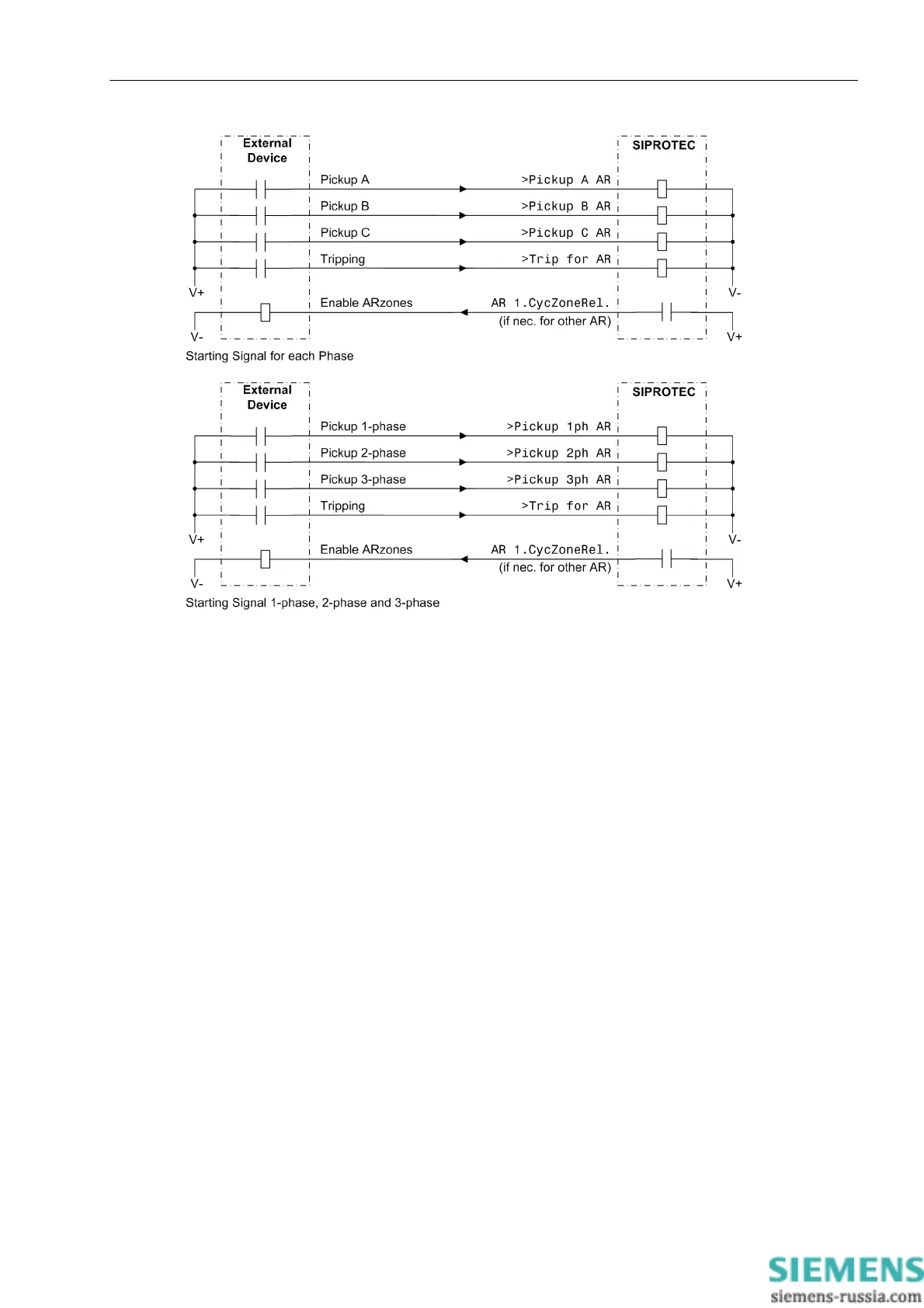

Figure 2-57 Connection example with external protection device for fault detection dependent dead time —

dead time control by pickup signals of the protection device; AR control mode = with PICKUP
