Siemens SIPROTEC 7SD80 - Pre-Defined CFC Charts

Appendix
A.5 Default Settings
SIPROTEC, 7SD80, Manual
E50417-G1140-C474-A1, Release date 09.2011
356
A.5.6 Pre-defined CFC Charts
Device and System Logic
A negator block of the slow logic (PLC1-BEARB) is created from the binary input „DataStop“ into the internal
single point indication „UnlockDT“.

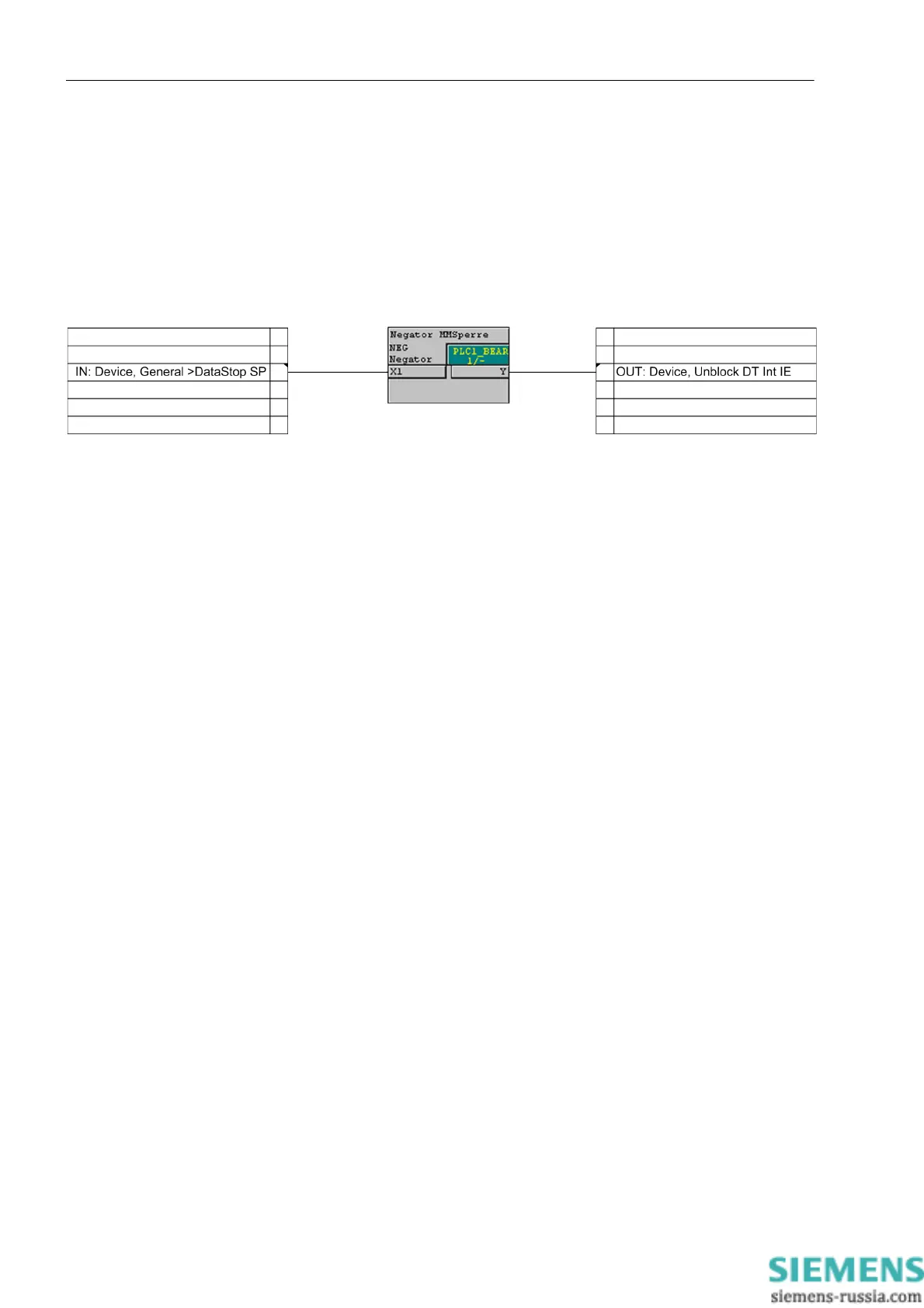

Figure A-19 Connection of input and output
