Appendix
A.5 Default Settings
SIPROTEC, 7SD80, Manual
E50417-G1140-C474-A1, Release date 09.2011
353
A.5.5 Default Display
A number of pre-defined measured value pages are available depending on the device type. The start page of
the default display appearing after startup of the device can be selected in the device data via parameter 640
Start image DD.
for the 6-line display of the 7SD80

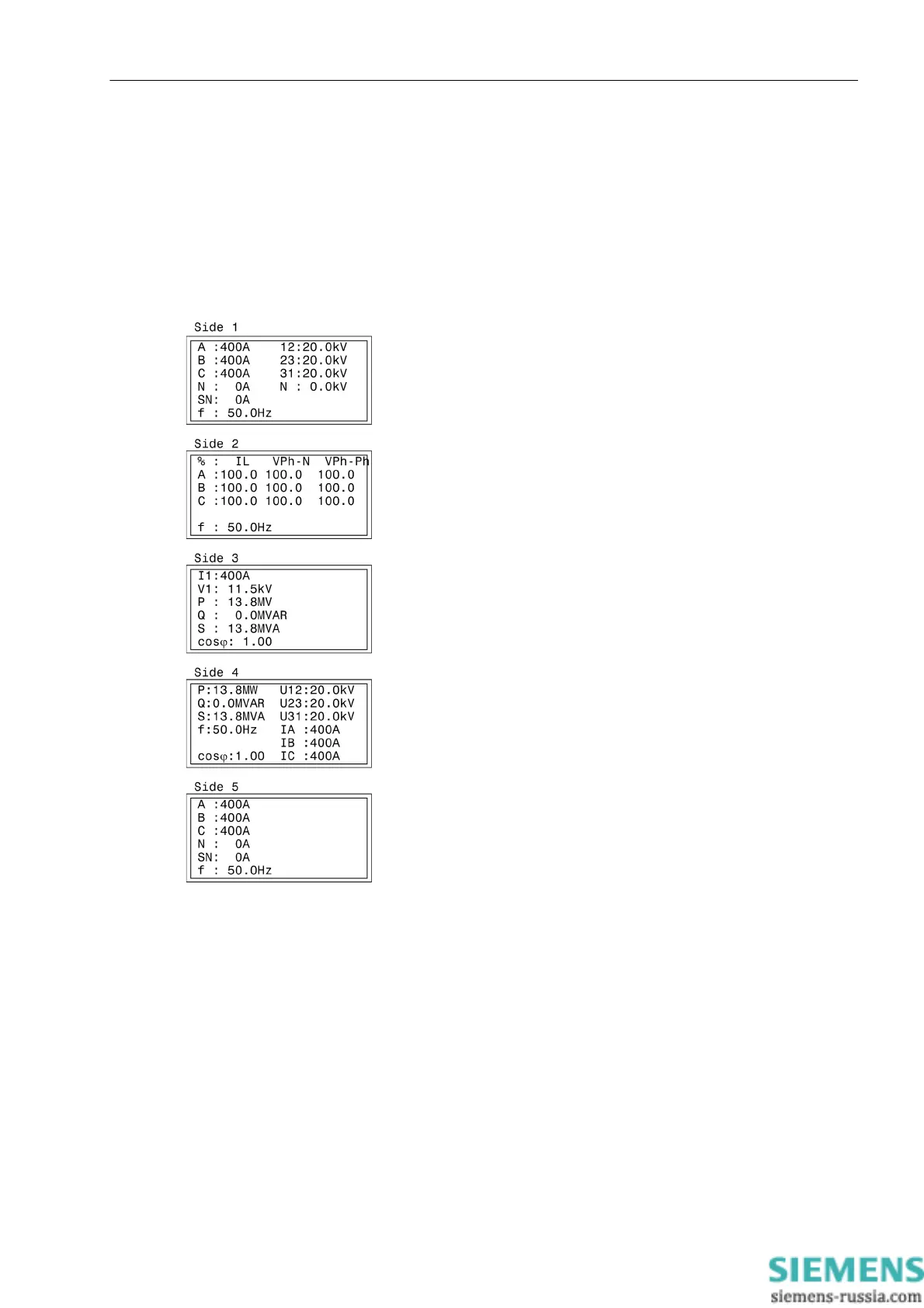

Figure A-12 Default display of the 7SD80 for models with V without extended measured values
For V0/I0 Ï• measurement, the measured ground current INB is shown under N and the ground current IN or
INs under Ns.
