Siemens SIPROTEC 7SD80 - Panel Surface Mounting (Housing Size 1;6)

Technical Data
4.19 Dimensions
SIPROTEC, 7SD80, Manual
E50417-G1140-C474-A1, Release date 09.2011
331
4.19.2 Panel Surface Mounting (Housing Size 1/6)

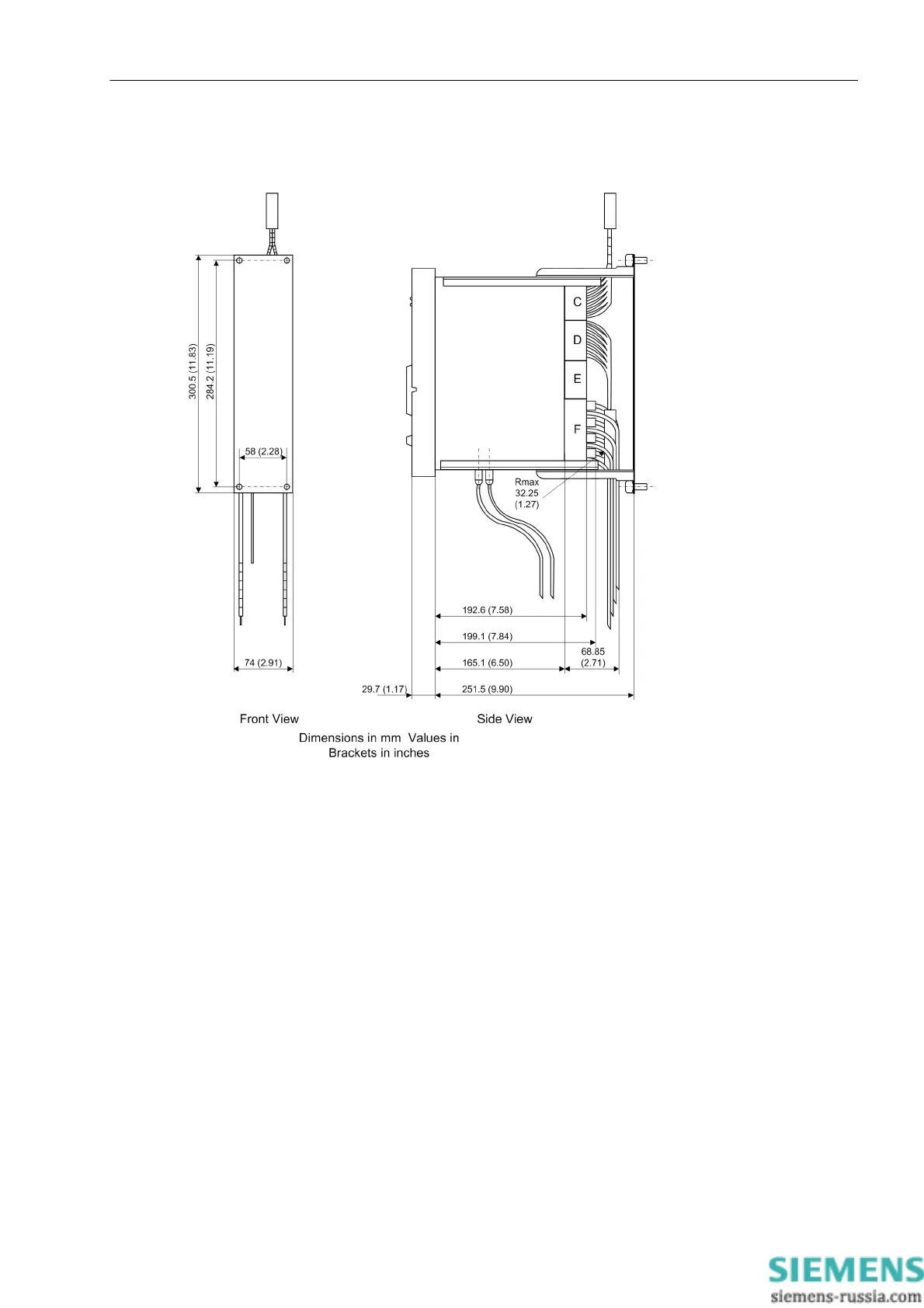

Figure 4-8 Dimensional drawing of a 7SD80 for panel surface mounting (housing size
1
/
6
)
