Technical Data
4.19 Dimensions
SIPROTEC, 7SD80, Manual
E50417-G1140-C474-A1, Release date 09.2011
330
4.19 Dimensions
4.19.1 Panel Flush Mounting and Cabinet Flush Mounting (Housing Size 1/6)

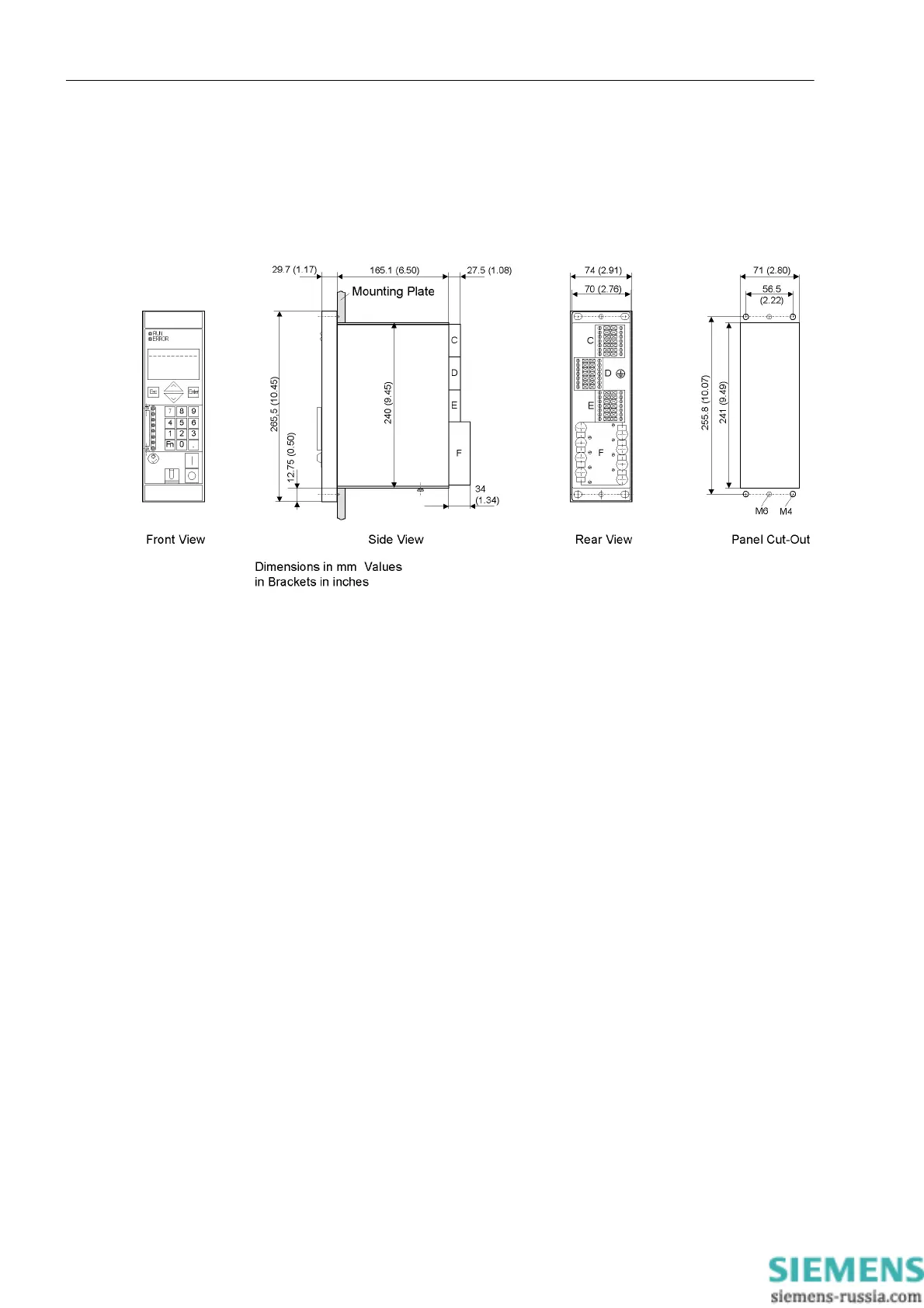

Figure 4-7 Dimensional drawing of a 7SD80 for panel flush mounting and cabinet flush mounting (housing
size
1
/
6
)
Note: A set of mounting brackets (consisting of upper and lower mounting rail) (order no. C73165-A63-D200-
1) is required for cabinet flush mounting.
Provide for sufficient space at the device bottom side or below the device to accommodate the cables
of the communication modules.
