Appendix
A.2 Terminal Assignments
SIPROTEC, 7SD80, Manual
E50417-G1140-C474-A1, Release date 09.2011
339
A.2 Terminal Assignments
A.2.1 7SD80 — Housing for Panel Flush Mounting, Cabinet Flush Mounting and
Panel Surface Mounting
7SD801*

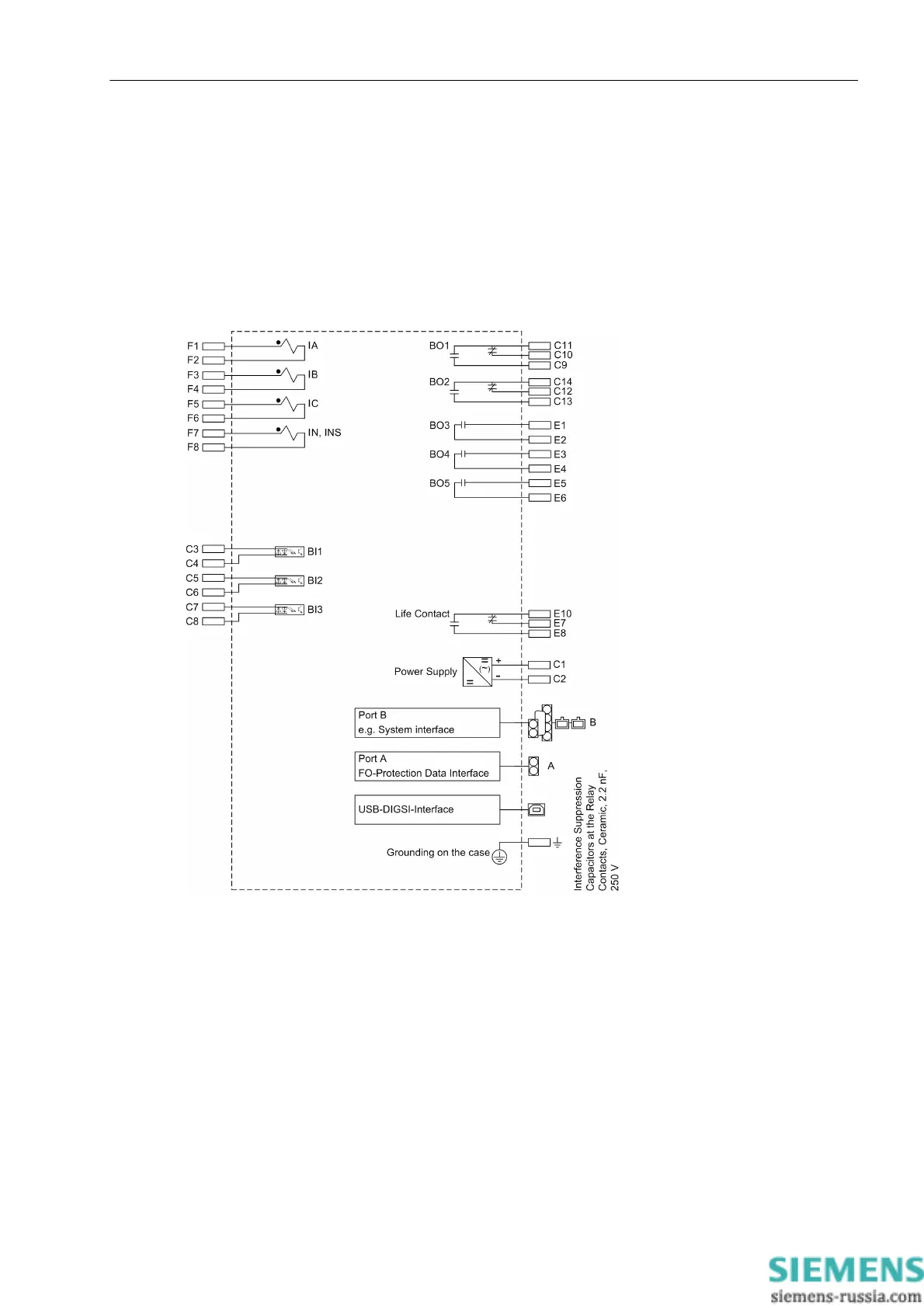

Figure A-1 Overview diagram 7SD801*
