Siemens SIPROTEC 7SD80 User Manual

Mounting and Commissioning
3.2 Checking Connections
SIPROTEC, 7SD80, Manual
E50417-G1140-C474-A1, Release date 09.2011
252
3.2 Checking Connections
3.2.1 Checking the Data Connections of the Interfaces
Pin Assignment
The following tables show the pin assignment of the various interfaces. The position of the connections can be
seen in the following figures.

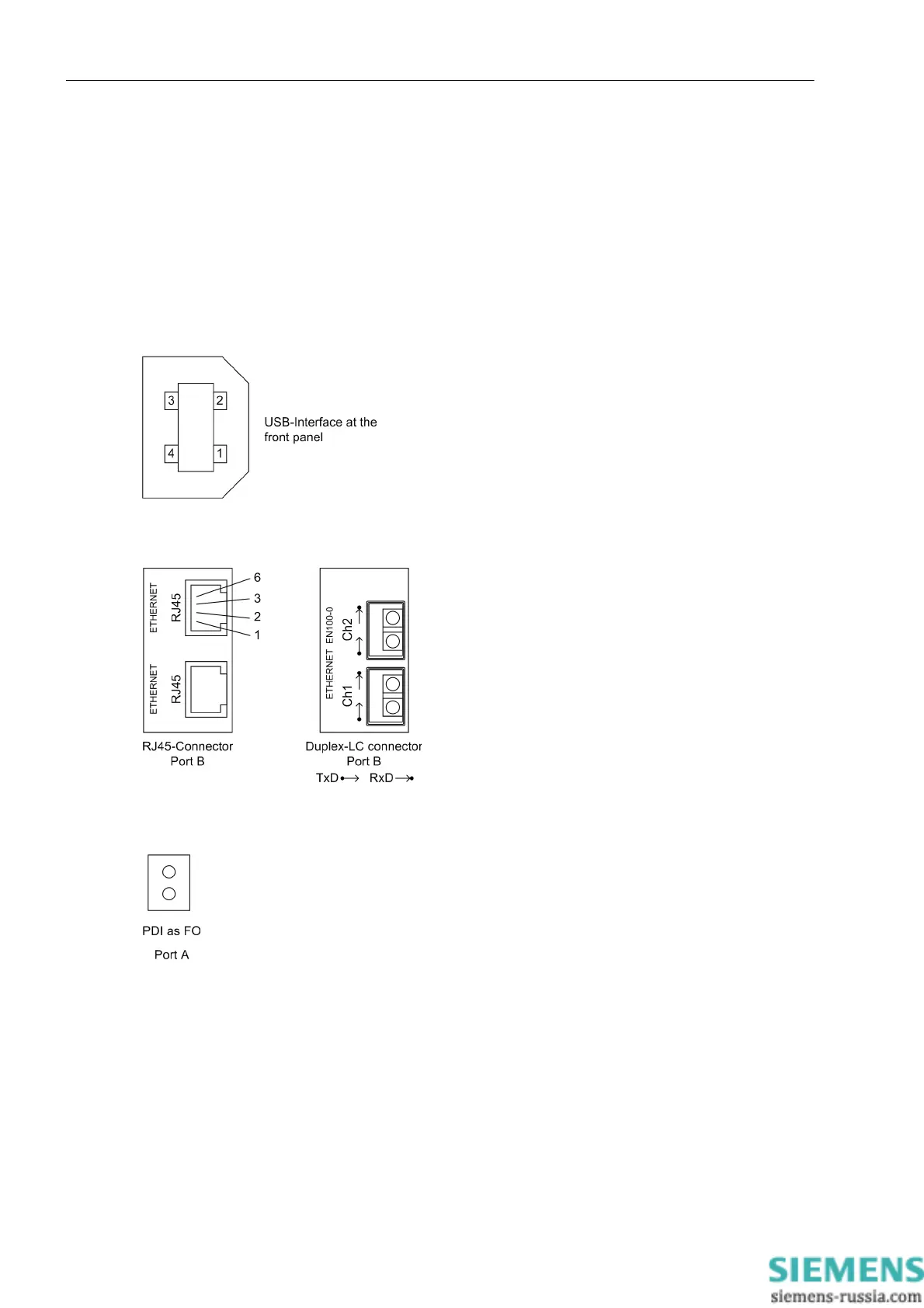

Figure 3-15 USB interface
Figure 3-16 Ethernet connections at the device bottom side
Figure 3-17 FO protection data interface at the device bottom side, port A
