A.5 Default Settings
SIPROTEC, 7SD80, Manual
E50417-G1140-C474-A1, Release date 09.2011
355

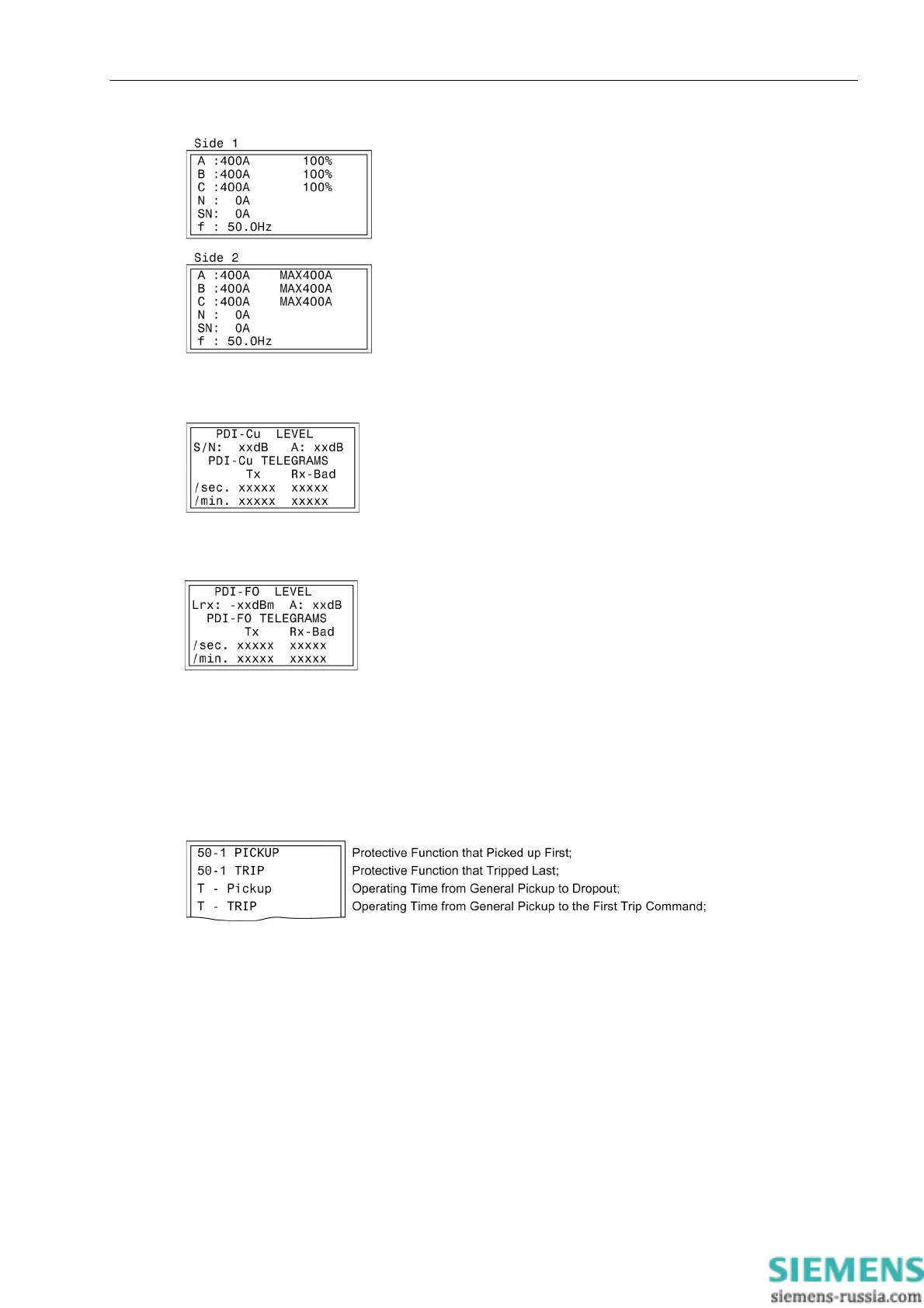

Figure A-15 Default display of the 7SD80 for models without V with extended measured values
Figure A-16 Default display of the device with Cu protection interface
Figure A-17 Default display of the device with fiber-optic protection interface
Spontaneous Fault Display
After a fault has occurred, the most important fault data are automatically displayed after general device pickup
in the order shown in the picture below.
Figure A-18 Representation of spontaneous messages on the device display
