Technical Data
4.3 87 Differential Protection Phase Comparison Protection
SIPROTEC, 7SD80, Manual
E50417-G1140-C474-A1, Release date 09.2011
297
Pickup Characteristic

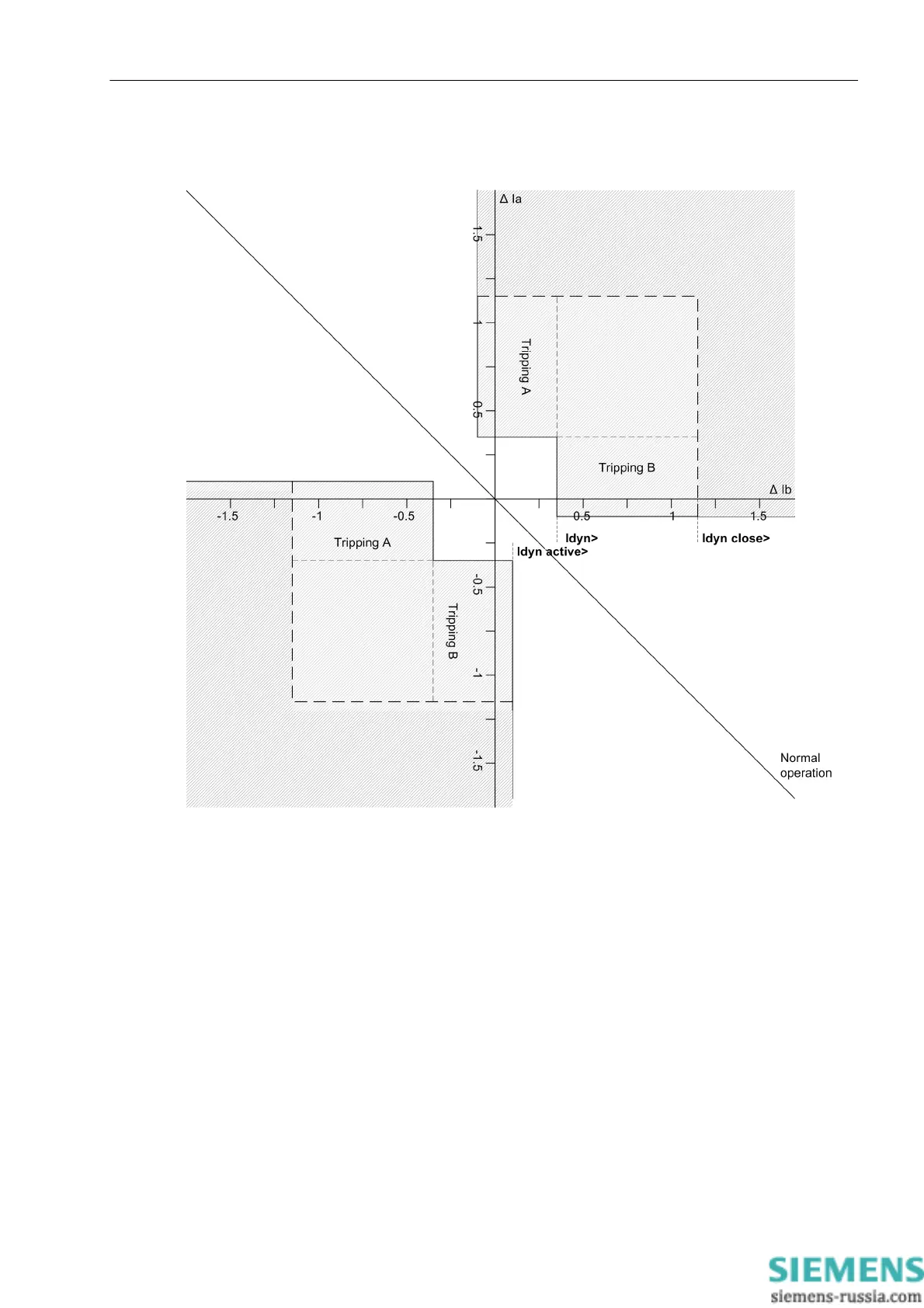

Figure 4-1 Dynamic pickup characteristic
