Reading Out Information
215
7SS52 V4 Manual
C53000-G1176-C182-3

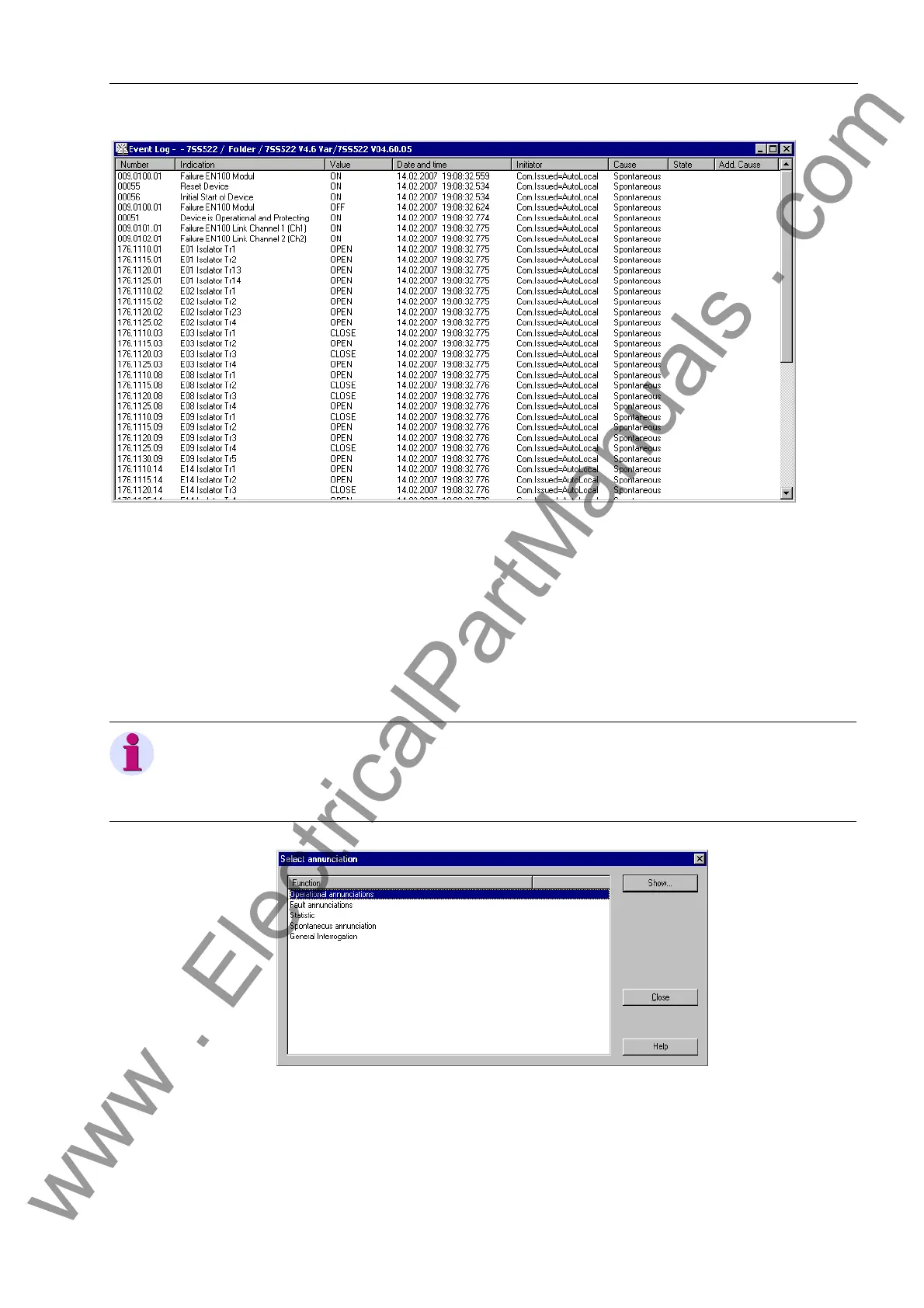

Figure 6-3 Examples of operational annunciations in DIGSI
To display operational events of a single bay unit (PC linked to central unit or bay unit)
proceed as follows:
 Open the corresponding bay unit in the DIGSI Manager.
 Open the window Select annunciations (Figure 6-4, page 215).
 Double-click Operational annunciations. The corresponding contents of the oper-
ational annunciation is displayed in another window.
Figure 6-4 Select annunciation window in DIGSI of the bay unit
Note
Operational annunciations, fault indications and measured values can also be re-
trieved via the operator panel of the central unit. If you want to know more, please read
the System Description /1/.
