Configuration
78
7SS52 V4 Manual
C53000-G1176-C182-3

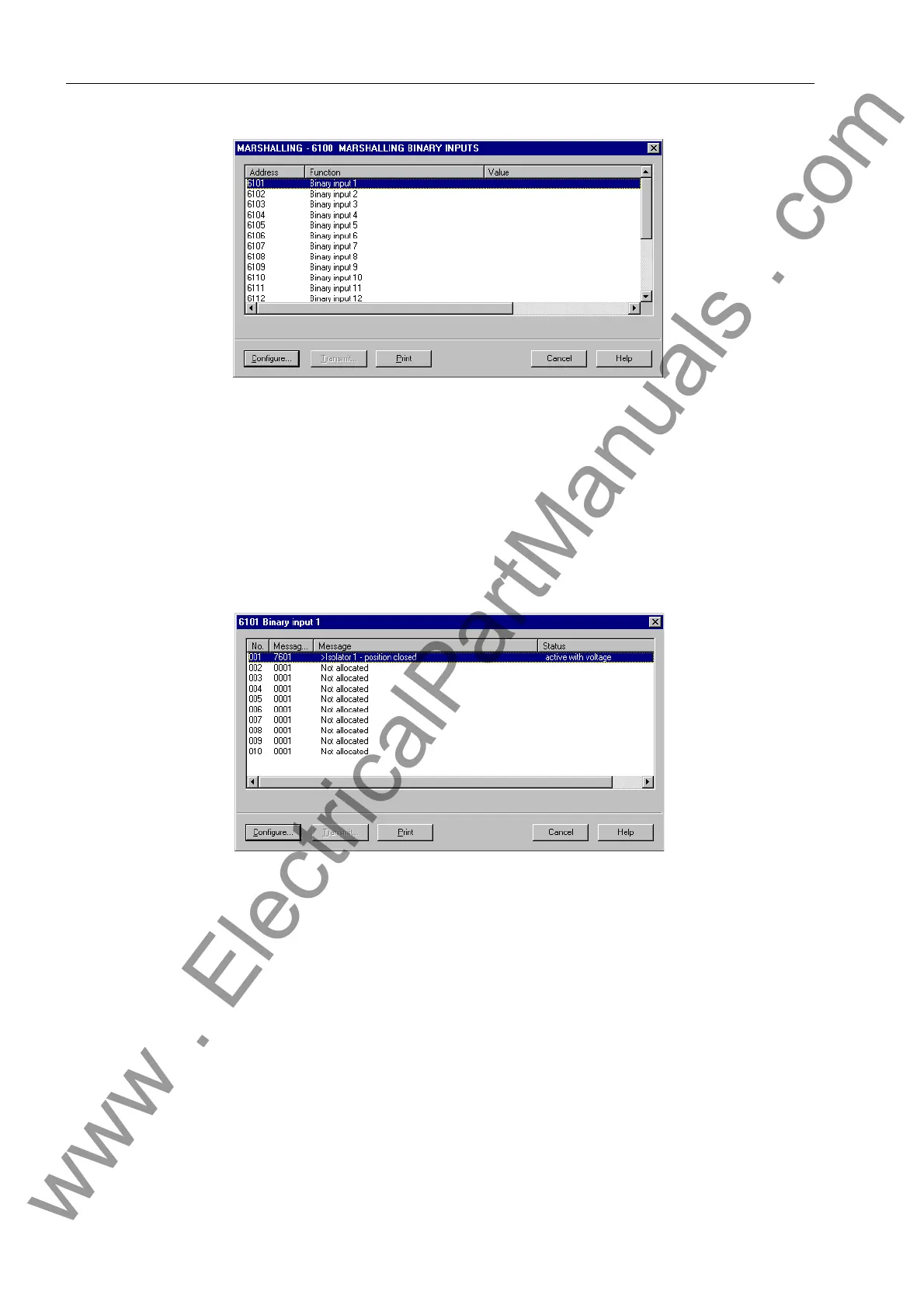

Figure 4-26 Marshalling the bay units - the dialog box Marshalling -
 Now select the name of the component to which you want to allocate one or several
indications. Subsequently click Configure.... A third dialog box opens. It gives an
overview of how many indications of the selected component can basically be allo-
cated and which indications are already marshalled. The display texts of these in-
dications are shown in the column Status. Those allocating positions that are still
empty are in the same column marked with the entry Not allocated.
Figure 4-27 Marshalling the bay units - the dialog box Binary input 1
 To allocate a further message select one of the entries marked Not allocated. To
modify an existing allocation select the display text of the marshalled message.
Subsequently click Configure.... Another dialog box opens. It offers you the selec-
tion of the display texts of all indications which can be marshalled to this compo-
nent.
