SINAMICS Engineering Manual – November 2015
Ó Siemens AG
325/528

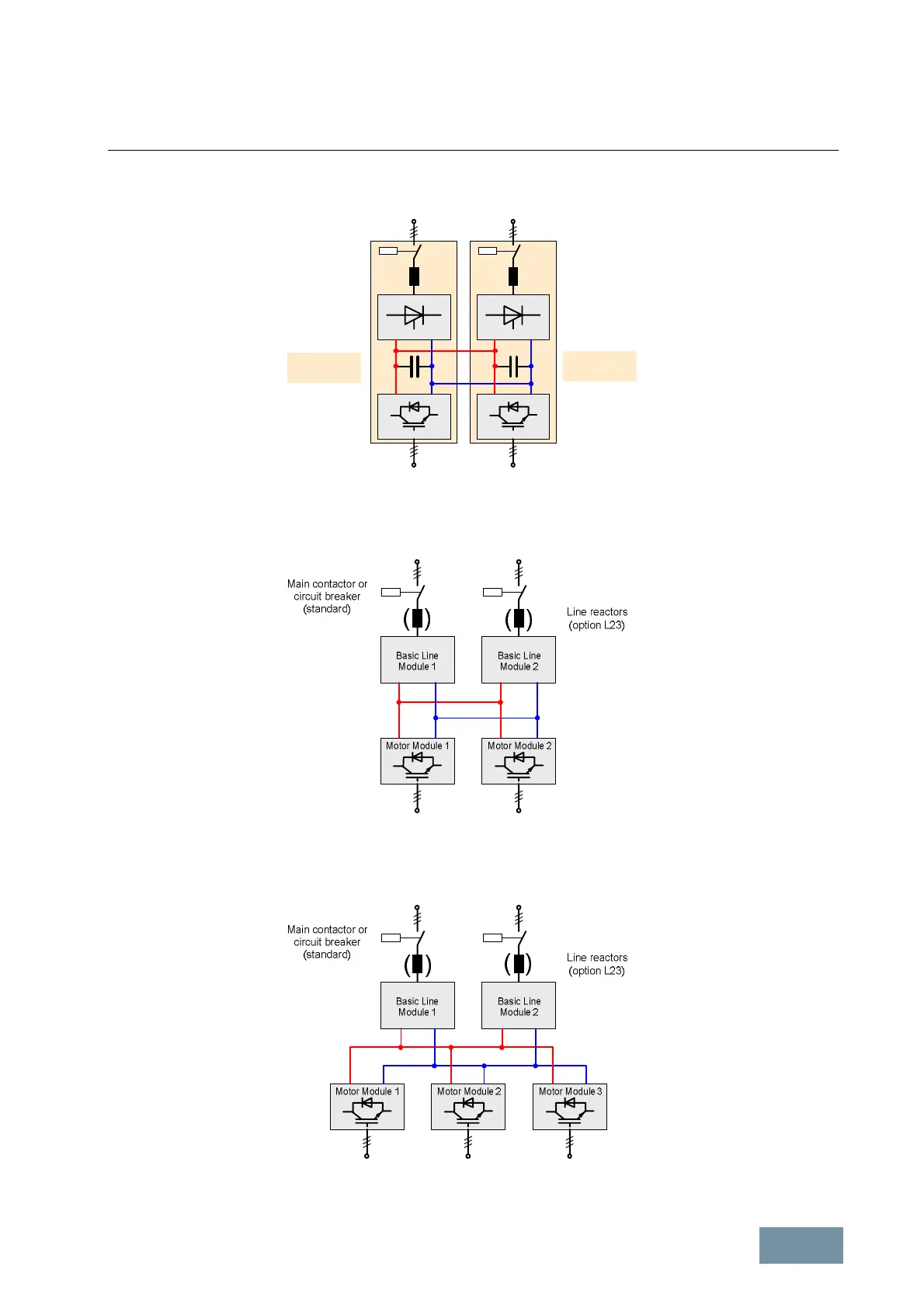

SINAMICS G150 parallel converters with power outputs of ≤ 1500 kW
This design variant is based on two SINAMICS G150 converter cabinet units.
Line reactors
(option L23)
Main contactor or
circuit breaker
(standard)
Partial
converter 1
Partial
converter 2
( )
( )
Design of SINAMICS G150 parallel converters with power outputs of ≤ 1500 kW
SINAMICS G150 parallel converters with power outputs of 1750 kW – 2400 kW
This design variant is based on two SINAMICS Basic Line Modules and two SINAMICS Motor Modules.
Design of SINAMICS G150 parallel converters with power outputs of 1750 kW – 2400 kW
SINAMICS G150 parallel converters with power output of 2700 kW
This design variant is based on two SINAMICS Basic Line Modules and three SINAMICS Motor Modules.
Design of SINAMICS G150 parallel converters with power output of 2700 kW
