For example, for a positive pulse, if you set t (pulse real width) ≥100ns and
t ≤ 300ns, the waveform will trigger.
--][-- (outside a range of time value): trigger when the positive or negative
pulse time of the input signal is greater than the specified upper limit of
time and lower than the specified lower limit of time value.

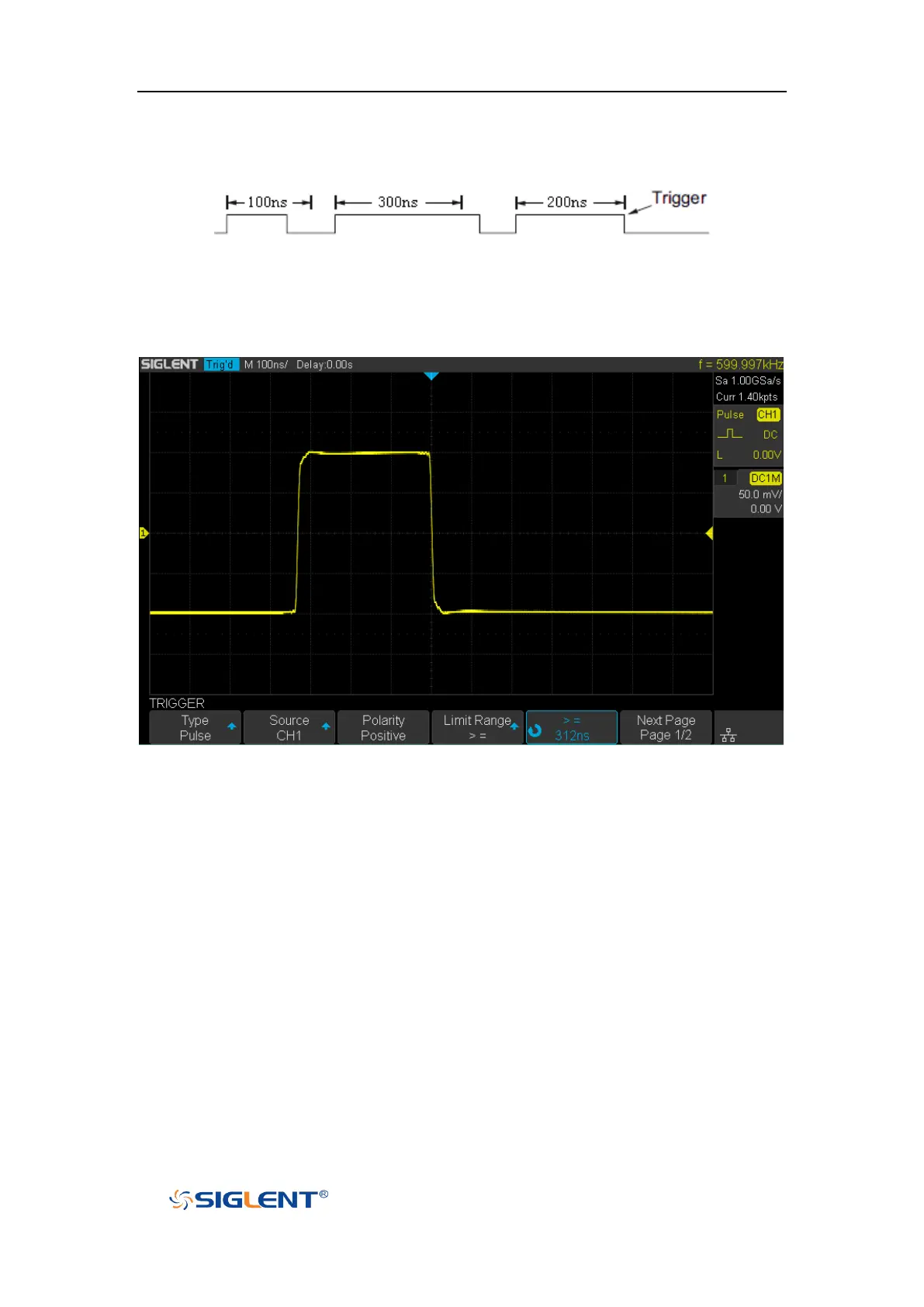

Figure 32 Pulse Trigger
Coupling and noise reject can be set in pulse trigger, see the sections "Trigger
Coupling" and "Noise Rejection" for details.
