SDS1000X-E&SDS1000X-U User Manual
145

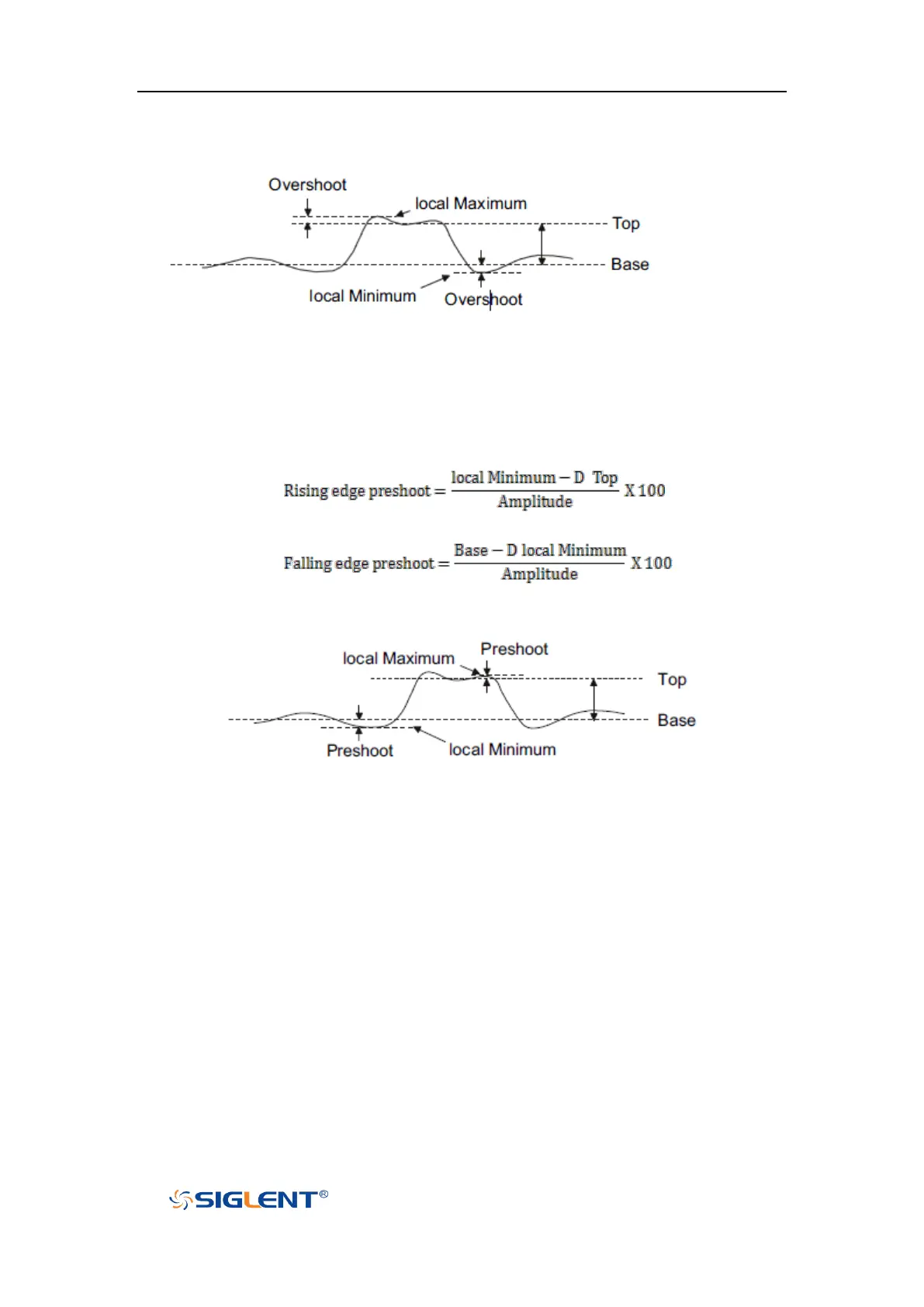

Figure 87 Overshoot
14. Preshoot: Preshoot is distortion that precedes a major edge transition
expressed as a percentage of Amplitude. The X cursors show which edge is
being measured (edge closest to the trigger reference point).
Figure 88 Preshoot
15. Level@X: the voltage value between the trigger point and the vertical position
of the channel
Time Measurements
Time measurements include 11 kinds of time parameter measurements.
