Acquisition Mode
The acquisition mode is used to control how to generate waveform points from
sample points. The oscilloscope provides the following acquisition mode: Normal,
Peak Detect, Average and Eres.
1. Press the Acquire button on the front panel to enter the ACQUIRE function
menu;
2. Press the Acquisition softkey; then turn the Universal Knob to select the desired
acquisition mode and push down the knob to confirm. The default setup is
Normal.
Normal
In this mode, the oscilloscope samples the signal at equal time interval to rebuild
the waveform. For most of the waveforms, the best display effect can be obtained
using this mode. It is the default acquisition mode.

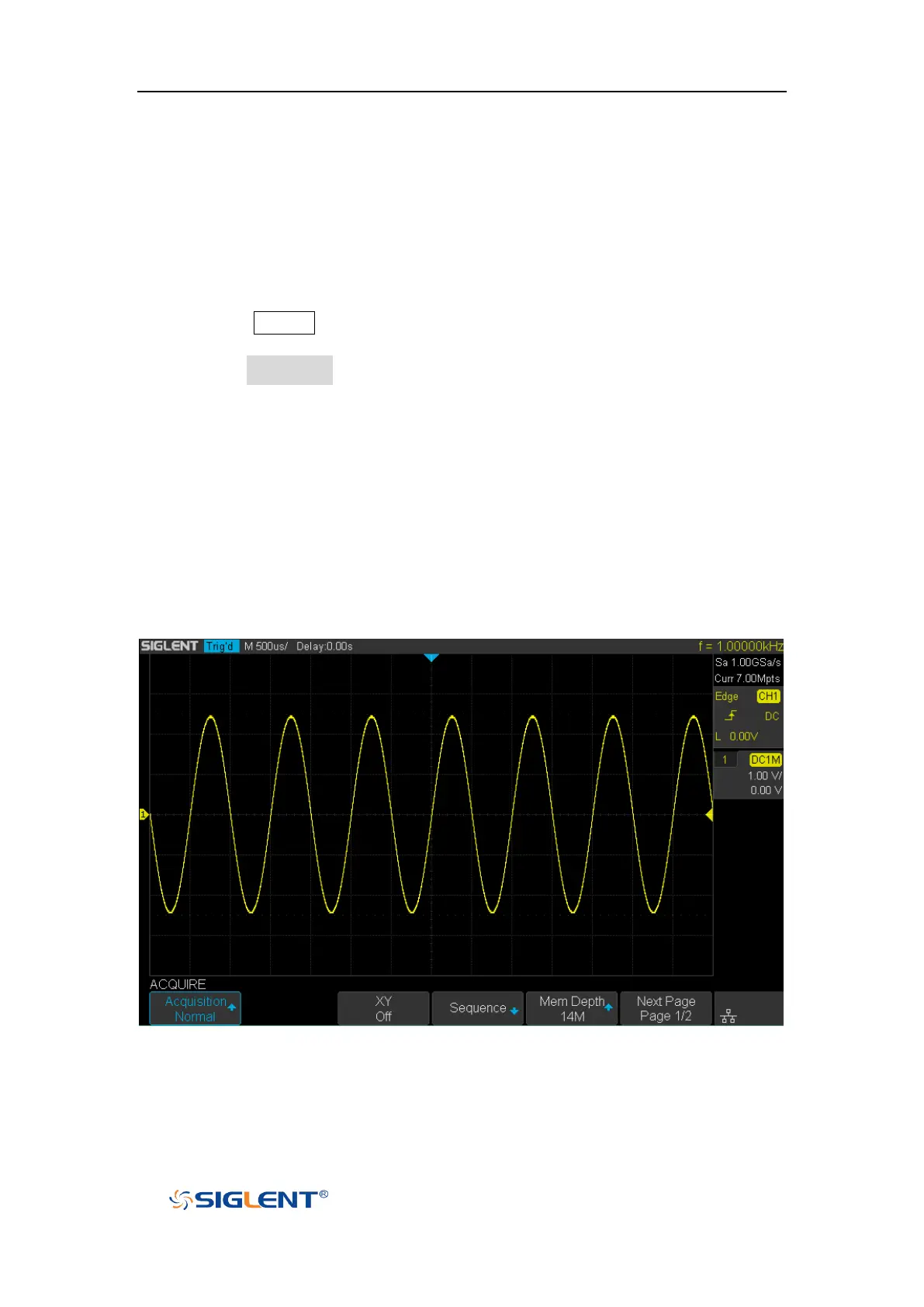

Figure 21 Acquisition System
