SDS1000X-E&SDS1000X-U User Manual
189
WWW.SIGLENT.COM

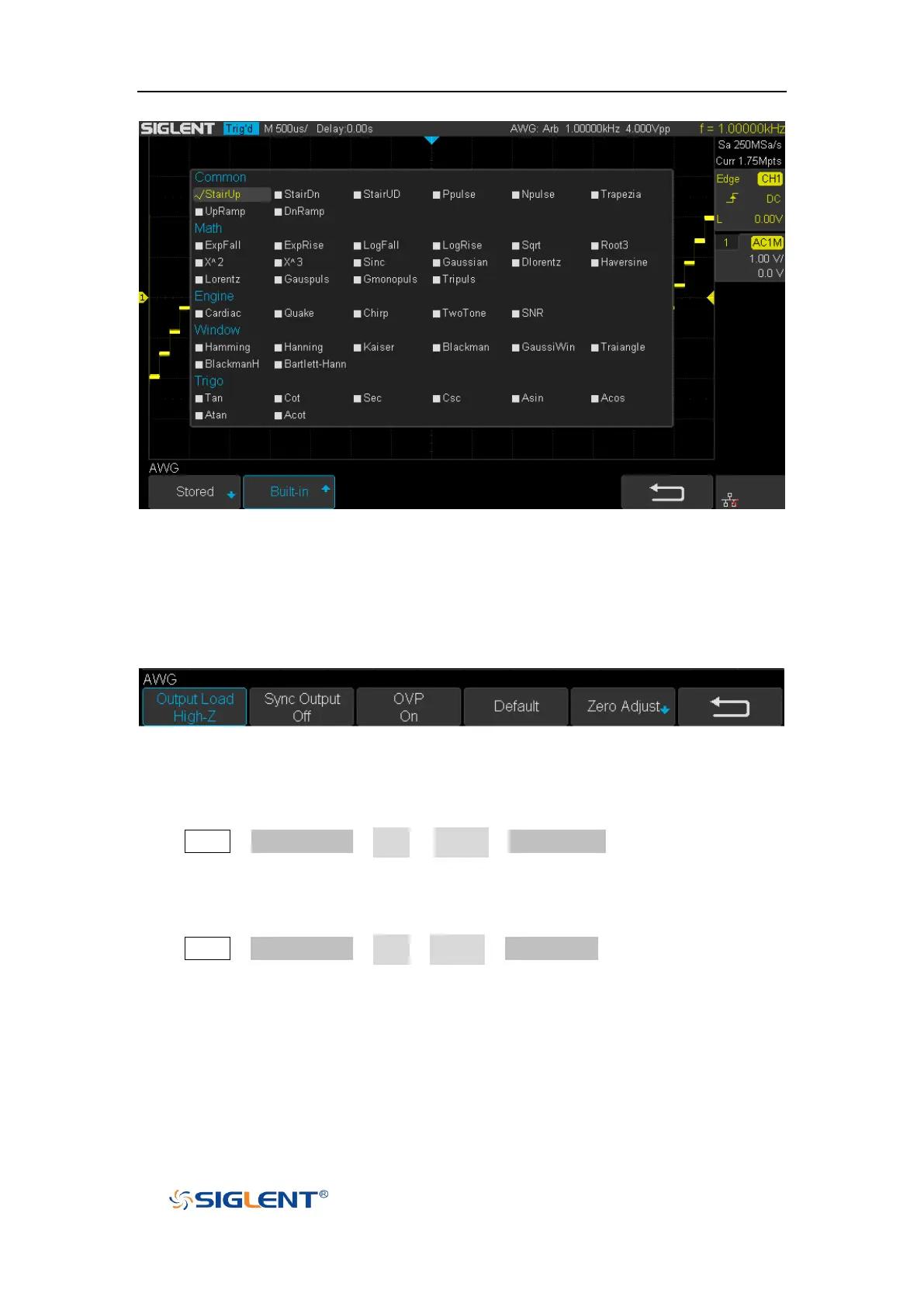

Figure 115 Built-in Arb Interface
Setting
Figure 116 AWG Setting Interface
Output Load
Press Utility→ NextPage4/4→ AWG → Setting→ Output Load to set High-Z or 50Ω.
Sync Output
Press Utility→ NextPage4/4→ AWG→ Setting→ Sync Output, the AWG provides Sync
output through the [Aux In/Out] connector on the rear panel. When the Sync Output
is on, the port can output a CMOS signal with the same frequency as basic
waveforms (except the Noise and DC), arbitrary waveforms, and modulated
waveforms (except external modulation).
OVP (Over Voltage Protection)
