SDS1000X-E&SDS1000X-U User Manual
18

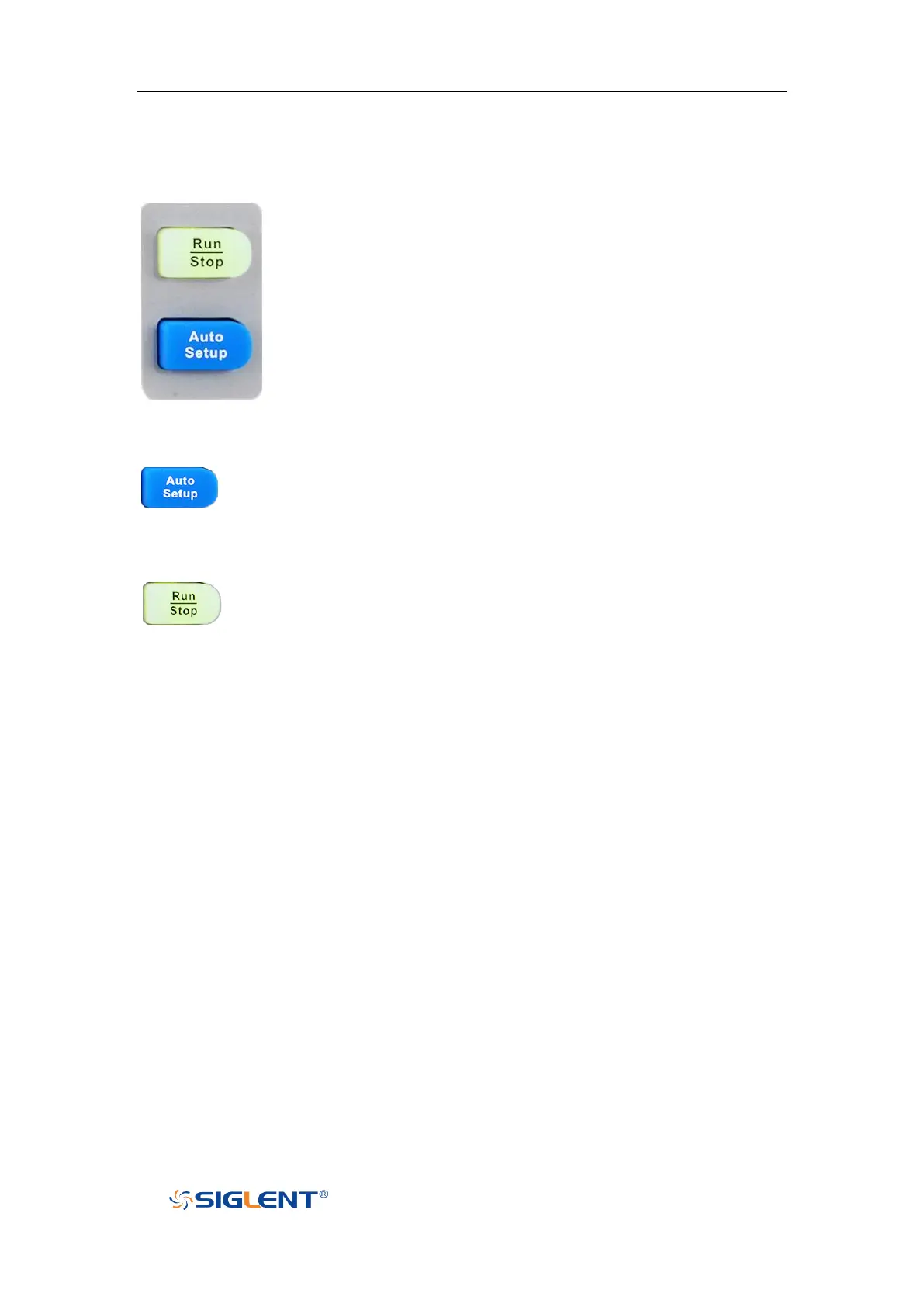

Run Control
: press this key to enable the waveform auto setting function. The
oscilloscope will automatically adjust the vertical scale, horizontal time
base and trigger mode according to the input signal to realize optimum
waveform display.
: press the button to set the acquisition state to Run or Stop.
In RUN state, the key is illuminated in yellow.
In STOP state, the key is illuminated in red.
