CAN Serial Decode
After completing the setup of can signal and trigger, we will decode CAN signals.
Operation steps as follows.
1. Press Decode→ Decode. Select one of the options from the Decode1 and
Decode2.
2. Press the Display and select On to display the result of decoding.
3. Press the List to enter the LIST function menu.
4. Press the Display and choose the same options as the first step.
5. Press the Lines and set the number of lines by Universal Knob. The range of the
lines is 1 to 7.
6. Press the Format to change the character encoding format of the decoder’s
result.
7. Press the Scroll and turn the Universal Knob to view all frames.
Interpreting CAN Decode.
The frame of decoding result:
 Arbitration field is displayed in frame
 Control field is displayed in frame
 Data field is displayed in frame
 CRC field is displayed in frame
 Indicates there is not enough space on the display to show complete
content of a frame and some content is hidden.

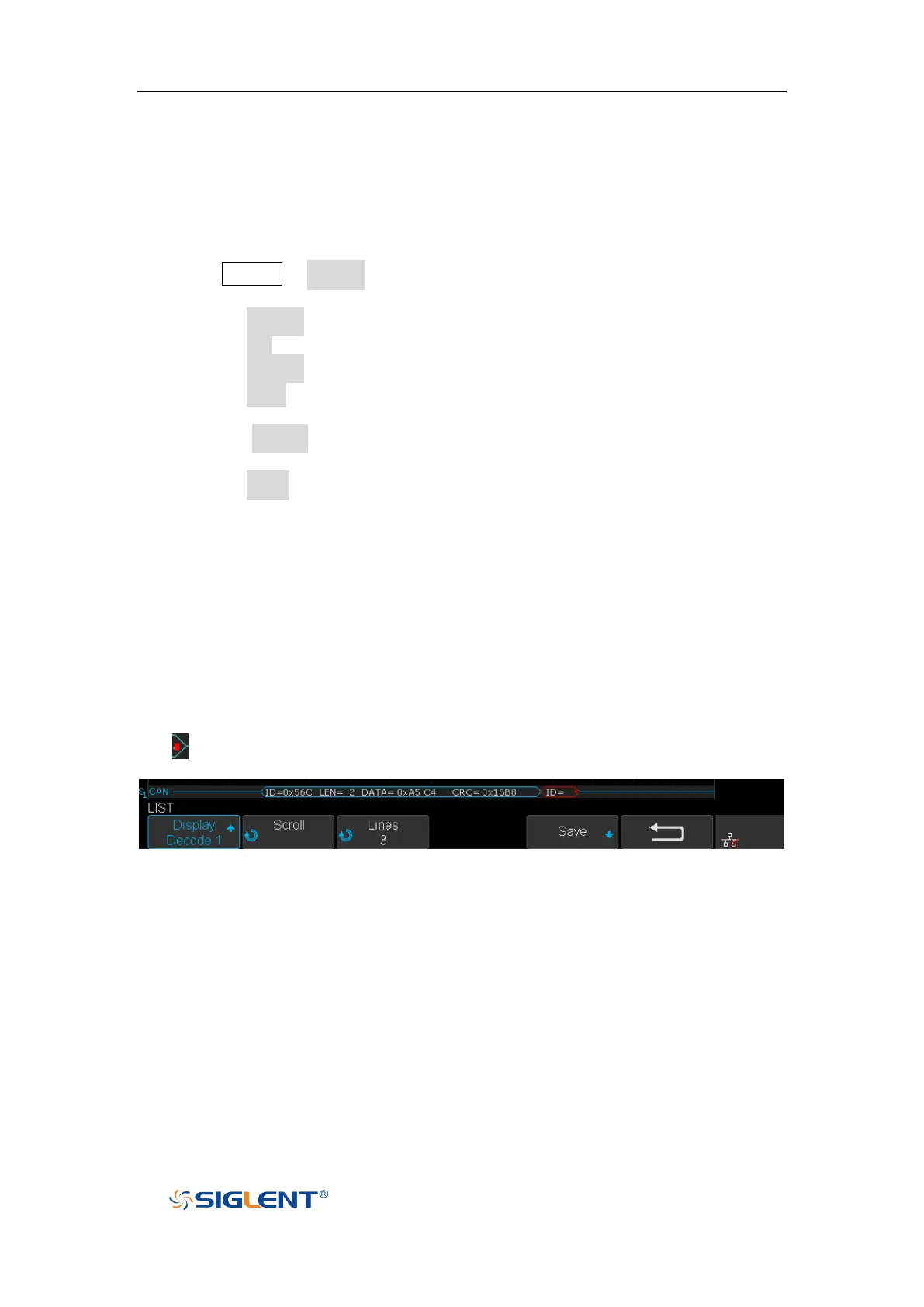

Figure 62 CAN Decode Bus Display
The list of decoding result:
 Time— the horizontal displacement between current frame and trigger
position.
 Type — the type of frames, “D” represents data frame, “R” represents
remote frame.
 ID — the id of frames, the oscilloscope can automatically detect the length
of frame’s id (11 bits or 27 bits).
 Length — the length of data field.
 Data — the value of data field.
 CRC — the value of CRC (Cyclic Redundancy Check) field.
