SDS1000X-E&SDS1000X-U User Manual
135

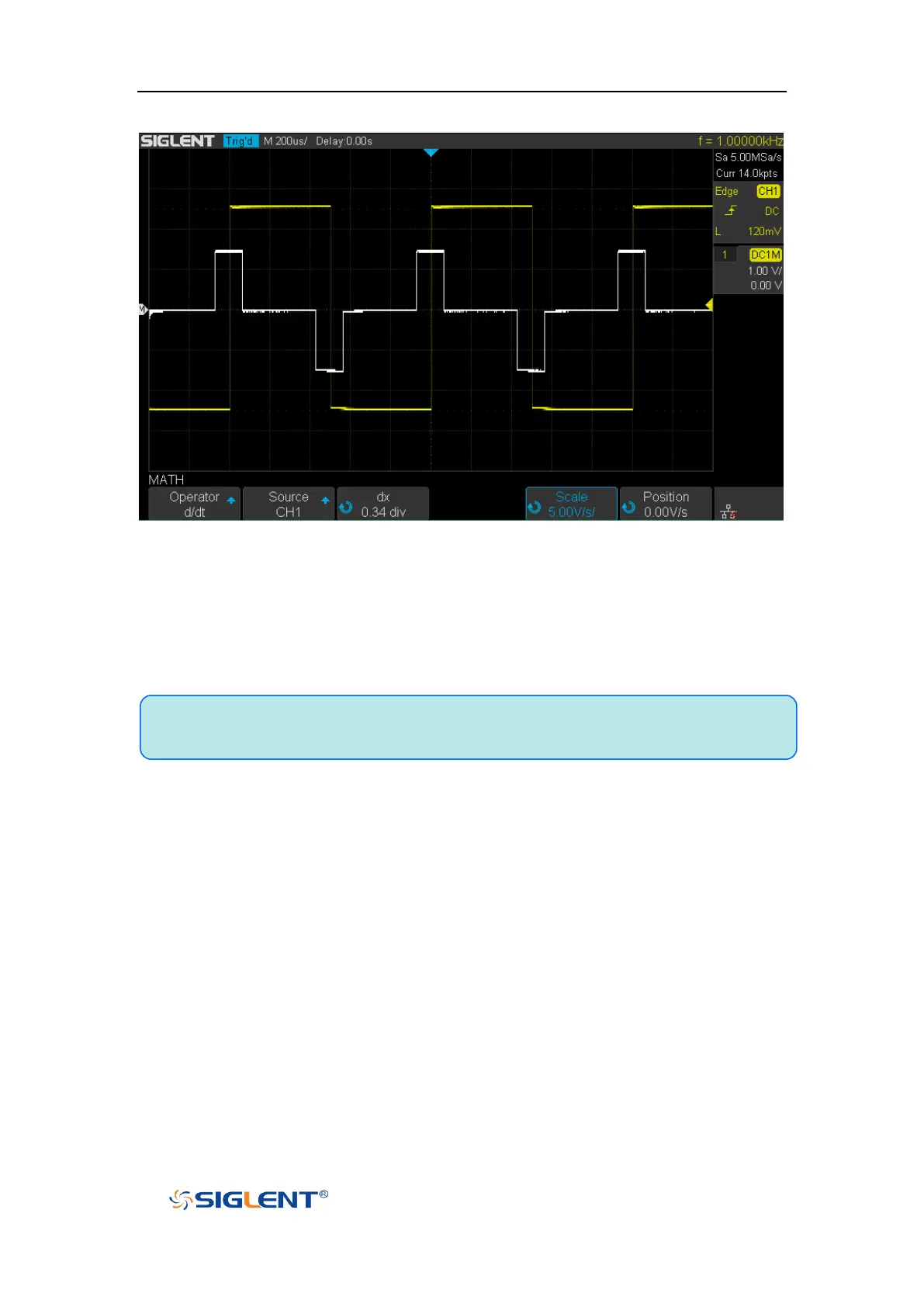

Figure 81 Difference Function Operation
You can use differentiate to measure the instantaneous slope of a waveform. For
example, the slew rate of an operational amplifier may be measured using the
differentiate function
Note: Because differentiation is very sensitive to noise, it is helpful to set
acquisition mode to Average.
