SDS1000X-E&SDS1000X-U User Manual
164

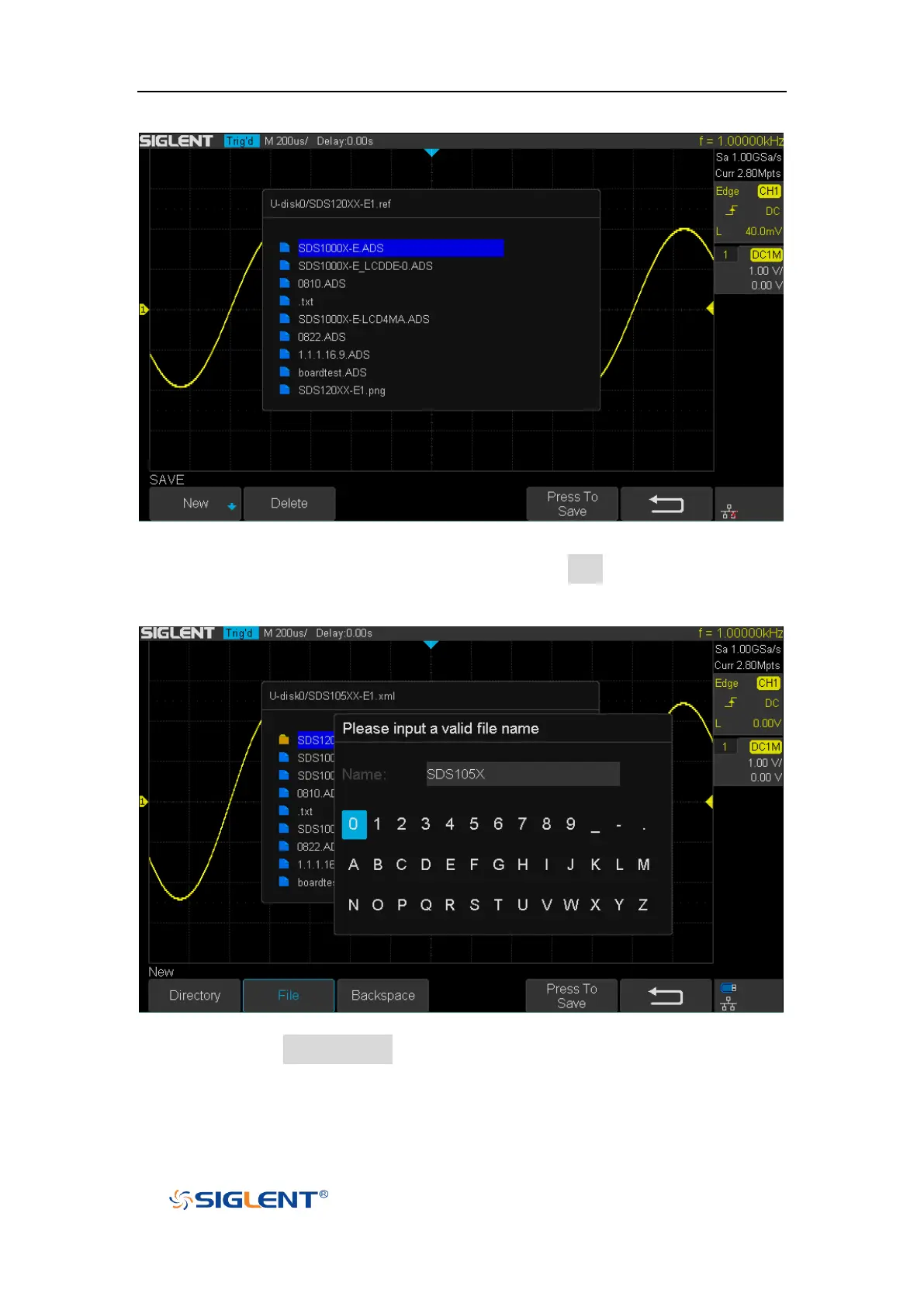

Figure 99 Select Save Location
7. After the save position is selected, press the New softkey to turn on the
interface as shown in the figure below. Refer to the descriptions in “To
Create a new file or fold” to create a new file name.
Figure 100 File Name Dialogue
8. Press the Press To Save softkey to save the current setup to the external
USB storage device.
