Simrad AI80 User Manual

User interface
Man_user_AI80_r2 25

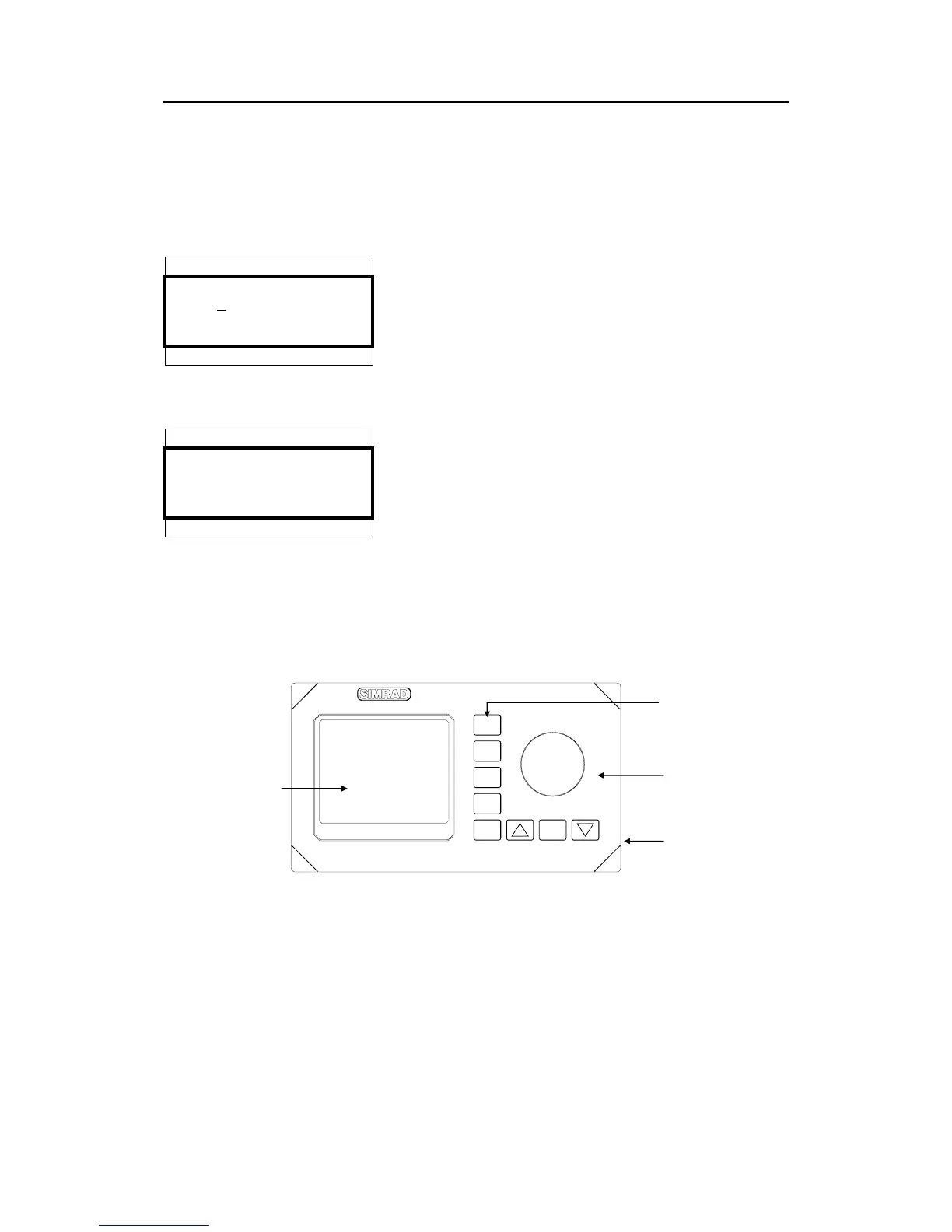

Pin code protection
The functionality in the mobile unit is protected by a PIN code. If the
user wants to edit a protected variable, e.g. Tx On/Off, he is presented
with a dialogue box. The default pin code for AI80 is 1234.
*** PIN CODE ********
**
[Cancel] [OK]
Use numeric buttons to write PIN code, press OK to
confirm. If the PIN code is correct, the user can start
editing the variable. If incorrect code is entered, a
dialogue box prompting the user to retry, is presented.
*** Wrong PIN *******
[OK] to try again
[Cancel] to cancel
Press OK to retry or CANCEL to cancel.
2.5 Optional MKD unit
The MKD unit includes the following elements:
VIEW
ALR
SMS
MENU
BACK ENTER
SIMRAD AI70
Display
The display presents information pages and menus used for data input.
Refer Optional MKD - display pages and submenus, page 26.
Rotating knob
The rotating knob is used for highlighting the different menu items on
the display.
ROTATING
KNOB
INPUT
BUTTONS
DISPLAY
DISPLAY
PAGE
BUTTONS
