Appendix B - Software setup using optional MKD
Man_user_AI80_r2 69

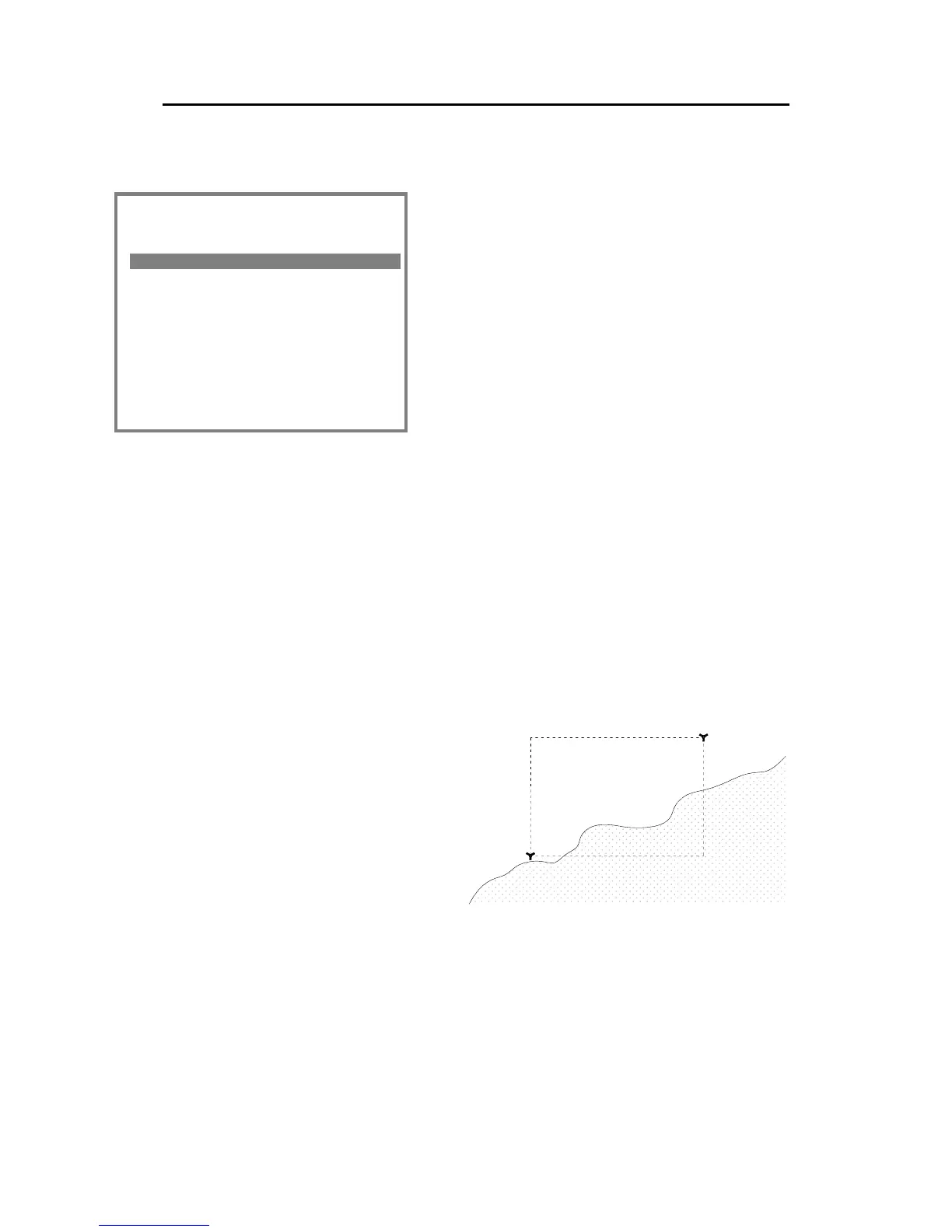

Adding a region
=== Add Region ===== P163
REGION-1
-------------------------
ChnA :143
ChnB :144
RxTxMode:TxA/TxB/RxA/RxB
TxPower :High
LAT NE :000°00´00.00N
LON NE :000°00´00.00E
LAT SW :000°00´00.00N
LON SW :000°00´00.00E
BW A :Default
BW B :Default
Z
2
The Add regions option is used for defining new
regions.
When regions are defined, the AI80 system will
automatically jump to the defined VHF channels
when the vessel enters this region.
The following parameters have to be defined:
ChnA/ChnB: VHF channels used for transmitting.
RxTxMode: Channels (A/B) used for transmitting/receiving
TxPower: Transmission power. Selectable options: High (12.5
W) and Low (2 W).
LAT NE: North-East latitude coordinates for the defined area.
LON NE: North-East longitudinal coordinates for the defined
area.
LAT SW: South-West latitude coordinates for the defined area.
LON NE: South-West longitudinal coordinates for the defined
area.
NE
SW
BW A/BW B: Bandwidth for the VHF channels used in this area.
Selectable options: Default (maximum bandwidth
allowed in this area) and Narrow (12,5 kHz).
Zone: The size of the transition area in nautical miles inside
the region.
