34 Man_user_AI80_r2
3.3 Entering static data
- Static data -------
Name: VANNINA
Call: CA122
MMSI: 136547932
IMO: 3334445
Keel: 30.5
DimA: 0
DimB: 0
DimC: 0
DimD: 0
LocDimA: 0
LocDimB: 0
LocDimC: 0
LocDimD: 0
Static data are specific ship data that do not change
from one voyage to another. In order to input static
data, select parameters by pressing EDIT and press
SHIFT to access text mode.
If MMSI number changes, the unit should be restarted,
see the Simrad AI80 Installation Manual for details.
Name: The vessel name (text).
Call: The vessel call sign (text).
MMSI: The Maritime Mobile Signal Identifier
number.
IMO: The vessel IMO number.
Keel: Height over keel. Total height of vessel in
metres.
DimA: External GPS antenna location
DimB: External GPS antenna location
DimC: External GPS antenna location
DimD: External GPS antenna location
LocDimA: Internal GPS antenna location
LocDimB: Internal GPS antenna location
LocDimC: Internal GPS antenna location
LocDimD: Internal GPS antenna location
C
D
B
A

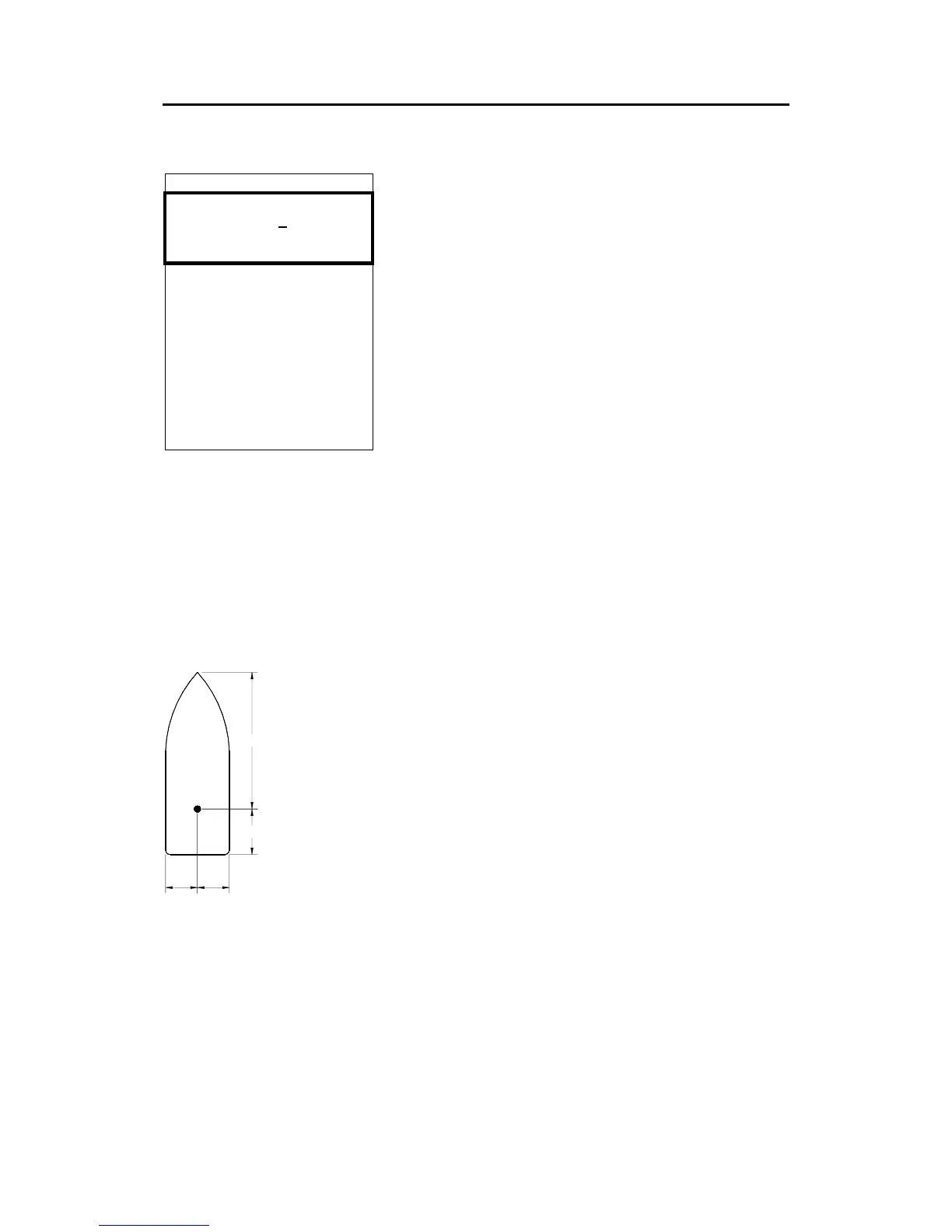

External GPS/GNSS antenna dimensions. Since the vessel's
primary GPS receiver is used as reference for the transmitted AIS
position, the physical location (horizontal plan only) of the vessel
GPS antenna should be input to the AIS in metres.
Setup by entering: DimA, DimB, DimC & DimD.
Internal GPS antenna dimensions. The AIS internal GPS receiver
is backup position sensor for the vessel primary GPS receiver. The
AIS internal GPS antenna's physical location (horizontal plane only)
also needs to be input to the AIS in metres.
Setup by entering: LocDimA, LocDimB, LocDimC & LocDimD.
