Simrad AI80 User Manual
28 Man_user_AI80_r2

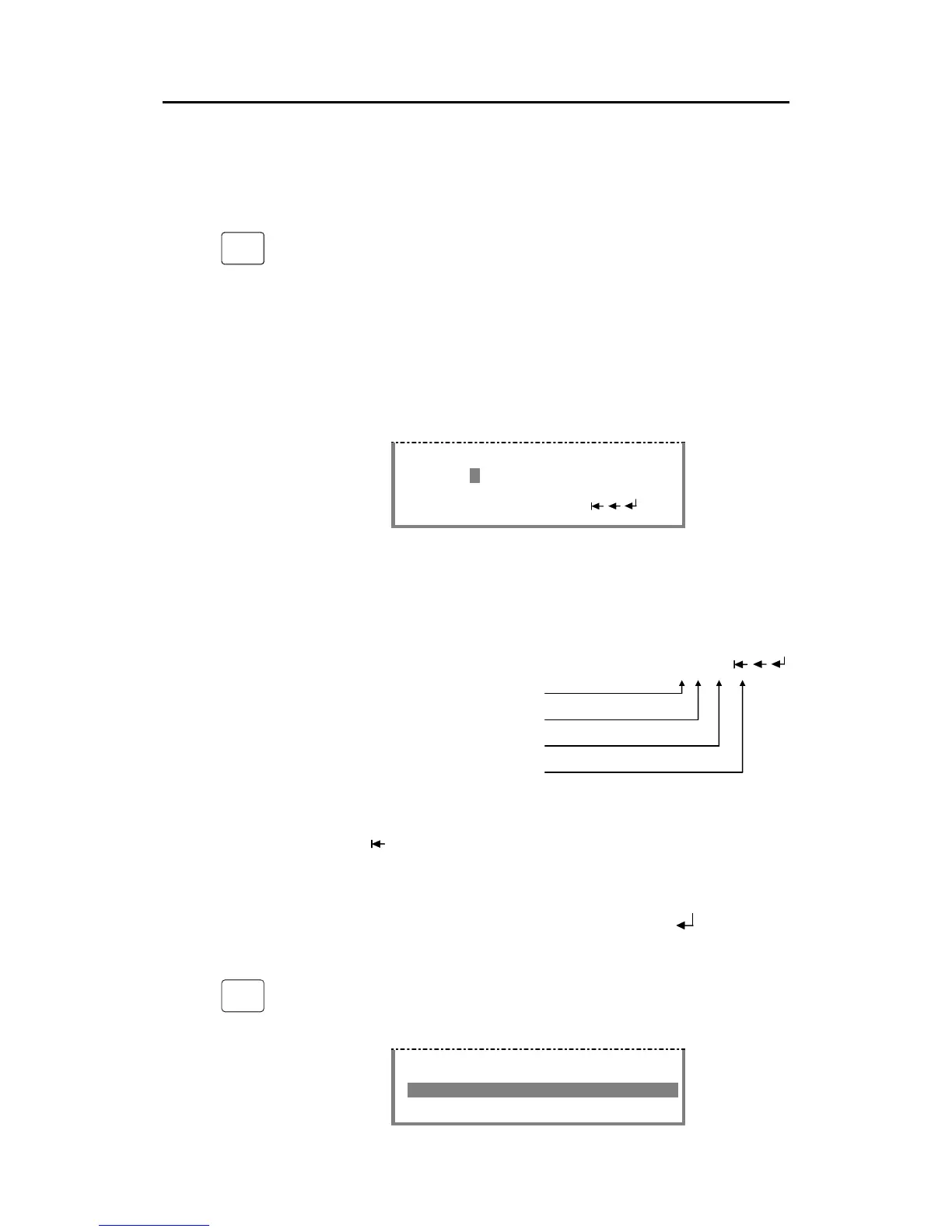

Displaying submenus
A highlighted selection in a page or a menu indicates that the selection
may be entered, either for displaying data or for entering parameter
values.
ENTER
Rotate the knob to move the highlight to the submenu that is to be
entered, and press the ENTER button to display the submenu.
Menus where no selections are highlighted are only used for
displaying information.
Entering Data
A submenu that is used for entering data will include a keyboard
function in the lower part of the display as shown on the figure.
=========================
ABCDEFGHIJKLMNO
PQRSTUVWXYZ1234
567890.,!\”@-
Use the rotating knob for moving the highlight to the selected
character, and enter the character by pressing the ENTER button. The
arrow buttons on the MKD may be used for jumping up/down a line in
the characters.
The last four keyboard symbols are used as follows:
567890.,!\”@-
Space
Clear all
Backspace
Confirm that the entry is completed
Note ! If the field where data is to be entered already has a value, the clear
all symbol must be selected before new data may be entered.
Continue entering characters until the entry is completed, and confirm
the complete entry by moving the highlight to the symbol and
pressing the ENTER button.
BACK
When all data are entered, the
BACK button is pressed to activate the
entry. The operator will be requested to accept or reject
entries/changes.
=== Save Changes ========
YES
NO
To Next Page
